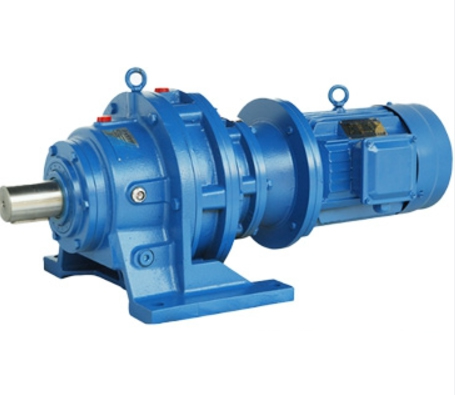

Analysis of Vibration Causes in Cycloidal Pinwheel Reducers

Cycloidal pinwheel reducers are designed to be compact and small in size due to their planetary transmission mechanism, which places the input and output shafts on the same axis, resulting in minimal overall dimensions. The operation is typically smooth, with low noise, as the cycloidal teeth engage with a larger number of contact points, providing a high overlap coefficient and contributing to the machine’s balanced mechanism. This helps keep vibrations and noise to a minimum.

Vibration Causes in Cycloidal Pinwheel Reducers:

1.Misalignment between Reducer and Motor, Causing Resonance

Analysis: If the coupling between the motor and the reducer is not installed vertically, it can lead to irregular motion or axial forces, causing resonance. This resonance can increase vibrations, especially if the resonant frequency matches the system’s natural frequency.

Solution: The motor should be reinstalled, ensuring the vertical alignment between the motor and reducer coupling. Precision instruments (such as laser alignment tools) should be used to calibrate the installation angle, avoiding resonance caused by installation errors.

2.Bending or Deformation of the Output Shaft

Analysis: If the output shaft connected to the reducer is bent or deformed during installation, it will result in uneven load distribution on the bearings and misaligned forces, which can lead to abnormal vibrations. The shaft could bend due to external forces during transport, installation, or prolonged use.

Solution: The output shaft should be inspected for concentricity. If it is found to be bent or deformed, it should be corrected or replaced.

3.Misalignment of the Transmission Shaft and Reducer Center Height

Analysis: If the installation height of the transmission shaft and the reducer’s centerline do not match, it will cause angular deviation between them, resulting in irregular force transmission and increased vibrations. Misalignment of the installation surfaces or centerlines will affect the meshing accuracy, leading to vibrations.

Solution: The installation surfaces of the reducer should be adjusted to ensure that the transmission shaft and the reducer are aligned with equal center heights.

Other Possible Causes:

1.Gear Meshing Issues: Cycloidal pinwheel reducers have many teeth engaging at the same time. If the gears suffer from wear, manufacturing defects, or poor lubrication, meshing problems may arise, causing vibrations.

Solution: Regularly check gear wear, ensure proper lubrication, and replace worn components promptly.

2.Overload Operation: If the reducer operates under overload or excessive load conditions for prolonged periods. It can cause improper meshing, excessive friction, and vibrations.

Solution: Check the operating load and ensure that the reducer operates within the specified load range.

Conclusion

Vibrations in cycloidal pinwheel reducers are typically caused by improper installation. Shaft wear, misalignment in the transmission system, or overload conditions. By ensuring precise installation of the motor and reducer. Maintaining the output and transmission shafts in good condition, and performing regular maintenance. Vibrations can be effectively reduced, extending the equipment’s service life. Proper adherence to installation guidelines and operational requirements is crucial to prevent overload and excessive wear.
