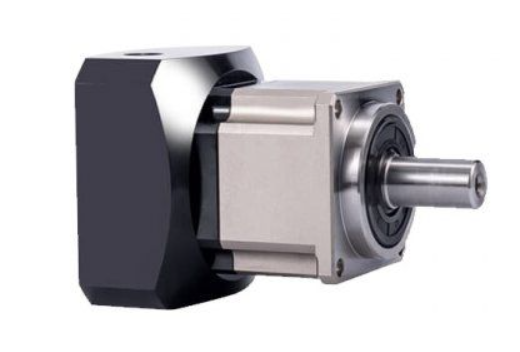

Causes of Short Circuits in Gear Reducers

Short circuits in gear reducers can result from various factors related to insulation failure, electrical overload, and structural design flaws. Understanding these causes can help prevent damage and ensure the longevity of the equipment.

1. Insulation Damage Leading to Short Circuits

Short circuits can occur when the insulation of the winding connection wires or the lead wire sleeve in a gear reducer motor is damaged. Several factors contribute to this issue:

• Overloading and Overvoltage: Excessive electrical load and voltage fluctuations can deteriorate insulation materials, leading to short circuits.
• Single-phase Operation: Operating on a single phase can cause imbalanced electrical stress, accelerating insulation wear.
• Poor Quality Insulation Materials: Inferior insulation materials are more susceptible to breakdown, especially under prolonged exposure to heat and electrical stress.

One specific issue involves polyester enameled wires, which have weak mechanical strength at high temperatures. If the varnish coating is inadequate, external dust can accumulate in the wire gaps. When subjected to electromagnetic forces, the wires vibrate and rub against each other, while the dust particles act as abrasives, gradually wearing down the insulation and leading to turn-to-turn short circuits.

2. Phase-to-phase Short Circuit Failures

Phase-to-phase short circuits typically occur due to:

• Improper Insulation Size: If the insulation dimensions do not meet the required standards, it can lead to short circuits between phases.
• Defective Insulation Pads: Poor-quality insulation materials can fail prematurely.
• Improper Placement of Interlayer Insulation Strips: Misalignment or damage during installation can weaken insulation integrity.
• Damaged Connection Wires and Insulation Bridges: If the insulation sleeve of connection wires is crushed or softened due to heat, it can lose its insulating properties and cause phase-to-phase short circuits.

3. The Role of Modular Design in Gear Reducers

Modular design has become a standard in gear reducer production, allowing for greater efficiency and cost-effectiveness. The key benefits include:

• Standardized Modules: A small variety of modular components can be combined to create multiple product variations, improving versatility while reducing manufacturing complexity.
• High Efficiency and Performance: Gear reducers with modular designs often have better performance and higher torque capacity, making them a preferred choice despite their higher cost.
• Scalability and Customization: Modular gear reducers allow for flexible configurations, making them suitable for different industrial applications.

Key aspects of modular design in gear reducer motors include:

1. Selecting the Right Model and Parameters: Choosing the appropriate gear reducer type ensures optimal performance and durability.
2. Modular Classification: Defining modules correctly is crucial for effective modular design. A higher degree of standardization leads to larger production batches and lower costs.
3. Modular Assembly: Structural integration of different modules ensures seamless operation. In China, developments in modular gear reducers have led to innovations, such as integrated braking motors and combined reduction units.

Conclusion

Proper insulation and regular maintenance are essential for preventing short circuits in gear reducers. Additionally, modular design plays a crucial role in improving efficiency, scalability, and cost-effectiveness in the industry. By focusing on insulation quality and leveraging modular designs, manufacturers can enhance the reliability and performance of gear reducer systems.
