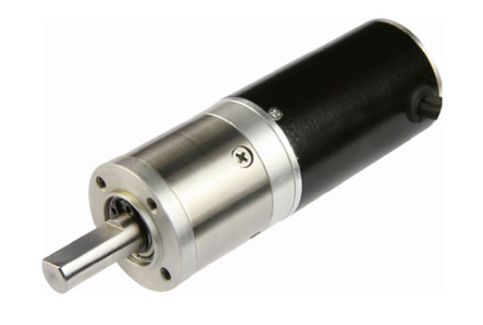

Characteristics of Brushless DC Gear Motors

Brushless DC gear motors (BLDC) combine the features of a DC motor with the efficiency of a brushless design, offering a variety of performance benefits. These motors are widely used in numerous applications, including household appliances, automotive components, medical devices, office automation, commercial equipment, industrial machinery, personal care devices, and power tools.

Key Features of Brushless DC Gear Motors

1. Quick Response and High Starting Torque:
   Brushless DC gear motors are known for their fast response time and high starting torque, making them ideal for applications requiring rapid acceleration or frequent starts and stops.
2. Constant Rated Torque from Zero Speed:
   One of the main advantages of a brushless DC motor is its ability to provide a constant rated torque from zero speed up to its rated speed, making it highly effective in applications where smooth and consistent motion is necessary.
3. Efficient Design:
   Unlike traditional brushed DC motors, which rely on brushes and a commutator to maintain constant torque, a brushless DC motor uses electronic switches (such as MOSFETs) and a position sensor to control the rotation. This eliminates mechanical wear and friction, leading to higher efficiency and longer service life.
4. Elimination of Brushes and Commutators:
   Traditional DC motors use brushes and a commutator to maintain a constant 90-degree angle between the armature and rotor magnetic fields, which can result in wear and tear over time. Brushless DC motors, on the other hand, use electronic commutation to avoid the need for brushes, resulting in reduced maintenance, less friction, and a longer operational life.

Components of a Brushless DC Gear Motor

A brushless DC gear motor typically consists of three main components:

• Motor Body: The core part of the motor, including the stator and rotor.
• Position Sensor: This sensor detects the rotor’s position and helps control the timing of the electronic switches.
• Electronic Switch Circuit: The electronic switches (commonly MOSFETs) control the current flow to the motor windings, allowing for efficient commutation.

Advantages of Brushless DC Gear Motors

1. Mature Technology and Stable Performance:
   Brushless DC gear motors have been developed and refined over the years, making them a mature and reliable technology. Their stable performance ensures they can operate efficiently in demanding environments.
2. Cost Savings:
   For businesses, using brushless DC motors can save on research and development costs as well as product costs, due to the reduced need for maintenance (no brushes to replace) and the efficiency of the motor design.
3. High Compatibility and Versatility:
   Brushless DC gear motors are highly adaptable, suitable for a wide range of applications across different industries. Their compact and efficient design allows for easy integration into many systems and products.

Applications of Brushless DC Gear Motors

Brushless DC gear motors are used in a variety of sectors, including:

• Home Appliances: Such as refrigerators, washing machines, and air conditioners.
• Automotive Components: For power steering, window lifts, and seat adjustments.
• Medical Devices: Including pumps, ventilators, and diagnostic equipment.
• Office Automation: In printers, scanners, and other automated office devices.
• Commercial Equipment: For vending machines, ATMs, and point-of-sale terminals.
• Industrial Equipment: In robotics, conveyor belts, and automated manufacturing systems.
• Personal Care: In electric shavers, hair dryers, and toothbrushes.
• Power Tools: Such as drills, screwdrivers, and saws.

In summary, brushless DC gear motors offer a combination of fast response, high efficiency, and long service life. They are increasingly popular in industries requiring compact, reliable, and cost-effective motor solutions.
