How to Choose a Coupling

How to Choose a Coupling

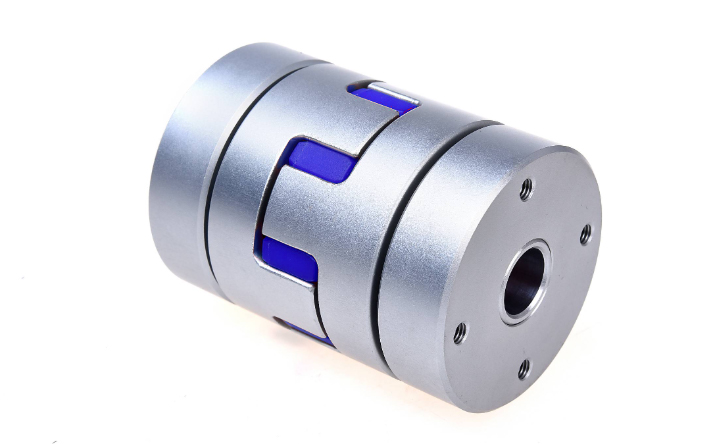

Couplings are working in various types of machinery and systems to connect components such as motors and driven machines. They must work efficiently in complex environments, where factors such as temperature, humidity, water, steam, dust, oil, acids, alkalis, corrosive substances, saltwater, and radiation can affect performance. These environmental conditions are crucial considerations when selecting a coupling.

Key Factors to Consider When Choosing a Coupling(how to choose a Coupling)

Environmental Conditions

The surrounding environment plays a critical role in coupling selection. For high temperatures, low temperatures, oils, acids, alkalis, or corrosive substances, flexible couplings with general rubber as the elastic element are not recommended. Instead, couplings with metallic elastic elements should be chosen, such as diaphragm couplings or spring couplings, which are more resistant to harsh conditions.

Load and Torque Variability

The driving torque from the power source and the load torque from the driven machine are often unstable. And the dynamic load may vary due to manufacturing errors in transmission parts or centrifugal inertial forces from imbalanced components. These variations can lead to mechanical vibration, negatively affecting machine performance, reducing the lifespan of components, and damaging instruments and controls.

Dynamic Loads and Vibration

When choosing a coupling, it is essential to consider the impact of dynamic loads, such as periodic variable loads or non-periodic shock loads. Mechanical vibration from these dynamic loads can generate additional stresses on the shaft system and other components. If the total or alternating stresses exceed the allowable limits, it can cause damage or fatigue failure.

Vibration Analysis

For torsional vibration analysis and calculation, the goal is to determine the natural frequencies of the shaft system, identify critical speeds, and calculate the torsional vibrations that generate additional loads and stresses. In some cases, vibration damping and buffering measures should be employed. The basic principle is to match the system’s mass, stiffness, damping, and interference forces effectively to avoid operating in the resonance range or to mitigate resonance during operation.

Use of High Flexibility Couplings
One effective solution to mitigate vibration and reduce the impact of dynamic loads is to use high-flexibility (or high-elasticity) couplings, such as high-elasticity flexible couplings. These couplings reduce the inherent frequency of the shaft system and use their damping properties. To reduce torsional vibration amplitude, thus ensuring smoother operation.

Summary of Coupling Selection Process:

• Consider the operating environment: Choose appropriate materials based on exposure to temperature extremes, humidity, chemicals, or corrosive agents.
• Analyze the operating conditions: Ensure that the coupling selected can withstand variable loads, dynamic stresses, and prevent vibration-induced damage.
• Perform torsional vibration analysis: Ensure the coupling is capable of absorbing dynamic loads and preventing resonance.
• Choose flexible couplings if necessary: For reducing vibration, high-elasticity couplings are particularly useful.

By comprehensively considering these factors, you can select the most suitable coupling type, design, and specification to ensure optimal performance, extend the service life of machinery, and avoid issues such as mechanical failure or inefficient operation.
