How to Design the Steering Play in a Gear-Rack Steering Mechanism

Designing the steering play in a gear-rack steering mechanism is a complex task that involves multiple interrelated factors. Steering play directly influences the handling precision, responsiveness, and comfort of the steering system. Therefore, it is crucial to design the steering play accurately. This article explores the key factors that must be considered in the design process.

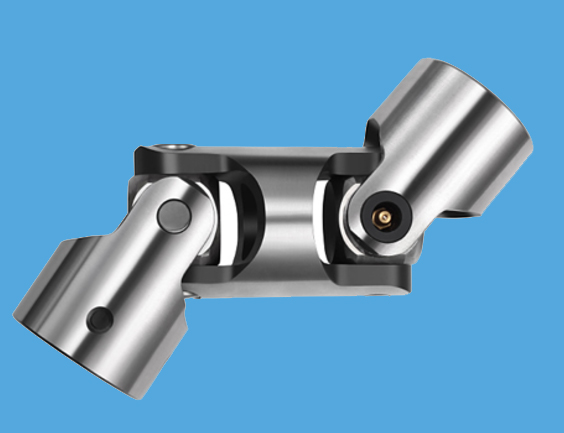

Selection of the Universal Joint (U-Joint)

The universal joint (U-joint) connects different parts of the steering system and plays a crucial role in transmitting torque and angles during steering. The selection of the U-joint is essential for the design of steering play. If the U-joint’s transmission ratio is inappropriate or the material is poorly chosen. Unnecessary play may be introduced, affecting the accuracy and comfort of the steering. Therefore, selecting the right U-joint and ensuring its compatibility with other components is the first step toward reducing steering play.

Component Manufacturing Tolerances

The precision of the components involved, particularly the gears and racks, directly impacts the size of the steering play. If manufacturing errors in the gears or rack are too large, the meshing of the teeth will not be tight, which will increase the steering play. During the design phase, it is essential to establish appropriate tolerance levels for the components and maintain strict control during manufacturing. Even with well-defined tolerances, real-world manufacturing processes can result in slight deviations due to factors like tool wear or machine inaccuracies. Therefore, stringent quality control measures must be taken during production to minimize these errors.

Assembly Errors

The assembly process itself can also introduce errors, especially when installing critical components like the gears, racks, and U-joints. Assembly errors may arise from the fitment of parts, tolerance stacking, or imperfections in the assembly process. To minimize these errors, precise assembly tools and equipment are necessary. And the assembly process must be performed according to strict standards to ensure the accurate alignment and fit of all components.

Steering System Stiffness

The stiffness of the steering system plays a significant role in determining how steering play manifests. If the system is too flexible, excessive play may become noticeable, especially under load, leading to unstable steering performance. Insufficient stiffness can cause the gear teeth to engage unevenly, increasing steering play. Therefore, it is important to design the steering system with sufficient rigidity by carefully selecting materials. And optimizing the structure to avoid excessive deformation during operation.

Tolerance Design and Practical Manufacturing

While it is possible to define tolerances during the design phase. Achieving these tolerances precisely in the final manufactured parts is often difficult. Manufacturing processes may not always meet the ideal specifications, especially for high-precision components. Despite setting tolerances, there may still be slight discrepancies between the design and the actual manufactured parts. In practice, the assembly process often requires manual adjustments or fine-tuning to eliminate these discrepancies. Typically, designers aim for the smallest possible steering play, tightening bolts during assembly and minimizing play in parts other than the U-joint to achieve the most precise fit.

Practical Adjustments and Calibration

One of the challenges in designing steering play is difficult to accurately predict the final play value at the design stage, due to the many factors that affect the system. After the product is assembled, fine adjustments are often necessary to optimize the steering play. Manual adjustments to component fitment may be required during assembly to ensure that the parts are as tightly fitted as possible. Minimizing the play and achieving the best steering performance. The goal is to reduce steering play to the minimum, typically aiming for less than 7 degrees of play in the system.

Designing the steering play in a gear-rack steering mechanism is a challenging task due to the complex interplay of various factors, including the selection of the U-joint, manufacturing tolerances, assembly errors, and steering system stiffness. During the design phase, the establishment of appropriate tolerances and the selection of suitable components can minimize play. However, in practice, it is difficult to eliminate all errors, and fine-tuning is often required during assembly. The ultimate goal is to reduce steering play as much as possible, with a target of less than 7 degrees of play being considered ideal. By addressing each of these factors. It is possible to design a steering system that delivers high precision and optimal performance.
