Improving Transmission Accuracy and Repetitive Positioning of YYC Rack and Pinion

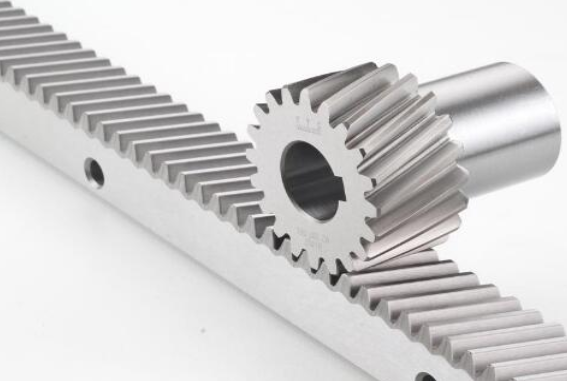

YYC rack and pinion systems offer relatively high transmission accuracy, though not as precise as ball screws. To achieve the goal of improving transmission accuracy and ensuring a repetitive positioning accuracy of no more than 0.05mm, several key factors should be considered during installation and setup.Improving Transmission Accuracy and Repetitive Positioning of YYC Rack and Pinion

1. Transmission Accuracy of YYC Rack and Pinion:

  • The typical transmission accuracy of YYC rack and pinion systems is around 0.1mm. However, with higher-quality configurations, the positioning accuracy can reach 0.03–0.05mm, and the repetitive positioning accuracy can be around 0.03mm. Backlash is typically reduced to less than 0.01mm.

2. Comparison with Ball Screws:

  • Power Transmission and Durability: Compared to ball screws, the rack and pinion system can transmit higher power. Offers longer lifespan, operates more smoothly, and has higher reliability. It ensures a constant transmission ratio and can transfer motion between two axes at any angle.
  • Long-Distance, Heavy Load Performance: For long-distance, heavy-load linear motion, ball screws may suffer from insufficient strength, which can cause machine vibrations, wobbling, or even screw bending, deformation, or fracture. In contrast, racks can be extended indefinitely over long distances and can operate at high speeds without affecting their accuracy. Ball screws cannot achieve this performance in such applications.

3. Limitations in Short-Distance Motion:

  • For short-distance linear motion, ball screws offer significantly higher precision than rack and pinion systems. Therefore, if extremely high precision is required over short distances, ball screws are typically preferred.

4. Transmission Characteristics of YYC Rack and Pinion:

  • During the transmission process, the gears in a YYC rack and pinion system transfer both motion and power between two axes. The circumferential speed can reach up to 300m/s, and the transmitted power can reach 105kW. The gear diameter can range from under 1mm to over 150mm. This makes rack and pinion systems one of the most widely used mechanical transmission types in modern machinery.

5. Types of YYC Rack Teeth:

  • YYC racks come in straight-tooth and helical-tooth types, and the rods can be either square or round. The tooth profile choice impacts the smoothness and efficiency of transmission, with helical teeth generally providing better load distribution and smoother engagement.

6. High Transmission Speed:

  • The YYC rack and pinion system enables fast transmission speeds during operation, making it suitable for applications that require rapid movement.

Key Measures to Improve Accuracy:

  1. Precise Installation: Ensure that the rack and pinion are aligned properly during installation. Any misalignment can introduce errors in transmission, leading to reduced accuracy and potential wear over time.
  2. Minimize Backlash: Backlash can degrade the accuracy of the system. To reduce backlash, consider using precision-machined racks and pinions with tighter tolerances, or use special anti-backlash designs.
  3. Quality of Components: Use high-quality materials for the racks and gears, ensuring that the teeth are well-formed and free from defects. Higher-quality components result in smoother meshing and better transmission accuracy.
  4. Proper Lubrication: Ensure that the system is properly lubricated to reduce friction and wear, which can degrade transmission accuracy over time. Lubrication also helps in reducing heat generation, improving the overall lifespan of the system.
  5. Regular Maintenance: Perform routine checks to ensure the rack and pinion are in good working condition, free from wear or damage. Regular maintenance will help preserve the system’s precision and avoid unexpected errors in positioning.

Conclusion:

To achieve a transmission accuracy of 0.05mm or better with a YYC rack and pinion system, focus on high-quality components, precise installation, and minimizing backlash. While the system excels in power transmission and long-distance motion, it may fall short in short-distance, high-precision applications where ball screws are more appropriate. By maintaining the rack and pinion system properly and selecting the right components, you can improve the overall transmission accuracy and ensure reliable performance.
