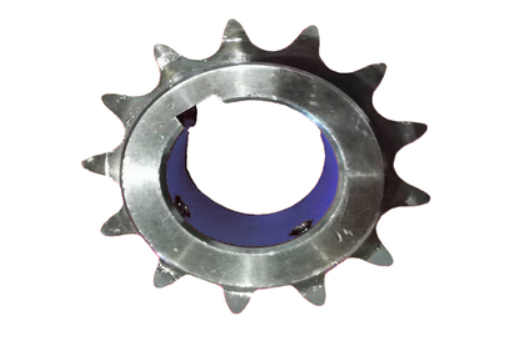

Introduction to the Materials and Properties of Sprockets

Sprockets are essential components in mechanical drive systems, and their materials significantly impact performance, durability, and cost. Common materials used for sprockets include forged steel, cast iron, and non-metallic materials. Below is an overview of each material, its characteristics, and typical applications.

1. Forged Steel

Forged steel is known for its excellent toughness and impact resistance. It can be further enhanced through heat treatment or chemical heat treatment to improve mechanical properties and increase the hardness of the teeth. Due to these properties, forged steel is ideal for sprocket production, except for situations where sprockets are large (diameters > 400-600mm) or have complex structures that require casting.

Forged steel sprockets are generally made from carbon steel or alloy steel with a carbon content ranging from 0.15% to 0.6%. Forged steel for sprocket/gear production can be classified into two types based on the hardness and processing requirements:

• Soft Tooth Surface (Hardness ≤ 350 HBS):
  This type of forged steel is used for gears that do not require high strength, speed, or precision. The gears are typically cut after undergoing normalizing or tempering treatments. These gears are easy to manufacture, cost-effective, and have high production efficiency. The precision is generally Grade 8, and it can reach Grade 7 in precision cutting.
• Hard Tooth Surface (Hardness > 350 HBS):
  This steel is used for high-speed, heavy-duty, and precision machines such as precision machine tools and aircraft engines. These sprockets require high-strength materials and high-hardness tooth surfaces (58-65 HRC). The gears are often first cut, then subjected to surface hardening treatments like carburizing, nitriding, or cyaniding, followed by precision grinding. These gears are more expensive but provide high precision, with tolerances as high as Grade 5 or 4.

The selection of alloy steel depends on the specific requirements and heat treatment methods. Alloy steels, such as 20CrMnTi and 20Cr2Ni4A, are commonly used for high-speed, heavy-duty, and compact gears in aviation applications due to their improved impact resistance, wear resistance, and high hardness.

2. Cast Steel

Cast steel offers good wear resistance and strength, making it suitable for larger sprockets and gears. However, cast steel needs to be treated with annealing and normalizing processes, and sometimes tempering as well, to improve its mechanical properties. Cast steel is commonly used for sprockets in larger sizes, where forging may not be feasible due to size limitations.

3. Cast Iron

Gray cast iron is more brittle compared to steel, with lower impact resistance and wear resistance. However, it has good anti-galling and anti-pitting properties. Sprockets made of gray cast iron are typically used in applications where the work is relatively stable, with low speeds and low power requirements. Due to its brittleness, gray cast iron sprockets are not suitable for high-load or high-impact applications.

4. Non-Metallic Materials

For lightweight, low-load, and low-precision gear transmissions, non-metallic materials such as cloth-reinforced Bakelite or nylon are commonly used for smaller sprockets. These materials help reduce noise in high-speed applications. However, for larger sprockets, steel or cast iron is still preferred to ensure sufficient wear resistance and anti-pitting properties. Non-metallic sprockets are often used where noise reduction and low operational stress are priorities.

In applications where larger sprockets are used, it is essential to ensure the tooth surface hardness is between 250-350 HBS to guarantee wear resistance and durability.
