Leaf Chains Specially Designed for Transporting Logs
The paper industry primarily uses wood as its raw material, and the very first step in the process is to handle and process the wood. In order to transport logs as efficiently as possible, manufacturers need specialized tools to assist with this task.
After the trees are felled and the branches are removed, the logs must be transported, stacked, and stored until further processing. For this purpose, manufacturers rely on specialized machinery equipped with clamping mechanisms to secure the logs during transport. The chain needs to wrap around the trunk to secure it, ensuring safety and protection during the handling process.

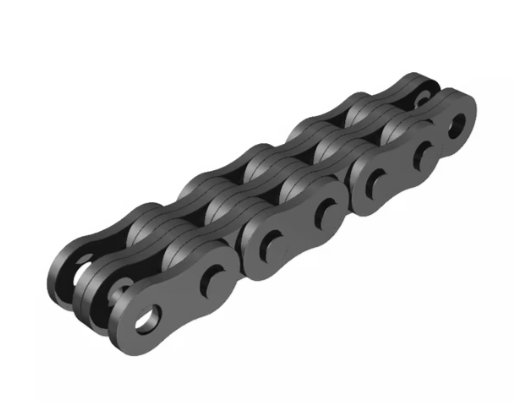

Design and Function of Leaf Chains
Leaf chains are specifically designed for maximum load and stress, enabling efficient loading of timber using specialized machinery. Our leaf chains are primarily used to secure the upper parts of the log bundles. By leveraging advanced kinematics, these chains can easily load logs and accommodate up to 15 logs at a time.
The challenge with these chains lies in the fact that every log has different dimensions, resulting in varying forces exerted on the chain. As a result, the leaf chain must have a sufficient load reserve to handle the varying weights and sizes of the logs.
Features and Benefits of Leaf Chains
Unlike standard leaf chains that feature external pressure fittings and sliding seats on the internal plates, our leaf chains incorporate sliding seats on each plate, which are securely fixed with special washers. This design ensures a more uniform load distribution across the chain, greatly improving the dynamic characteristics of the chain. As a result, the dynamic lifecycle of the leaf chain is extended by 30%.
We place a strong emphasis on material quality in our chains. For example, the pins and plates of the leaf chain are made from high-quality steel. To ensure consistency in quality and stability across all components, a continuous process monitoring system is employed during the heat treatment process to control the final strength and ductility of the chain.
Conclusion
Leaf chains are essential tools in the efficient transport and handling of logs in the paper industry. Their ability to accommodate varying log sizes while providing secure, uniform load distribution makes them a critical component for ensuring safe and efficient wood processing. With durable materials and enhanced design features, our leaf chains improve the dynamic performance of machinery and extend the lifecycle of the equipment.
