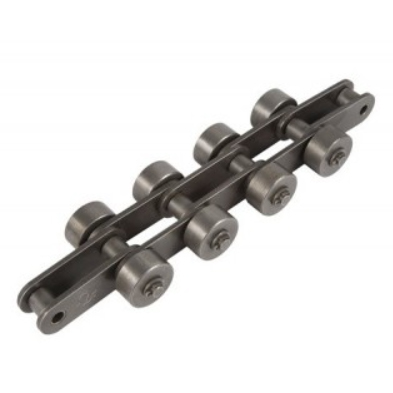

Material Selection and Processing Techniques for Chain Rollers

In industrial chain design and manufacturing, the material chosen for the chain rollers plays a critical role in the chain’s performance and lifespan. The selection of roller material depends on several factors such as the operating environment, load requirements, wear resistance, and corrosion resistance. This article provides a detailed overview of the advantages and disadvantages of common materials used for chain rollers and the associated processing techniques.

Common Materials for Chain Rollers and Their Advantages and Disadvantages

1. Polyamide 6 (PA6)
   • Code: PA6
   • Melting Point: 220°C
   • Operating Temperature: -30~80°C
   • Advantages:
     • Good elasticity, with excellent vibration dampening and noise reduction properties.
   • Disadvantages:
     • Lower fatigue strength and rigidity, and its heat resistance is inferior to PA66.
2. Polyamide 66 (PA66)
   • Code: PA66
   • Melting Point: 253°C
   • Operating Temperature: -30~80°C
   • Advantages:
     • High fatigue strength and rigidity, good heat resistance, low friction coefficient, and excellent wear resistance.
   • Disadvantages:
     • High moisture absorption, leading to poor dimensional stability.
3. Polyoxymethylene (POM)
   • Code: POM
   • Melting Point: 175°C
   • Operating Temperature: -40~110°C
   • Advantages:
     • High mechanical strength, rigidity, and fatigue strength, excellent resistance to organic solvents, repeated impacts, and good electrical properties. It also has self-lubricating properties, good wear resistance, and dimensional stability.
   • Disadvantages:
     • Vulnerable to strong acid corrosion, poor weather resistance, poor adhesive properties, and limited heat resistance (thermal decomposition and softening temperature are close).
4. Polytetrafluoroethylene (PTFE, Teflon)
   • Code: PTFE
   • Melting Point: 327°C
   • Operating Temperature: -190~250°C
   • Advantages:
     • Excellent high and low-temperature resistance, good mechanical toughness, corrosion resistance, the lowest friction coefficient, and non-stick properties.
   • Disadvantages:
     • Susceptible to creep under load conditions.
5. Other Materials
   • 10# Steel (Cold): Suitable for lighter working environments, offering high hardness and compressive strength.
   • 45# Steel (Machined): Often used in precision machining, suitable for applications requiring high mechanical performance.
   • Stainless Steel SS201, SS304: Excellent corrosion resistance, ideal for harsh environmental conditions.

Processing Techniques for Chain Rollers

The processing methods used for chain rollers directly affect their quality, precision, and service life. Common processing techniques include:

1. Cold Forging
   • Characteristics: Cold forging involves applying pressure to the metal at room temperature to shape it into the desired form. This method offers high production rates, significantly reducing material waste and lowering manufacturing costs.
   • Advantages: Cold forging improves the material’s density, reduces post-processing steps, and enhances the strength and wear resistance of the rollers.
2. Lathe Processing
   • Characteristics: Lathe processing involves using a lathe to rotate a workpiece while cutting tools remove material to achieve precise dimensions and shapes. Lathe processing offers high accuracy and stable machining quality.
   • Advantages: High machining precision, customizable dimensions, and suitable for complex shapes or high-precision roller requirements.
3. Surface Treatment
   • Polishing: Mechanical polishing is used to improve the surface finish of the roller, reducing friction and extending its service life.
   • Centerless Grinding: Centerless grinding is used for precise external diameter grinding, ensuring high dimensional accuracy and surface quality.
   • Nickel Plating, Zinc Plating: Nickel and zinc plating are common surface treatments that enhance the roller’s corrosion resistance, especially in humid or corrosive environments.

Conclusion

Choosing the appropriate material for chain rollers is crucial for ensuring the reliable operation of machinery. Each material has its own advantages and disadvantages, and the selection should be based on factors like the operating environment, load capacity, wear resistance, and corrosion resistance. Additionally, the processing techniques used affect the roller’s quality, precision, and performance.

Common materials for chain rollers include polyamide (PA6, PA66), polyoxymethylene (POM), and polytetrafluoroethylene (PTFE), each suited for different operational requirements. When selecting materials, it’s essential to balance factors such as strength, wear resistance, and environmental conditions. The right processing techniques, such as cold forging, lathe processing, and surface treatment, will further optimize the roller’s performance, ensuring longevity and reduced maintenance.

By carefully selecting materials and processing methods, manufacturers can ensure that chain rollers meet the specific needs of various industrial applications, offering reliability, durability, and cost-effectiveness.
