When long chains are used to eliminate possible chain sags, idler sprockets should be used on the transmission. Another case where an idler sprocket is required is when designing the transmission; the chain travels in multiple directions throughout the machine.
Idler sprockets
Idler sprockets
When to use the idler sprocket?
Sprocket quality testing
 |
 |
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
Idler Sprockets Factory
On a typical roller chain drive(Idler Sprockets Factory) application, there is a drive sprocket and idler sprockets. Idler sprockets are designed in conveyor applications to essentially “carry” or guide a roller chain in a straight line. And around a bend, or in a complete 360-degree directional change. If an idler sprocket fails while in use the result can be catastrophic depending on the application. Because of this it is always important to monitor the status of your idler sprockets and use a high-quality sprocket.

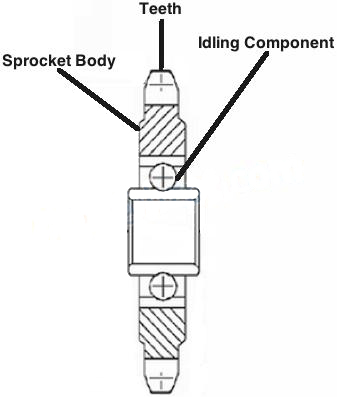

Idler Sprocket Construction
 |
|
Idler Sprocket Type
When using an idler sprocket you (Idler Sprockets Factory)want the least amount of friction with your setup. It is imperative that the utilization of high-quality components. Such as bearings, plastics, or bronze is used to eliminate as much friction as possible. Thus making your setup more effective and energy-efficient. An example of our dedication to maintaining high-quality idler sprockets on our ball bearing configuration (the most common type) we utilize sophisticated designed deep-groove ball bearings that meet or exceed ABEC 3 tolerances, use grade 10-balls, and has motor bearing rated Polyrex EM grease to ensure you get an idler sprocket with the best possible performance. Regardless of which configuration you use, we make and provide the best performing idler sprocket on the market.

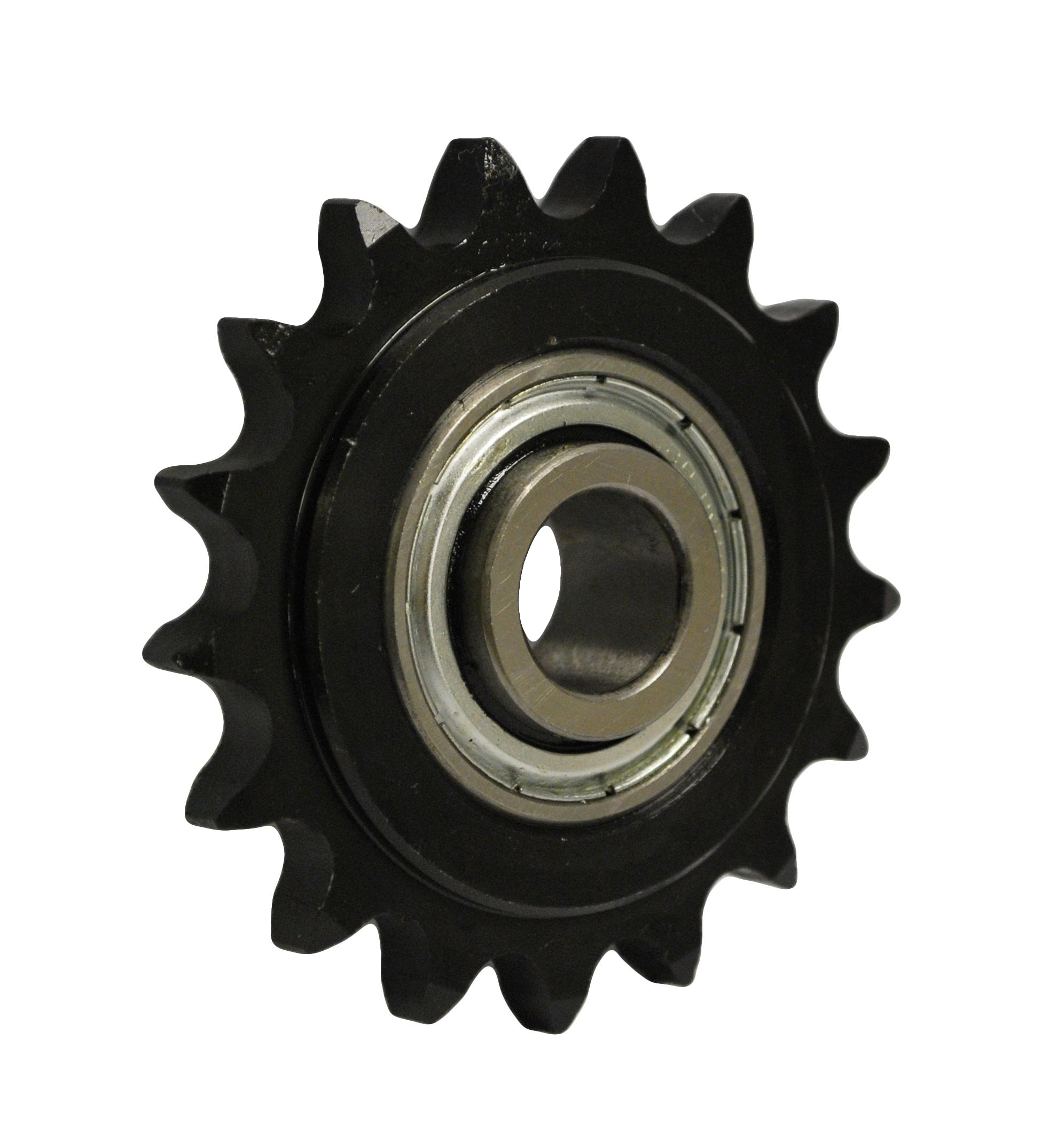

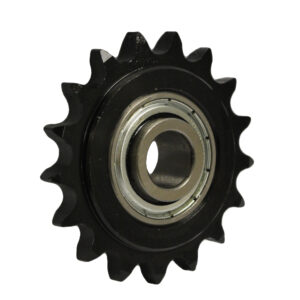

| Ball Bearing Idler Sprockets | The most standard configuration is using a precision ball bearing that is pressed and secured into the sprocket plate. These are economical and can withstand a lot of harsh and heavy-duty application requirements. |
 |
|

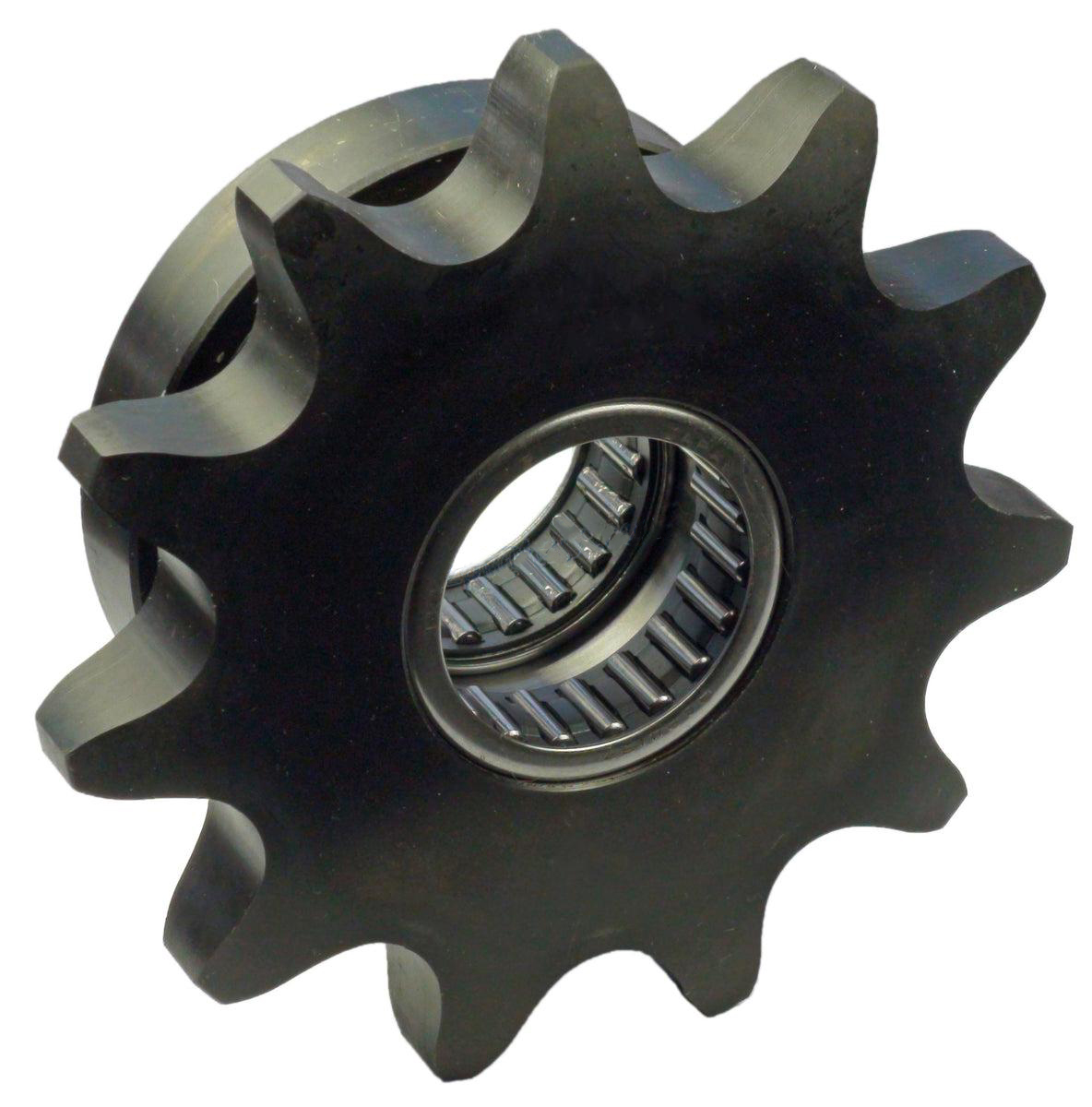

| Needle Bearing Idler Sprockets | Needle bearing idler sprockets are able to withstand higher capacities because there is more surface contact between the rotating parts. Surprisingly this design also uses less friction and is more stable when mounted onto the shaft. |
 |
|

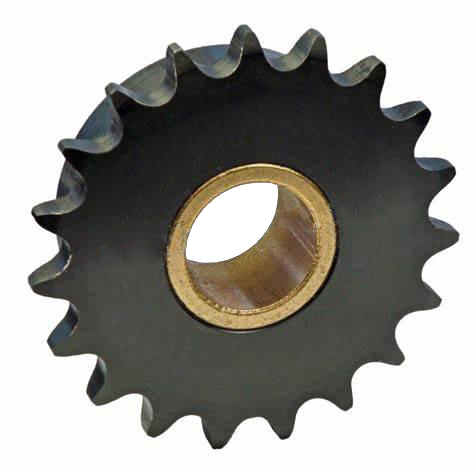

| Bronze Bearing Idler Sprockets | Using a piece of bronze as an idler sprocket configuration is probably the second most common idler sprocket configuration today. This is because of the versatility of bronze and the economic price tag. Additionally, it has no moving parts so in some applications a bronze bearing idler sprocket can last longer. |
 |
|

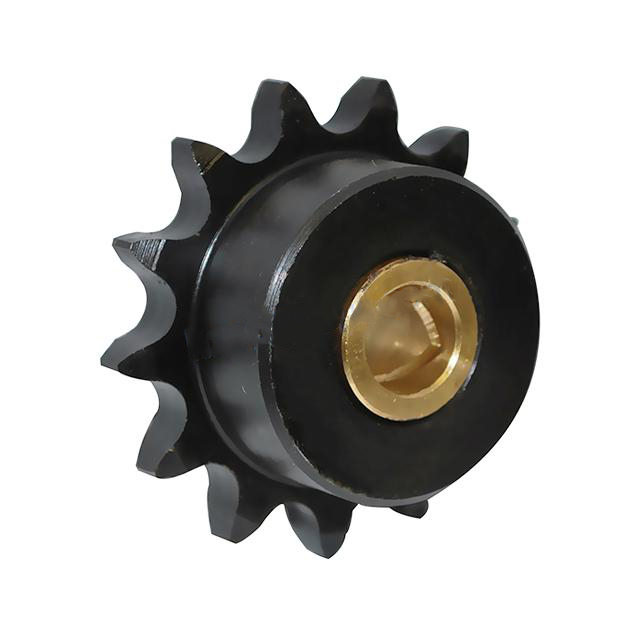

| Bronze Bushed Idler Sprockets | Bronze bushed idler sprockets are essentially the same as bronze bearing idler sprockets. |
 |
|

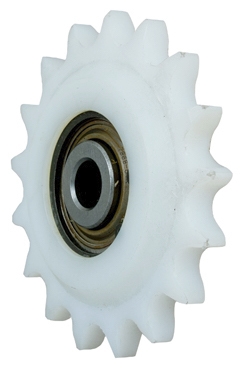

| Non-Metallic Idler Sprockets | Non-Metallic idler sprockets are manufactured using plastic and stainless-steel components so they can operate in extremely corrosive and food-grade environments. Most of these sprocket types are non-stock items but they can be made within a very short lead-time. |
 |
Idler sprockets are a type of sprocket used in industrial conveyor systems that are designed to support and guide the conveyor chain. Unlike drive sprockets, which are driven by a motor or other power source, idler sprockets do not provide power to the chain but instead help to maintain chain tension and alignment.
Idler sprockets are typically mounted on brackets or arms that keep them in place and properly adjusted. They are available in a range of sizes and configurations to match the specific requirements of an application. The teeth on idler sprockets are typically smaller than drive sprockets and are designed to engage with the chain without driving it.
One advantage of idler sprockets is that they can help to reduce wear and vibration on the conveyor chain. By maintaining proper chain tension and alignment, idler sprockets can help to extend the life of the chain and reduce maintenance costs. They also help to improve the overall efficiency and reliability of the conveyor system by reducing chain slippage and downtime.
Idler sprockets can be used in a wide range of conveyor systems, including material handling equipment, packaging machinery, and agricultural equipment. They are available in various materials, including steel, stainless steel, and plastic, depending on the specific requirements of an application.
In addition to their main function of guiding the conveyor chain, idler sprockets can also have additional features, such as seals or shields, to protect the bearings and extend their service life.
Overall, idler sprockets are an important component in many types of conveyor systems. Proper selection and maintenance can help ensure optimal performance and long service life of these sprockets.
