Leaf & Hoisting Chains

The hoisting chain comes with our standard leaf chain and multi-plate pin chains, along with our car parking chain, as well as our special leaf chain, which is designed specifically for sky stackers. All of them use high wear-resistant pin carburizing or pin-through the hardened process to improve their impact resistance.

Inquire about the leaf and hoisting chains via the inquiry form provided below. Then we will contact you and, if necessary, specify all the technical parameters, and we’ll provide you with the price of a specific product. Power-trans is a leading transmission chain manufacturer in China. We offer China leaf and hoisting chains of high wear resistance at competitive prices!

Show sidebar
Show 12 24 36

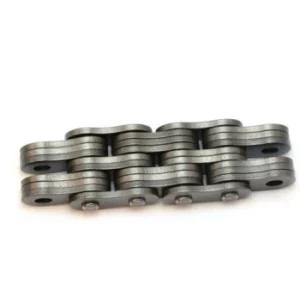

Multiple Plate Bearing Pin Chains MP Series

Multiple Plate Bearing Pin Chains LF30 MP50F2 MP50.8 MP70 MP80 MP90 MP110

Multiple Plate Bearing Pin Chains MP Series

Multiple Plate Bearing Pin Chains MP Series

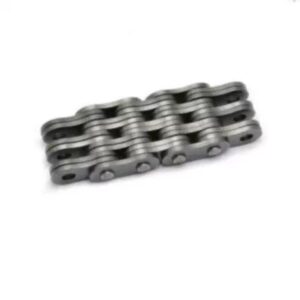

Stainless Steel Leaf Chain

Stainless Steel Leaf Chain

,

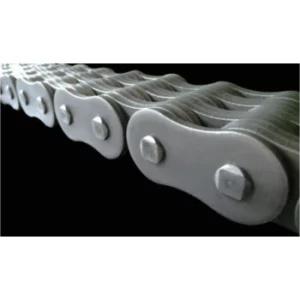

Leaf Chains For Sky Stacker

Leaf Chains For Sky Stacker LL3244/LL3266/LL3288/LL4066F5

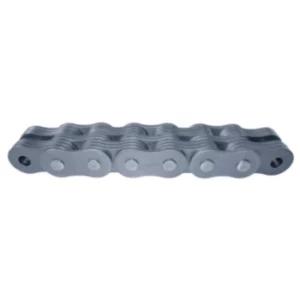

Sky Stacker Leaf Chains

Leaf Chains for Sky Stacker LH2066 LH2466 LH2844 LH2846 LH2866

Different Types of Leaf Chain

AL Series

The thickness and configuration of the plate are identical to ANSI rolling chain. The pin diameter is nearly identical to ANSI roller chain. AL leaf chain (manufactured in accordance with the standard of the ANSI B29.9 Standard) is made from American standard roller chain parts. AL Series chain is a lightweight chain that is suitable for light load lifting and machine tools.

LL Series

Leaf chain LL, made in accordance with ISO4347, DIN8152 and NFE26107 standards, is made from components of roller chains to European standards. Similar to AL chain, LL chain can be described as a light chain designed for lightweight load lifting applications, as well as machine tools.

BL Series

BL leaf chains are made up of link plates, which are more substantial and wider in the contour than AL Series link plates of the same pitch. Link plates are similar in thickness to the link plates for the next larger pitch that are found in ANSI chain rollers. In contrast, the link plates of the BL Series are thicker than those of the AL Series and share the same pin diameter with the ANSI G8 roller chains.
