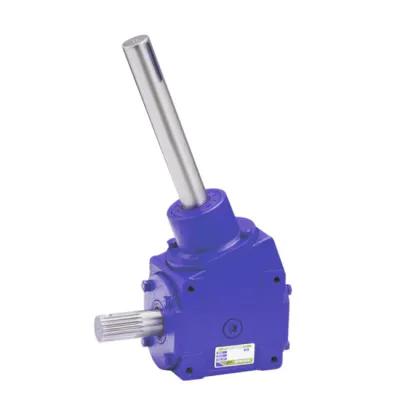

68° lawn mower 68° gearbox for 13″ Vented 68 deg
68° lawn mower 68° gearbox for 13″ Vented 68 deg
A straight bevel 68° gearbox is working on many agricultural machines like mowers, grain augers, conveyors, seeders, tillers, and so on.
(1)Rugged cast iron housings, line bored for precise gear and bearing alignment
(2)Carburized alloy steel straight or spiral gears for high durability
(3)Housing material: casting
(4)Low noise and oil tightness
(5)Good quality gets appreciated by American, Canadian, Australian, and European customers
ITEM | 68° Lawn mower 68° gearbox |
Ratio | 1:1 |
Teeth | 19/19 |
Module | 4.23 |
Power(HP) | 30 |
Rated Input | 540rpm |
Input/Output description | Optic axis/spline |
Weight(N.W) | 13.2Kg |
Key Specifications/ Special Features:
Our company is a professional manufacturer of various kinds of gearboxes, worm gearboxes, chains, and cylinders in China. We have more than 25 years of experience in the industry and have our own design department and test laboratory. We can manufacture products as per your requirements or samples with high quality. And can accept very small quantity orders as per your request.
We have got ISO9001 certification, and a strict quality control system to provide customers with high-quality products. In order to establish a modern enterprise management mode, we have fostered a number of skilled workers. Now become a people-oriented international company.
As a pioneer in this area, we are in the product mass production, sales, and service aspects and have accumulated a lot of experience. If you are interesting in any of our products, please feel free to contact us further. We will always make efforts to provide our customers with the best products and professional services.
We are specialists in gearboxes which are used in the agricultural field.
Supply PTO Shafts
Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also provided by the use of internal yokes.
If you also need the PTO shafts, contact us to get more!
Other Agricultural Gearboxes
Design The agricultural gearbox to change the output speed of a PTO drive shaft. It can works as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft’s speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
