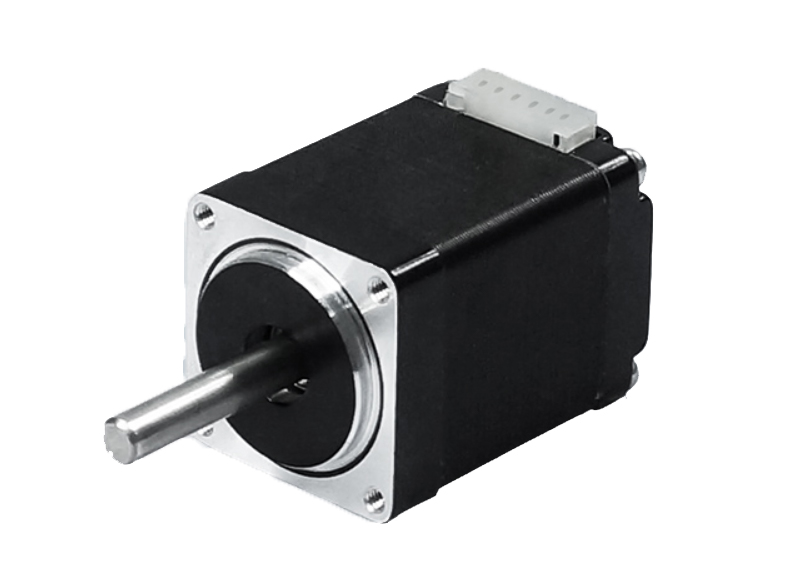

The Basic Principle of Stepper Motors
Stepper motors, as essential actuators, are crucial components in mechatronic systems and are widely used in various automation control systems. With the development of microelectronics and computer technology, the demand for stepper motors has increased significantly and they are now applied in various fields of the national economy.
A stepper motor is an actuator that converts electrical pulses into angular displacement. In simpler terms, when a stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (known as the step angle) in the designated direction. The number of pulses controls the angular displacement, allowing for precise positioning. Meanwhile, the frequency of pulses can be controlled to adjust the speed and acceleration of the motor, enabling speed regulation.
1. Pulse-Driven Operation
Stepper motors operate by receiving electrical pulse signals. Each time the motor receives a pulse, it rotates by a set angle (known as the step angle). For example, a standard stepper motor might have a 1.8° step angle, meaning that each pulse causes the motor to rotate 1.8°.
2. Precise Positioning
By controlling the number of pulses, stepper motors can achieve precise control of the rotation angle and position. This precise positioning capability makes stepper motors widely used in fields that require high precision, such as automated production lines, CNC machines, printers, and more.
3. Speed and Acceleration Control
The speed and acceleration of a stepper motor can be adjusted by controlling the pulse frequency. A higher pulse frequency results in a faster rotation speed, while the rate of pulse change determines the motor’s acceleration. Thus, stepper motors offer flexible control over speed and acceleration to meet various application requirements.
4. Types of Stepper Motors
Common types of stepper motors include:
- Unipolar Stepper Motor: Each coil has a single power line, typically simpler with less torque output.
- Bipolar Stepper Motor: Each coil has two power lines, providing higher torque but requiring a more complex driver circuit.
5. Operating Principle
A stepper motor typically consists of several stator coils and a rotor. When the stator coils are energized, they create a magnetic field, which interacts with the rotor and causes it to rotate. Each pulse signal causes a change in the current of the stator coils, generating a new magnetic field that moves the rotor by a fixed step angle.
6. Control Methods
Stepper motors can be controlled in various ways to adjust their motion. Common control methods include:
- Full-Step Drive: The motor rotates one full step for each pulse, with a step angle defined by the motor design.
- Half-Step Drive: An additional step is inserted between two full steps by adjusting the current, thus achieving finer resolution and higher precision.
- Microstep Drive: Through more sophisticated current control, microstepping allows for even finer angular increments between pulses, leading to smoother motion and higher precision.
7. Applications
Stepper motors are widely used in applications that require precise control of rotation and speed, including:
- Automated Production Lines: For accurate conveyance and positioning of components.
- CNC Machines: For precise cutting and positioning tasks.
- Printers and Scanners: To control the movement of print heads or scanning elements.
- Robotics: To control robot movement and positioning with high accuracy.
Conclusion
In summary, stepper motors, due to their precise control, quick response, and the ability to function without feedback systems, have become indispensable components in modern automation control systems. Their ability to provide accurate position control and smooth speed adjustment makes them ideal for a wide range of industrial and consumer applications.
