Transmission Chains: Types, Characteristics, and Applications

Transmission chains(Applications) are widely working in various mechanical systems due to their cost-effectiveness and efficiency. This article explores the features, advantages, and disadvantages of chain drives, belt drives, and shaft drives, especially in the context of motorcycles and industrial applications.

1. Chain Drive

Advantages:

• Low Cost: Chain drives are commonly working in motorcycles, primarily due to their low manufacturing cost.
• High Versatility: Chain drives are suitable for various types of motorcycles, especially street bikes, racing bikes, and touring bikes.
• High Efficiency: Chain drives have high mechanical efficiency because they don’t experience slip losses like belt drives.
• Shock Absorption: During engine braking, the chain can absorb some of the vibrations, improving ride comfort.

Disadvantages:

• Frequent Maintenance: Chains accumulate dirt, dust, and grease over time, requiring regular cleaning and lubrication.
• Wear and Stretch: With use, chains can wear down and elongate, reducing transmission efficiency.
• Noise: Chain drives typically produce more noise than belt drives.

Maintenance: Chains need regular checks, cleaning, and lubrication. If the chain becomes too loose or too tight, adjustments should be made promptly to avoid excessive wear or even chain breakage.

2. Belt Drive

Advantages:

• Smooth Power Transmission: Belt drives provide smoother power delivery compared to chain drives, making them ideal for applications requiring stable and smooth power output.
• Low Maintenance: Belt drives generally require less maintenance than chains, making them easier to maintain.

Disadvantages:

• Lower Efficiency: At high speeds and under heavy loads, belt drives tend to have lower efficiency than chain drives.
• Vulnerability to Aging: Belts, typically made from rubber, are more susceptible to environmental aging, reducing their lifespan.
• Difficult Replacement: Replacing a belt is typically more complex and time-consuming than replacing a chain.

3. Shaft Drive

Advantages:

• Virtually Maintenance-Free: Shaft drives do not require frequent adjustments and won’t elongate like chains, making them low-maintenance.
• High Efficiency: Shaft drives are more efficient than belt drives and eliminate the risk of slipping.
• Long Lifespan: Shaft drives are highly durable and suitable for high-end motorcycles that demand low-maintenance, long-lasting performance.

Disadvantages:

• High Manufacturing Cost: Shaft drive systems are expensive to produce due to the complexity and precision required in their design and manufacture.
• Heavier Weight: Shaft drives are typically heavier compared to chain or belt drives.
• Less Smooth Power Transfer: Although shaft drives provide efficient power transfer, they may result in greater vehicle vibration, especially during acceleration or deceleration, due to the torque reaction effect.

4. Roller Chains

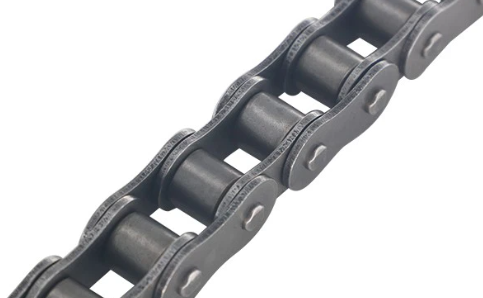

Construction: Roller chains consist of inner and outer link plates, pins, bushings, and rollers. The rollers engage with the teeth of sprockets, reducing friction and improving efficiency. Advantages: Roller chains are efficient for transmitting high power and are commonly used in bicycles, motorcycles, and industrial machinery where high-load transmission is necessary. Applications: Roller chains are used in various industries, including transportation, manufacturing, and material handling systems.

5. Chain Drive Specifications

• A Series: Chains that conform to American standards.
• B Series: Chains that follow European (mainly British) standards.
• Pitch Size: Pitch is the primary parameter for roller chains. A larger pitch allows for larger components, which increases the power capacity of the chain.

6. Chain Drive Design Considerations

• Chain Length: The length of a chain is expressed in the number of links (Lp). It is better to use an even number of links for smoother connection, as odd numbers may require a transitional link.
• Initial Slack: When installing a chain, the slack side should have an appropriate initial sag, approximately 1%–2% of the center distance between the sprockets.
• Sprocket Teeth Number: When designing a chain drive system, it is recommended that at least five teeth of the sprocket engage with the chain at any given time to ensure stable power transfer.

7. Chain Cleaning and Lubrication

Chains require regular cleaning and lubrication to avoid dirt buildup and extend their lifespan. A chain cleaning tool and low-volatility cleaning fluids are often used for cleaning the external grease and internal contaminants. Regular lubrication helps reduce wear and improve transmission efficiency, with the type of lubrication (manual, drip, oil bath, or forced feed) depending on the application.

Chain Drives in Industrial Applications

In industrial settings, chain drives are often used for power transmission in conveyor systems, packaging machines, food and beverage production lines, and pharmaceutical and textile industries. They offer high torque transmission over long distances, with various designs tailored for low friction, high temperature, and chemical resistance.

Roller chains, in particular, are used in heavy-duty applications, where durability and high load-bearing capacity are crucial. Multi-row chains can be used to transmit even greater power, although increasing the number of rows can affect the load distribution.

Conclusion

Chain drives, belt drives, and shaft drives each have their own advantages and disadvantages. In motorcycle applications, chain drives are favored for their low cost, high efficiency, and adaptability, making them the preferred choice for most motorcycles, except for scooters. Belt drives are ideal when smoothness is more important than high power, while shaft drives are used in high-end models where durability and low maintenance are prioritized.

The selection of the most suitable transmission system depends on the specific application requirements, such as power output, efficiency, durability, and cost considerations. Regular maintenance and correct installation are critical to ensuring that these systems continue to function optimally over time.
