01-229 Snow Plow Gearbox For Spreader

01-229 Snow Plow Gearbox For Spreader

If the gearbox on your snow plow has been damaged, replace it with this gearbox. This gearbox will have your snow plow like new again.

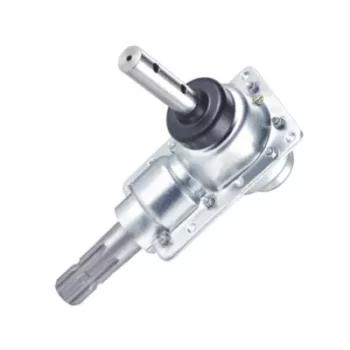

Spreader Snow Plow Gearbox

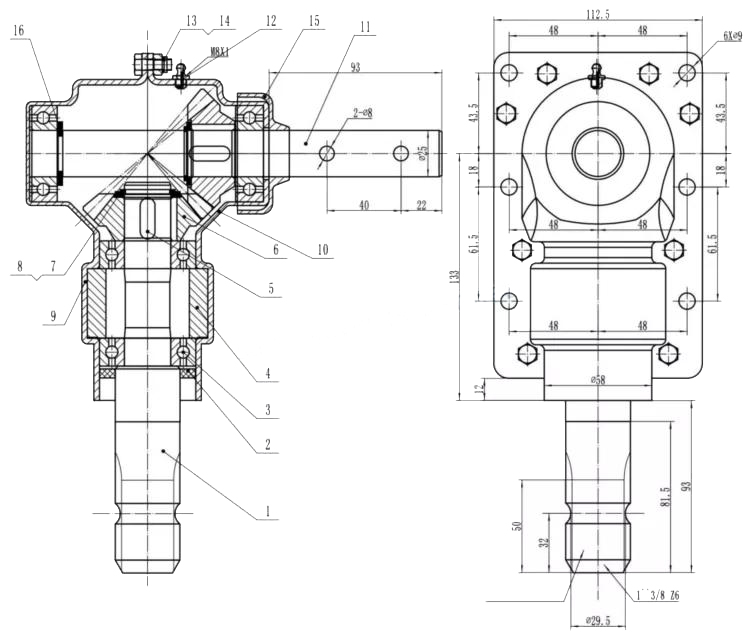

1-3/8″ input shaft 6 spline The shaft is 3-1/2″ long 1″ output shaft Shaft length: 3″ Holes in output shaft: 1-1/2″ center to center 6 mounting holes OL: 11″ OH: 9″ Gear ratio: 1:1 Bolt hole spacing: 2-3/8″ center to center on the long side Bolt hole spacing 3-3/4″ center to center on the width Gearbox has a zirk

Configurations:
spiral bevel gears, bearings, housing, oil sealing, input and output shafts, etc.
Use Detail:
Gear Oil: HD320~680
Max Revolutions: 1500 rpm
Ambient Temperature: -20ºC~+80ºC, special temperature, consult our engineers
Noise Level: less than 80 dB
Temperature Level: less than 50ºC
Test Equipment: noise meter and infrared thermometer

Customized service of agricultural gearbox

Housing
Made in shell-cast aluminum or in high mechanical resistance cast iron.
Gears
Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly.
Shafts
Made in steel UNI 16 CRN4.They are coupled with splined gears and are designed to stand the torque values stated in the catalog.
Torques
The torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous duty cycles. Torques under intermittent working conditions can be exceeded by 20%.
Lubrication
SAE 90 gear oil must be put in the PTO gearbox prior to use-please note we do not supply the gear oil and will not accept responsibility for customers not putting oil in. Change the oil after the first 60-80 hours and then every 12 months or 1500 hours whichever falls first.
Maintenance
Please check the oil level via the special oil window every 50 hours. Working temperatures should not exceed 120 degrees Celcius under a continuous duty cycle.

We Also Supply PTO Shafts

The agricultural gearbox and PTO shaft are two components of a tractor that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connected by yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a wide range of PTO shafts for sale. Contact us now to get more info!

Other Agricultural Gearboxes

We provide agricultural solutions to global agricultural machinery manufacturers and dealers through a full range of spiral bevel gearboxes, straight bevel gearboxes, straight gearboxes, and drive shafts. Products such as sheet metal, hydraulic cylinders, motors, tires, worm gearboxes, and worm operators can be customized according to customer requirements. Power-trans tech machinery has established a perfect quality management system and sales service network to provide customers with high-quality products and satisfactory services. Our agricultural gearboxes are sold to 40 provinces and cities in China and 36 countries and regions in the world. Our main market is the European market.

Feed Mixer Gearbox	Post Hole Digger Gearbox	Agricultural Sprayer Gearbox	Flail Mower Gearbox	Cutter Bars Gearbox
Gearbox For Hay Tedders	Rotary Mower Gearbox	Rotary Cutter Gearbox	Hydraulic Drive Gearbox	Lawn Mower Gearbox
Fertilizer Spreader Gearboxes	Agitators Gearbox For Sewage	Angular Gearbox	Irrigation Reels Gearbox	Manure Spreader Gearbox
Micro Tiller Gearbox	Parallel Gearbox	Snowblower Gearbox	Round Baler Gearbox	Rotary Tiller Gearbox

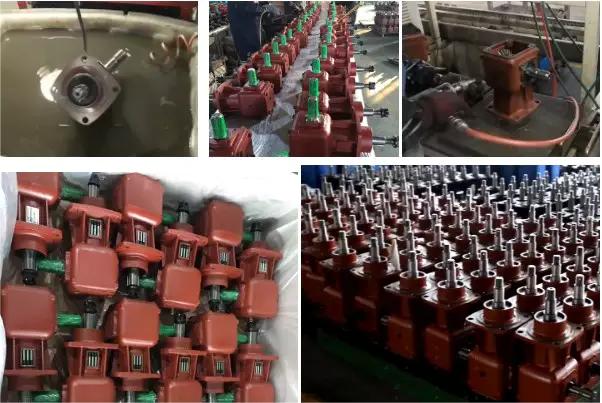

Agricultural Gearbox Production Workshop

Establish in 1997. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are working in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. Export more than 95%  products to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy, and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
