06B-2 Metric Roller Chain Sprockets

We stock a wide range of metric roller chain sprockets(06B-2 Metric Chain Sprockets) right off the shelf for immediate delivery. Our metric sprockets are typically supplied as standard steel with heat-treated teeth (up to 30 teeth) and stock bores. When a sprocket has heat-treated hardened teeth, it typically lasts longer and performs better than those that don’t.
All of our metric roller chain sprockets are manufactured to ISO or DIN specifications so they directly interchange with other brands of metric chain sprockets. This also ensures the proper contact between the roller chain and sprocket, which will prevent premature wear.
06B-2 Metric Chain Sprockets

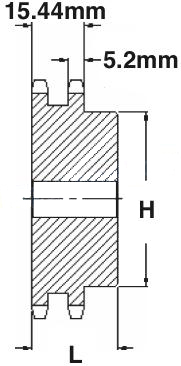

06B-2 B-Hub Sprockets:

06B-2 Metric Chain Sprockets

Sprocket Size
Tooth Count
Pitch Diameter
Stock Bore
Maximum Recommended Bore
Hub Diameter (H)
Length Thru Bore (L)
Weight (KG)
D06B12 12 36.80mm 10mm 16mm 25mm 25mm 0.16
D06B13 13 39.79mm 10mm 18mm 28mm 25mm 0.20
D06B14 14 42.80mm 10mm 18mm 31mm 25mm 0.25
D06B15 15 45.81mm 10mm 20mm 34mm 25mm 0.29
D06B16 16 48.82mm 12mm 20mm 37mm 30mm 0.34
D06B17 17 51.83mm 12mm 24mm 40mm 30mm 0.39
D06B18 18 54.85mm 12mm 25mm 43mm 30mm 0.45
D06B19 19 57.87mm 12mm 28mm 46mm 30mm 0.52

D06B20

20 60.89mm 12mm 30mm 49mm 30mm 0.59
D06B21 21 63.91mm 12mm 30mm 52mm 30mm 0.68
D06B22 22 66.93mm 12mm 35mm 55mm 30mm 0.75
D06B23 23 69.95mm 12mm 38mm 58mm 30mm 0.80
D06B24 24 72.97mm 12mm 39mm 61mm 30mm 0.84
D06B25 25 76.00mm 12mm 40mm 64mm 30mm 0.89
D06B26 26 79.02mm 12mm 42mm 67mm 30mm 0.91
D06B27 27 82.05mm 12mm 45mm 70mm 30mm 1.00
D06B28 28 85.07mm 12mm 48mm 73mm 30mm 1.07
D06B29 29 88.10mm 12mm 50mm 76mm 30mm 1.14
D06B30 30 91.12mm 12mm 52mm 80mm 30mm 1.22
D06B32 32 98.18mm 16mm 52mm 80mm 30mm 1.30
D06B35 35 106.26mm 16mm 52mm 80mm 30mm 1.42
D06B36 36 109.29mm 16mm 60mm 90mm 30mm 1.58
D06B38 38 115.35mm 16mm 60mm 90mm 30mm 1.72
D06B40 40 121.40mm 16mm 52mm 80mm 35mm 1.81
D06B42 42 127.46mm 19mm 60mm 90mm 35mm 2.05
D06B45 45 136.55mm 19mm 60mm 90mm 35mm 2.35
D06B48 48 145.64mm 19mm 60mm 90mm 35mm 2.75
D06B52 52 157.75mm 19mm 60mm 90mm 35mm 3.13
D06B57 57 172.91mm 19mm 60mm 90mm 35mm 3.47
D06B60 60 182.00mm 19mm 60mm 90mm 35mm 3.78
D06B68 68 206.24mm 19mm 60mm 90mm 35mm 4.43
D06B70 70 212.30mm 19mm 60mm 90mm 35mm 4.56
D06B72 72 218.37mm 19mm 60mm 90mm 35mm 4.89
D06B76 76 230.49mm 19mm 60mm 90mm 38mm 5.67
D06B84 84 254.74mm 19mm 60mm 90mm 38mm 7.10
D06B95 95 288.08mm 25mm 62mm 95mm 38mm 8.64
D06B96 96 291.11mm 25mm 62mm 95mm 38mm 8.75
D06B114 114 345.68mm 25mm 62mm 95mm 38mm 11.12

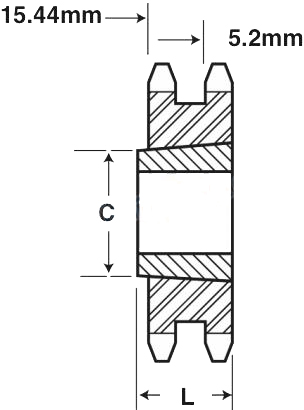

06B-2 Taper Bushed Sprockets:

Sprocket Size
Tooth Count
Pitch Diameter
Bushing Number
Maximum Bushing Bore
(L)
(C)
Sprocket Weight (KG)
Bushing Weight (KG)
D06BTB19 19 57.87mm 1008 25.40mm 22.23mm 46.43mm 0.6 0.14
D06BTB20 20 60.89mm 1008 25.40mm 22.23mm 49.20mm 0.8 0.14
D06BTB21 21 63.91mm 1008 25.40mm 22.23mm 52.39mm 1.4 0.14
D06BTB22 22 66.93mm 1008 25.40mm 22.23mm 55.56mm 1.7 0.14
D06BTB24 24 72.97mm 1210 31.75mm 25.40mm 61.91mm 1.8 0.27
D06BTB25 25 76.00mm 1210 31.75mm 25.40mm 61.91mm 1.9 0.27
D06BTB26 26 79.02mm 1210 31.75mm 25.40mm 66.68mm 2.0 0.27
D06BTB30 30 91.12mm 1610 41.28mm 25.40mm 79.38mm 1.8 0.41
D06BTB32 32 97.18mm 1610 41.28mm 25.40mm 82.55mm 2.0 0.41
D06BTB35 35 106.26mm 1610 41.28mm 25.40mm 82.55mm 2.3 0.41
D06BTB38 38 115.34mm 1610 41.28mm 25.40mm 82.55mm 2.5 0.41

D06BTB40

40 121.40mm 1610 41.28mm 25.40mm 82.55mm 2.9 0.41
D06BTB45 45 136.55mm 1610 41.28mm 25.40mm 82.55mm 3.2 0.41
D06BTB48 48 145.64mm 1610 41.28mm 25.40mm 92.08mm 3.5 0.41
D06BTB54 54 163.82mm 1610 41.28mm 25.40mm 92.08mm 3.9 0.41
D06BTB57 57 172.91mm 1610 41.28mm 25.40mm 92.08mm 4.1 0.41
D06BTB60 60 182.00mm 1610 41.28mm 25.40mm 92.08mm 4.9 0.41
D06BTB70 70 212.30mm 1610 41.28mm 25.40mm 92.08mm 6.3 0.41
D06BTB76 76 230.49mm 1610 41.28mm 25.40mm 92.08mm 6.8 0.41
D06BTB95 95 288.08mm 1610 41.28mm 25.40mm 92.08mm 6.9 0.41
