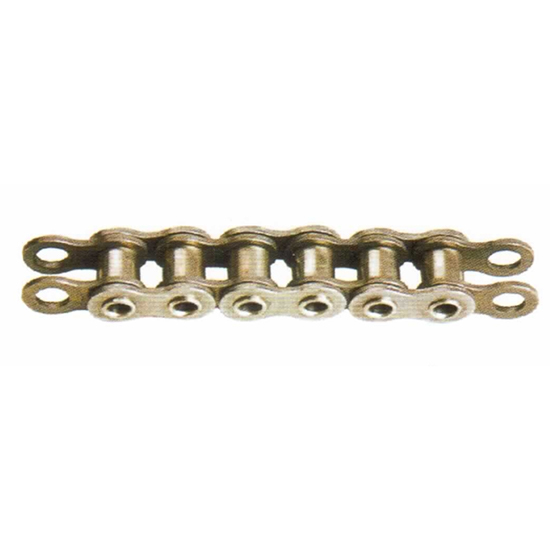

08BHPFSS stainless steel hollow pin chains
Applications of the Mentioned Chain Model
The stainless steel hollow pin chain finds various applications in material handling scenarios:
- Conveyor systems in manufacturing plants
- Automated material handling equipment
- Food processing and packaging
- Pharmaceutical and chemical industries
- Warehouse and distribution centers

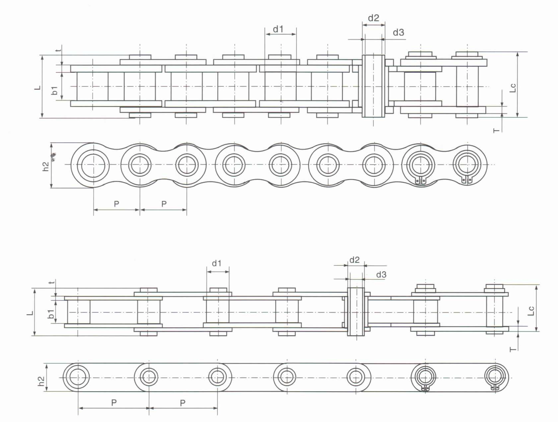

Diameter Data
Chain No. | Pitch | Bush
diameter |
Width between inner plates | Pin
diameter |
Pin
length |
Inner
plate depth |
Plate
thick ness |
Breaking
Load |
Weight
per meter |
Type | ||
P | d1
max |
b1
min |
d2
max |
d3
min |
L
max |
Lc
max |
h2
max |
t/T
max |
Q
min |
q | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg/m | ||
08BHPFSS | 12.700 | 8.51 | 7.75 | 6.55 | 4.50 | 16.4 | 17.6 | 11.80 | 1.50 | 7.8/1773 | 0.57 | A |
40HPSS | 12.700 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 7.7/1750 | 0.55 | A |
50HPSS | 15.875 | 10.16 | 9.40 | 7.03 | 5.13 | 20.7 | 21.9 | 15.09 | 2.00 | 14.0/3182 | 0.92 | A |
60HPSS | 19.050 | 11.91 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 18.00 | 2.40 | 16.8/3818 | 1.31 | A |
*12BHPSS | 19.050 | 12.07 | 11.68 | 6.50 | 4.00 | 21.6 | 22.8 | 15.90 | 1.80 | 16.5/3750 | 1.10 | A |
80HPSS | 25.400 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.00 | 3.00 | 35.0/7955 | 2.29 | A |
C2040HPSS | 25.400 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 7.7/1750 | 0.47 | B |
C2050HPSS | 31.750 | 10.16 | 9.40 | 7.22 | 5.12 | 20.5 | 21.8 | 15.00 | 2.00 | 14.3/3250 | 0.77 | B |
C2060HPSS | 38.100 | 11.91 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 17.00 | 2.40 | 16.8/3818 | 1.03 | B |
C2080HPSS | 50.800 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.00 | 3.00 | 35.0/7955 | 1.83 | B |
*HB50.8SS | 50.800 | 30.00 | 10.50 | 11.40 | 8.20 | 27.4 | 28.6 | 26.00 | 3.00 | 35.0/7955 | 2.60 |
Structural Design of Stainless Steel Hollow Pin Chain
The design of the stainless steel hollow pin chain involves several key elements:
- Shape and dimensions of stainless steel links
- Connection method and structural design of chain links
- Internal structure and design considerations of the hollow chain
