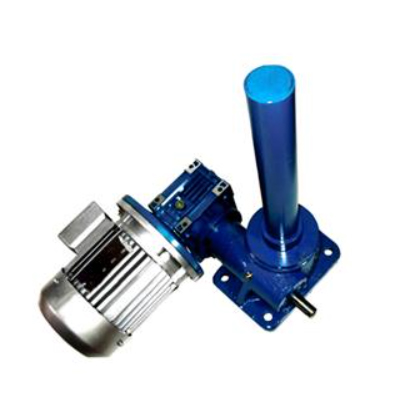

100kN motorized screw jacks with nut
100kN motorized screw jacks
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works, Energy & Mining
Weight (KG): 29 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 20NM
Input Speed: 1500RPM
Output Speed: 300RPM
Load capacity: 100 kN
Screw design: Upright rotating screw
Stroke: 500 MM
Gear Ratio: 1/36
Screw Size: Tr 55×9
Accessories: 3kw brake motor, flange blocks
Certification: ISO9001:2008,CE
Packaging Details: Standard Exporting Plywood Cases.
Port: Hangzhou
Features
100kN motorized screw jacks with nut for electric jacking system. Cubic electric lifting screw jack load capacity 100 kN, self locking ACME screw diameter 55mm, pitch 9mm, upright mount, rotating screw type, stroke 500mm, ratio 36:1 (one rpm input travel length 0.25mm), plain end, right shaft and left motor adapter, attached bronze lifting nut, double bellows boots, flange block bearing, and 4 kw brake motor with B14 motor flange.
Note: The dark gray figures in the tables indicates operational restrictions due to thermal limits. Static only (dynamic not permitted). Selection of screw jacks using these figures should only be carried out in consultation with our engineers. When your selection is made within the areas dark gray, you will need to reduce duty cycle or choose larger model screw jacks in order to allow effective heat dissipation.
1.* Conditions: Duty cycle 20%/h or 30%/10min, 20 °C ambient temperature.
2.* Gear Ratios: H: high ratio, L: slow ratio.
3.* Nm: Input torque required, kW: Input power required.
Drawing DimensionsAbout 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact Power-trans directly.
