10B Gripbelt Sheaves with Split Taper Bushings for Use with All “A” and “B” Section Belts

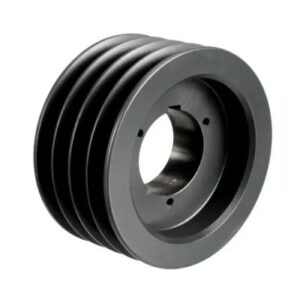

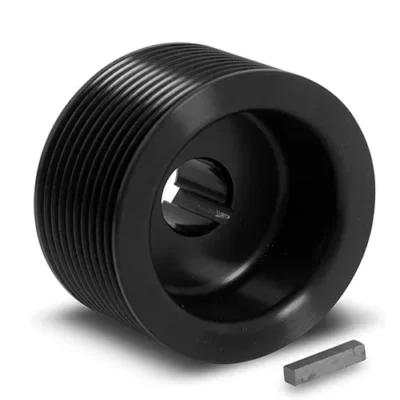

10B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 5.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with Q2, R2, or U0 taper bushings, which we also stock. Most of our ten-groove 10B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
10B series pulleys(10B Gripbelt Sheaves) are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 5.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with Q2, R2, or U0 taper bushings, which we also stock. Most of our ten-groove 10B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

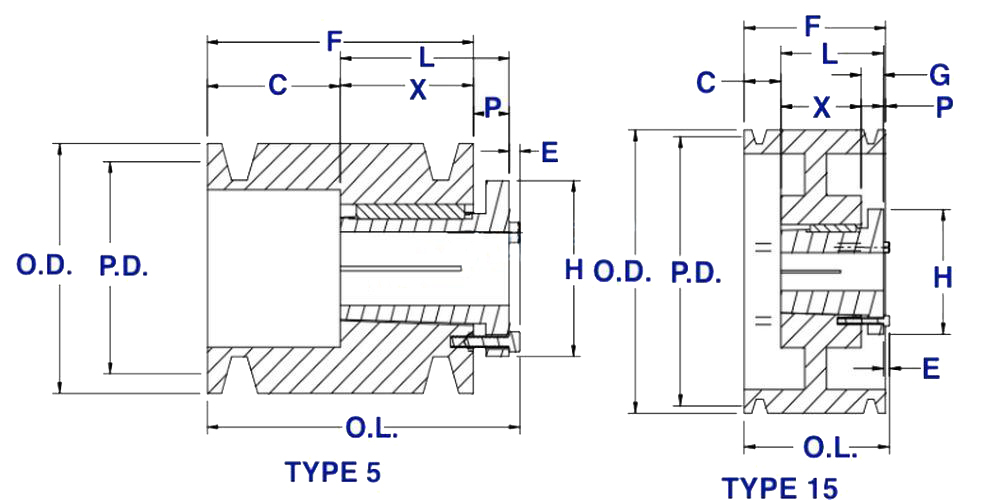

10B Style Pulley Size Chart
10B Gripbelt Sheaves
|
Size
|
Bushing Type
|
Pitch Diameter (4L/A)
|
Pitch Diameter (5L/B)
|
Outside Diameter
|
Type
|
(O.L.)
|
(L)
|
(P)
|
(C)
|
(H)
|
(F)
|
(G)
|
(X)
|
(E)
|
Pulley Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10B54Q | Q2 | 5.0″ | 5.4″ | 5.75″ | 5 | 8-25/32″ | 3-1/2″ | 3/4″ | 5″ | 4-1/8″ | 7-3/4″ | — | 2-3/4″ | 9/32″ | 21.5 |
| 10B56Q | Q2 | 5.2″ | 5.6″ | 5.95″ | 5 | 8-25/32″ | 3-1/2″ | 3/4″ | 5″ | 4-1/8″ | 7-3/4″ | — | 2-3/4″ | 9/32″ | 24.9 |
| 10B58Q | Q2 | 5.4″ | 5.8″ | 6.15″ | 15 | 7-3/4″ | 3-1/2″ | 3-1/2″ | 3/4″ | 4-1/8″ | 7-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 23.5 |
| 10B60Q | Q2 | 5.6″ | 6.0″ | 6.35″ | 15 | 7-3/4″ | 3-1/2″ | 3-1/2″ | 3/4″ | 4-1/8″ | 7-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 25.6 |
| 10B62Q | Q2 | 5.8″ | 6.2″ | 6.55″ | 15 | 7-3/4″ | 3-1/2″ | 3-1/2″ | 3/4″ | 4-1/8″ | 7-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 27.5 |
| 10B64Q | Q2 | 6.0″ | 6.4″ | 6.75″ | 15 | 7-3/4″ | 3-1/2″ | 3-1/2″ | 3/4″ | 4-1/8″ | 7-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 31.4 |
| 10B66Q | Q2 | 6.2″ | 6.6″ | 6.95″ | 15 | 7-3/4″ | 3-1/2″ | 3-1/2″ | 3/4″ | 4-1/8″ | 7-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 32.5 |
| 10B68Q | Q2 | 6.4″ | 6.8″ | 7.15″ | 15 | 7-3/4″ | 3-1/2″ | 3-1/2″ | 3/4″ | 4-1/8″ | 7-3/4″ | 3/4″ | 2-3/4″ | 9/32″ | 36.1 |
| 10B70R | R2 | 6.6″ | 7.0″ | 7.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 34.0 |
| 10B74R | R2 | 7.0″ | 7.4″ | 7.75″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 39.8 |
| 10B80R | R2 | 7.6″ | 8.0″ | 8.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 48.5 |
| 10B86R | R2 | 8.2″ | 8.6″ | 8.95″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 51.5 |
| 10B90R | R2 | 8.6″ | 9.0″ | 9.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 52.3 |
| 10B94R | R2 | 9.0″ | 9.4″ | 9.75″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 54.0 |
| 10B110R | R2 | 10.6″ | 11.0″ | 11.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 61.0 |
| 10B124R | R2 | 12.0″ | 12.4″ | 12.75″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 77.5 |
| 10B136R | R2 | 13.2″ | 13.6″ | 13.95″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 76.5 |
| 10B154R | R2 | 15.0″ | 15.4″ | 15.75″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 89.0 |
| 10B184R | R2 | 18.0″ | 18.4″ | 18.75″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 104.0 |
| 10B200R | R2 | 19.5″ | 20.0″ | 20.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 112.0 |
| 10B250R | R2 | 24.5″ | 25.0″ | 25.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 153.0 |
| 10B300R | R2 | 29.5″ | 30.0″ | 30.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 188.0 |
| 10B380R | R2 | 37.5″ | 38.0″ | 38.35″ | 15 | 7-3/4″ | 4-7/8″ | 1″ | 1-7/8″ | 5-3/8″ | 7-3/4″ | 7/8″ | 4″ | 9/32″ | 258.0 |
| 10R380U | U0 | 37.5″ | 38.0″ | 38.35″ | 15 | 7-3/4″ | 4-15/16″ | 1-7/16″ | 1-7/8″ | 8-3/8″ | 7-3/4″ | 1-3/16″ | 3-3/4″ | 15/32″ | 270.0 |
V-belt Pulleys for Taper Bush
Our high-quality V-belt pulleys are made of grey cast iron according to DIN 2211/2217 or ISO 4183 and are available for cylindrical bores and taper clamping bushes.
The taper bush system offers a simple, cost-effective, flexible variant of the shaft-hub connection. Due to the internationally standardized sizes of the taper bushings, changes to the bore diameters can be implemented easily and quickly from stock.
All tapered pulleys are balanced as standard according to DIN ISO 21940 (old DIN ISO 1940), with a balancing quality of at least G16. For high speeds or special requirements, the pulleys can also be balanced in higher balancing grades G6.3 or G2.5 on request.
Advantages
- The extensive standard range of many profiles and dimensions
- High availability
- Favorable price-performance ratio
- Interchangeable due to international standardization
- Simple assembly
- High running smoothness due to balanced discs
- Low wear
In addition to our standard range, we specialize in designing and manufacturing pulleys with the American profiles 3V, 5V, and 8V, as well as unique designs according to individual customer specifications.
Applications of V-belt Pulley
V-belt pulleys are widely used in the power output, gears of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging presses, some small horsepower motorcycle power transmission, agricultural machinery power, etc. box, air compressor, reducer, generator, etc.
 |
 |
 |
Technological Processing
10B Gripbelt Sheaves Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
