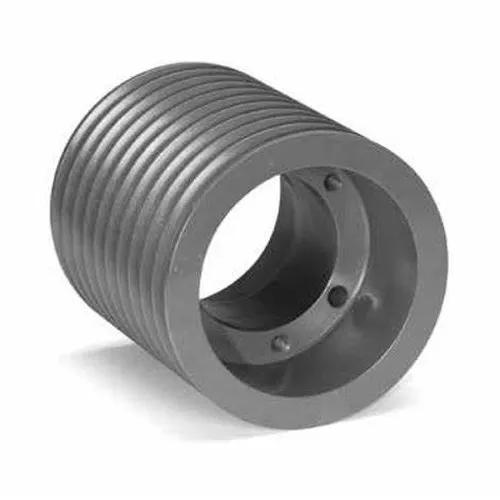

10B series QD Bushed Sheaves Pulleys for “A” and “B” Belts
10B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 5.75″ to 38.35″ in diameter. Most of our ten-groove 10B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don’t have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the “fixed-bore” style.
10B series pulleys10B series pulleys
10B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 5.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with SK, SF, E, F, or J QD bushings, which we also stock. Most of our ten-groove 10B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don’t have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the “fixed-bore” style.
10B Style QD Bushed Pulley Size Chart
|
Size
|
Bushing Type
|
Pulley Type
|
Pitch Diameter (5L/B)
|
Pitch Diameter (4L/ A)
|
Outside Diameter
|
(E)
|
(F)
|
(L)
|
(M)
|
Pulley Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|
| 10B54SK | SK | A | 5.4″ | 5.0″ | 5.75″ | 1-25/32″ | 7-3/4″ | 1-15/16″ | 4-1/32″ | 18.0 |
| 10B56SK | SK | A | 5.6″ | 5.2″ | 5.95″ | 1-25/32″ | 7-3/4″ | 1-15/16″ | 4-1/32″ | 20.0 |
| 10B60SF | SF | A | 6.0″ | 5.6″ | 6.35″ | 1-23/32″ | 7-3/4″ | 2-1/16″ | 3-31/32″ | 24.0 |
| 10B64SF | SF | A | 6.4″ | 6.0″ | 6.75″ | 1-23/32″ | 7-3/4″ | 2-1/16″ | 3-31/32″ | 26.0 |
| 10B68SF | SF | A | 6.8″ | 6.4″ | 7.15″ | 1-23/32″ | 7-3/4″ | 2-1/16″ | 3-31/32″ | 28.0 |
| 10B74SF | SF | A | 7.4″ | 7.0″ | 7.75″ | 1-23/32″ | 7-3/4″ | 2-1/16″ | 3-31/32″ | 32.0 |
| 10B86E | E | A | 8.6″ | 8.2″ | 8.95″ | 1-31/32″ | 7-3/4″ | 2-3/4″ | 3-1/32″ | 42.0 |
| 10B94E | E | A | 9.4″ | 9.0″ | 9.75″ | 1-31/32″ | 7-3/4″ | 2-3/4″ | 3-1/32″ | 48.0 |
| 10B110E | E | A | 11.0″ | 10.6″ | 11.35″ | 1-31/32″ | 7-3/4″ | 2-3/4″ | 3-1/32″ | 56.0 |
| 10B124E | E | A | 12.4″ | 12.0″ | 12.75″ | 1-31/32″ | 7-3/4″ | 2-3/4″ | 3-1/32″ | 64.0 |
| 10B154F | F | A | 15.4″ | 15.0″ | 15.75″ | 5/8″ | 7-3/4″ | 3-3/4″ | 3-9/32″ | 88.0 |
| 10B184F | F | A | 18.4″ | 18.0″ | 18.75″ | 5/8″ | 7-3/4″ | 3-3/4″ | 3-9/32″ | 103.0 |
| 10B200F | F | A | 20.0″ | 19.6″ | 20.35″ | 5/8″ | 7-3/4″ | 3-3/4″ | 3-9/32″ | 112.0 |
| 10B250F | F | A | 25.0″ | 24.6″ | 25.35″ | 5/8″ | 7-3/4″ | 3-3/4″ | 3-9/32″ | 142.0 |
| 10B300F | F | A | 30.0″ | 29.6″ | 30.35″ | 5/8″ | 7-3/4″ | 3-3/4″ | 3-9/32″ | 174.0 |
| 10B380J | J | A | 38.0″ | 37.6″ | 38.35″ | 5/8″ | 7-3/4″ | 4-5/8″ | 3″ | 230.0 |
Advantages of 10B Style QD Bushed Pulley(10B series pulleys):
- The extensive standard range of many profiles and dimensions
- High availability
- Favorable price-performance ratio
- Interchangeable due to international standardization
- Simple assembly
- High running smoothness due to balanced discs
- Low wear
In addition to our standard range, we specialize in designing and manufacturing pulleys with the American profiles 3V, 5V, and 8V, as well as unique designs according to individual customer specifications.
Applications of QD Bushed Pulley
v belt pulleys can be used on small diesel engine power, farm vehicle, tractor, car, mining equipment, processing equipment, textile machinery, packing machinery, lathe, forging machine, small horsepower motorcycle’s powertrain, the transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.
 |
 |
