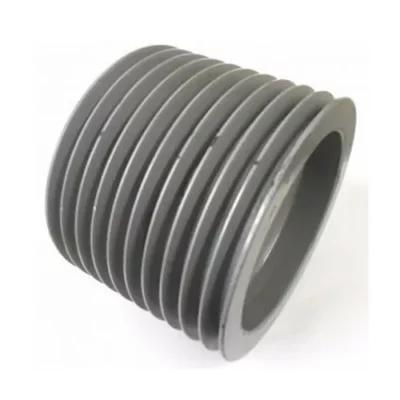

10C Series 10 groove Cast Iron QD bushing Sheaves for “C” Belts
10C series ten-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 8.40″ to 50.40″ in diameter. Depending on the sheave size, they are made to use an E, J, or M QD (quick detachable) bushings, which we also stock. Most of our 10C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
10C series ten-groove QD bushed sheaves
10C series 10 groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 8.40″ to 50.40″ in diameter. Depending on the sheave size, they are made to use an E, J, or M QD (quick detachable) bushings, which we also stock. Most of our 10C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
10C 10 groove QD Sheaves Size Chart
10C 10 groove QD Sheaves Specifications
| Size | Bushing Type | Type | Pitch Diameter | Outside Diameter | (E) | (F) | (L) | (M) | Sheave Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 10C80E | E | A | 8.0″ | 8.40″ | 2-1/32″ | 10-1/4″ | 2-3/4″ | 5-15/32″ | 65 |
| 10C85E | E | A | 8.5″ | 8.90″ | 2-1/32″ | 10-1/4″ | 2-3/4″ | 5-15/32″ | 69 |
| 10C90J | J | A | 9.0″ | 9.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 73 |
| 10C95J | J | A | 9.5″ | 9.90″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 79 |
| 10C100J | J | A | 10.0″ | 10.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 84 |
| 10C105J | J | A | 10.5″ | 10.90″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 95 |
| 10C110J | J | A | 11.0″ | 11.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 104 |
| 10C120J | J | A | 12.0″ | 12.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 113 |
| 10C130J | J | A | 13.0″ | 13.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 121 |
| 10C140J | J | A | 14.0″ | 14.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 128 |
| 10C160J | J | A | 16.0″ | 16.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 146 |
| 10C180J | J | A | 18.0″ | 18.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 161 |
| 10C200J | J | A | 20.0″ | 20.40″ | 2-1/16″ | 10-1/4″ | 4-5/8″ | 3-9/16″ | 175 |
| 10C240M | M | A | 24.0″ | 24.40″ | 9/32″ | 10-1/4″ | 6-3/4″ | 3-7/32″ | 265 |
| 10C300M | M | A | 30.0″ | 30.40″ | 9/32″ | 10-1/4″ | 6-3/4″ | 3-7/32″ | 310 |
| 10C360M | M | A | 36.0″ | 36.40″ | 9/32″ | 10-1/4″ | 6-3/4″ | 3-7/32″ | 345 |
| 10C440M | M | A | 44.0″ | 44.40″ | 9/32″ | 10-1/4″ | 6-3/4″ | 3-7/32″ | 450 |
| 10C500M | M | A | 50.0″ | 50.40″ | 9/32″ | 10-1/4″ | 6-3/4″ | 3-7/32″ | 500 |
V-belt Pulley Specification
| European standard: | American standards: | Bore: pilot bore, finish bore, taper bore, bore for QD bushing. Surface finish: paint, phosphate, zinc plate Material: cast iron, ductile iron, nylon, aluminum Made according to drawings and/or samples, OEM inquiries are welcomed. |
| a) V-belts pulley for taper bushing: SPZ, SPA, SPB, SPC; up to 10 grooves. b) Adjustable speed V-belt pulleys and variable speed pulleys c) Flat belt pulleys and conveyor belt pulleys |
a) Sheave for taper bushing: 3V, 5V, 8V b) Sheaves for QD bushings: B、C、D Series c) Sheaves for split taper bushing: TA、TB、TC Series d) Sheave for 3L, 4L or A, and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK e) Adjustable sheave: poly V-pulley, multi-pitch H, L, J, K, and M. |

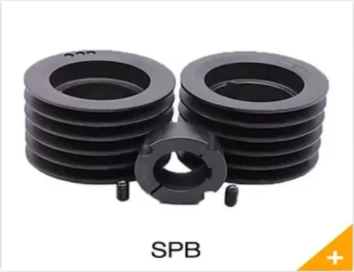

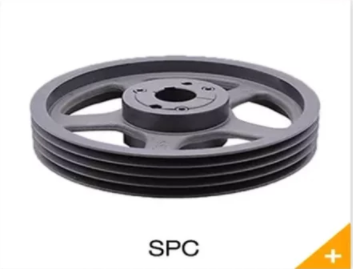

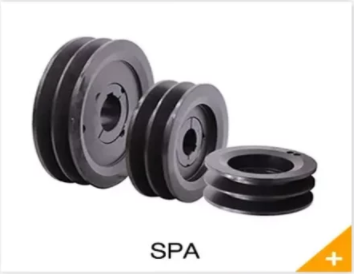

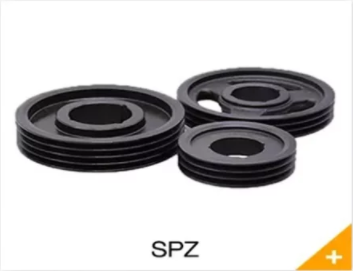

| European standard pulley | |||
 |
 |
 |
 |

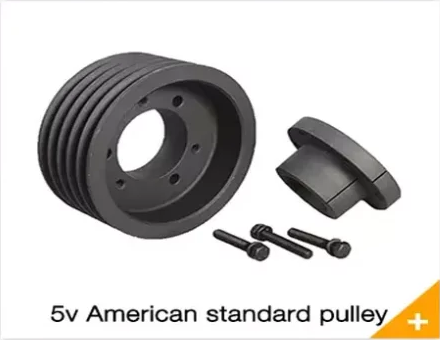

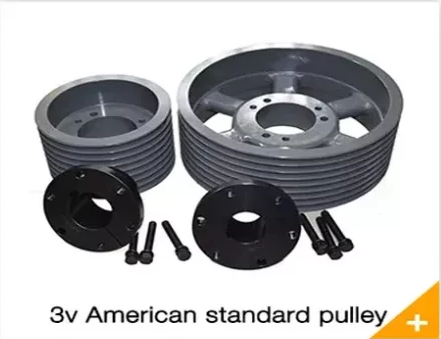

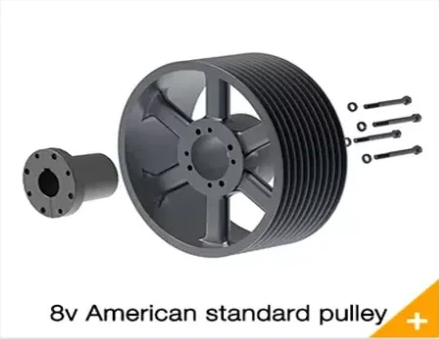

| American standard pulley | |||
 |
 |
 |
 |

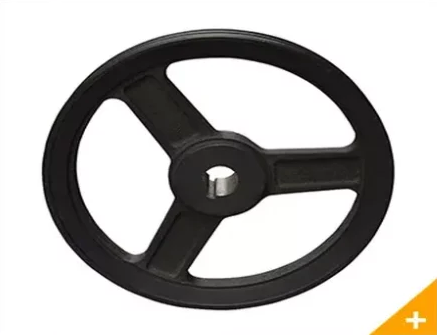

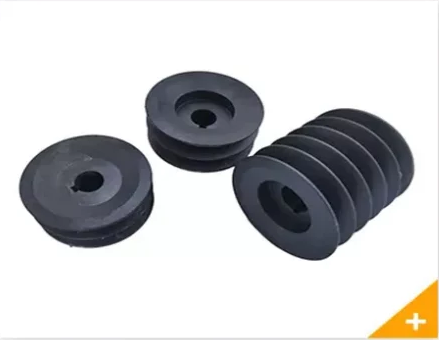

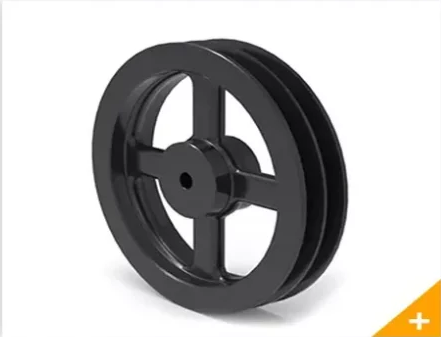

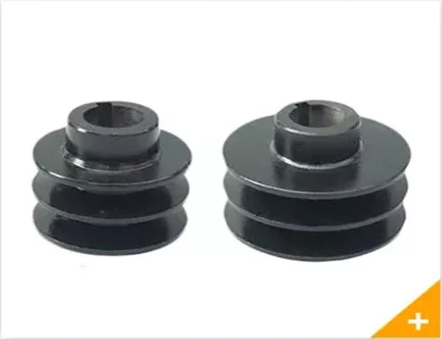

| Custom pulley | |||
 |
 |
 |
 |

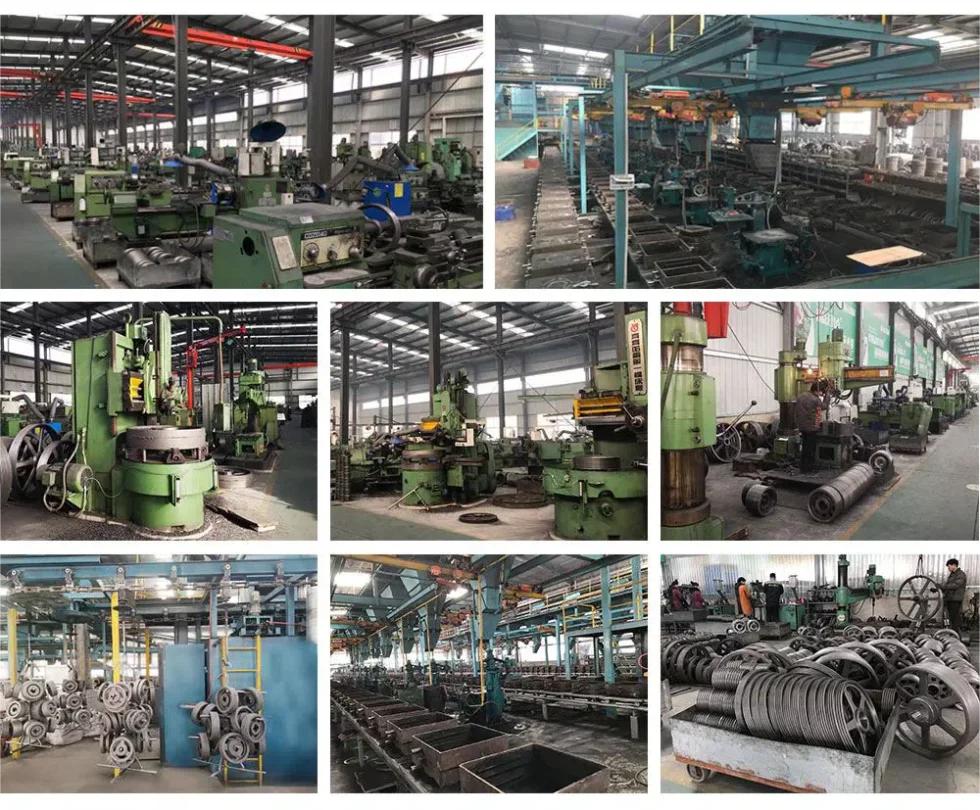

Technological Processing
Company Profile
We’re professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.
Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.
Our factory adheres to the enterprise concept of “quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development.” We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

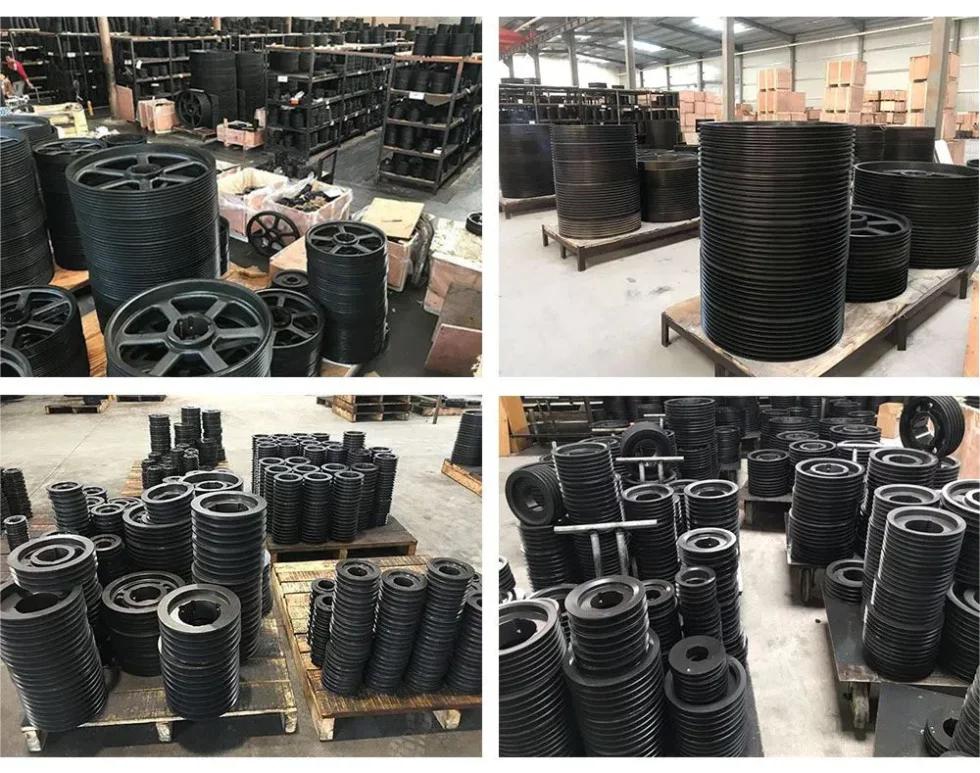

Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a manufacturer and trading company.
Q2. What is your sample policy?
A: We can supply the sample if we have finished parts in stock, but customers need to pay for the sample cost and shipping fee.
Q3. Can you produce according to the samples?
A: We can produce power transmission parts according to your samples or technical drawings. We can build the molds and fixtures.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. Can you customize pulleys?
A: Yes, please send us your drawing for an accurate quotation.
Q6. How long is your delivery time and shipment?
A: 1. Sample Lead-times: 10-20 days.
2. Production Lead-times: 30-45 days.
Q7. How do you make our business a long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefits ;
2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.
Q8: What are your advantages?
1. The most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
