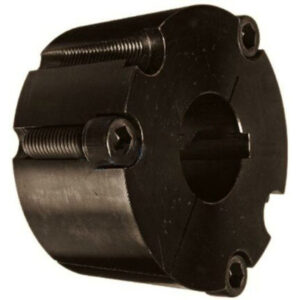

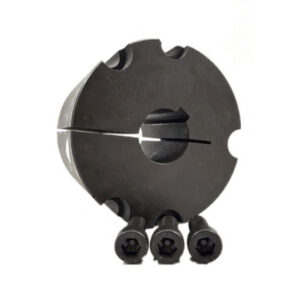

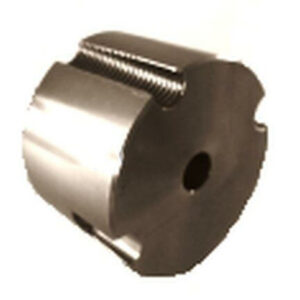

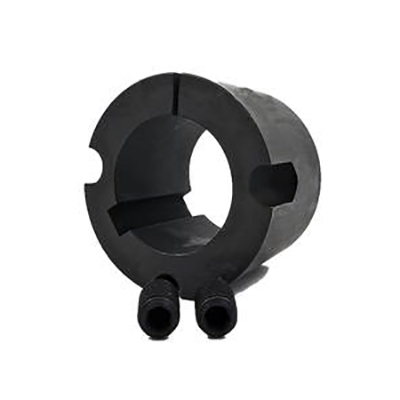

1215 Taper Lock Bushings
1215 Taper Lock Bushings
This 1215 Tapered Locking Bushing is a high-quality, durable, and reliable product that is precision manufactured to last and outperform the competition. 1215 Tapered Locking Bushings are used in a wide range of applications including Pulleys, Sprockets, Drums, Drive Pulleys, Tail Pulleys, and Gears, we also have them! For more information on the 1215 Tapered Locking Bushing, please contact us and we will be happy to assist you.

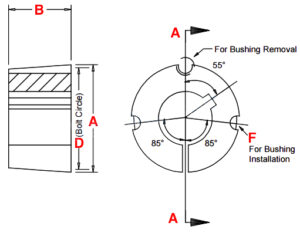

Dimensions of the 1215 Taper Lock Bushings
- Bushing Number: 1210
- Bore: 1″、1/2″、10mm、11/16″、11mm、12mm、13/16″、14mm…..
- Dimension (A): 1-7/8″
- Dimension (B): 1-1/2″
- Dimension (D): 1-3/4″
- Number Of Set Screws: 2
- Threads: 3/8″
- Length: 5/8″
- Wrench Torque: 175 LBS
- Weight: 0.6 LBS
Installation
1. Clean all oil, dirt, and paint from the shaft, bushing holes, bushing exterior, and bores of components (sprockets, pulleys, etc.).
2. Insert the bushing into the assembly. Match hole patterns, not threaded holes (each hole is threaded on one side only).
3. Thread the set screw or cap screw into the half-threaded hole shown below. Install the assembly on the shaft.

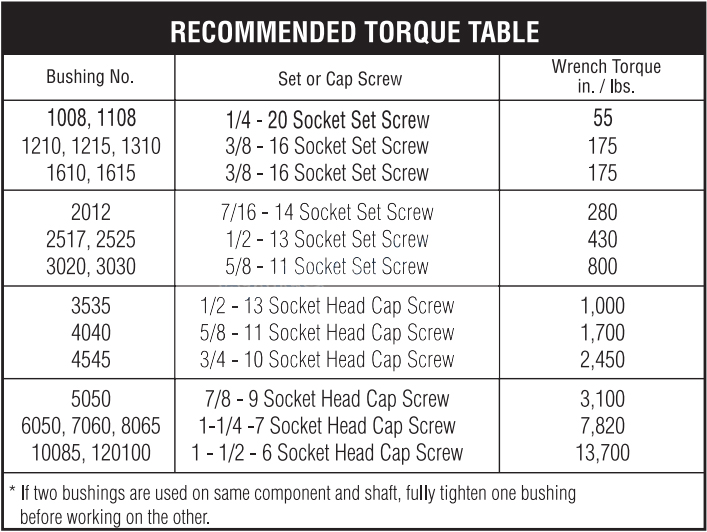

4. Alternately set the torque setting or cap screw* to the recommended torque setting in the table below.
5. Fill all unoccupied holes with grease.
Removal
1. Remove any retaining or cap screws.
2. Insert the set screw or cap screw into the above hole.
3. To reinstall, complete all five (5) installation instructions.
What are the symptoms of a damaged bushing?
In terms of insulation, the W-sleeve consists of two layers. The outermost layer consists of porcelain. The innermost insulation system consists of concentric capacitors. The outermost layer consists of several layers and is used for electrical testing. Although this is a solid insulation system, it requires extensive metal fittings and flexible seals. It is recommended for voltages of 26 kV or lower.
Changes in PF indicate that moisture has penetrated and degraded the casing. Also, if the PF value doubles, replace the bushing . Another degradation indicator is the change in capacitance, measured in milligrams (pF). A 10% increase from its nameplate value indicates that the bushing needs to be replaced. So, what are the symptoms of a damaged W bushing?
Hot Loop Test: This test is performed on the bushing to evaluate its ability to conduct current. Using a conductive ring around the porcelain, the test can determine if the dielectric loss has occurred through the sleeve. It can also detect cracked porcelain, deteriorated cement joints, gasket leaks, and faults within the condenser layers. Additionally, this test checks the oil level in the oil-filled bushing.
