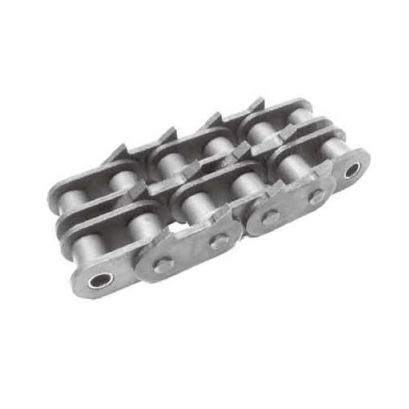

12A 1 2PEP series sharp top chains
Applications of Sharp Top Chains:
- Conveyor Systems: Used in various types of conveyor systems to handle materials efficiently and with minimal slippage.
- Power Transmission: Ideal for applications where robust and precise power transmission is critical, such as in heavy machinery and automotive systems.
- Food Processing: Often used in the food industry where minimizing contamination and maintaining cleanliness is crucial.
- Textile Machinery: Utilized in textile manufacturing where precise control and durability are required.

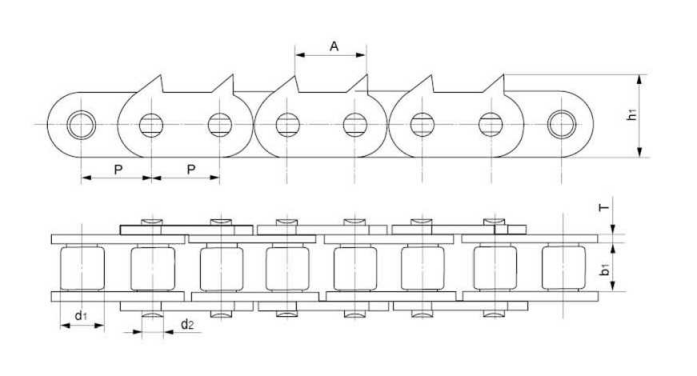

Diameter Data
Pitch | Outer diameter | Inner Width | diameter | Height of | Height of | TH1ckness of | Tensile Strength | Weight | ||
chain | of Roller | of Inner Link | of Pin | Tooth Top | Tooth Top | Sidebar | Q(min)/KN | per Meter | ||
NO. | P | d1(max) | b1(mim) | d2 | h1 | A | T | q | ||
mm | mm | mm | mm | mm | mm | mm | Simplex | Doublex | kg/m | |
12A-1-2PEP | 19.05 | 11.91 | 12.7 | 5.94 | 21.8 | 19.75 | 2.4 | 31.1 | 62.2 | 1.907 |
16A-1-2PEP | 25.4 | 15.88 | 15.88 | 7.92 | 29.6 | 25.29 | 3.2 | 56.7 | 113.4 | 3.05 |
16B-1-2PEP | 25.4 | 15.88 | 17.05 | 8.28 | 27.5 | 25.29 | 4 | 60 | 106 | 3.63 |
20B-1-2PEP | 31.75 | 19.05 | 20 | 10.19 | 32.7 | 30 | 4.5/3.6 | 95 | 180 | 4.95 |
We are a manufacturing company specializing in transmission components, committed to delivering high-quality products and customized solutions. Equipped with advanced manufacturing facilities and a skilled technical team, we cater to diverse needs across various industries. Whether in automotive, mechanical manufacturing, or other industrial sectors, we have earned customer trust through exceptional quality and reliability.
