Sprocket for Case-IH Combine Grain
Sprocket for Case-IH Combine Grain
1317192C1 sprocket Replacement Chain Drive Fits Case IH Combine:
(Upper & Lower Clean Grain Auger) Case-IH COMBINE :1640 1644 1660 1666 1670 1680 1688 2144 2166 2344 2366
(Lower Clean Grain Auger) Case-IH COMBINE: 1682
(Upper Clean Grain Auger) Case-IH COMBINE: 2188 2388
Forage Harvester Case-IH: 2144
Sprocket for Case-IH Combine Grain
1317192C1 Sprocket for Case-IH Combine Grain Handling Parts
1317192C1 Sprocket Fits the following models
Sprocket for Case-IH Combine Grain
1317192C1 sprocket Replacement Chain Drive Fits Case IH Combine:
(Upper & Lower Clean Grain Auger) Case-IH COMBINE :1640 1644 1660 1666 1670 1680 1688 2144 2166 2344 2366
(Lower Clean Grain Auger) Case-IH COMBINE: 1682
(Upper Clean Grain Auger) Case-IH COMBINE: 2188 2388
Forage Harvester Case-IH: 2144

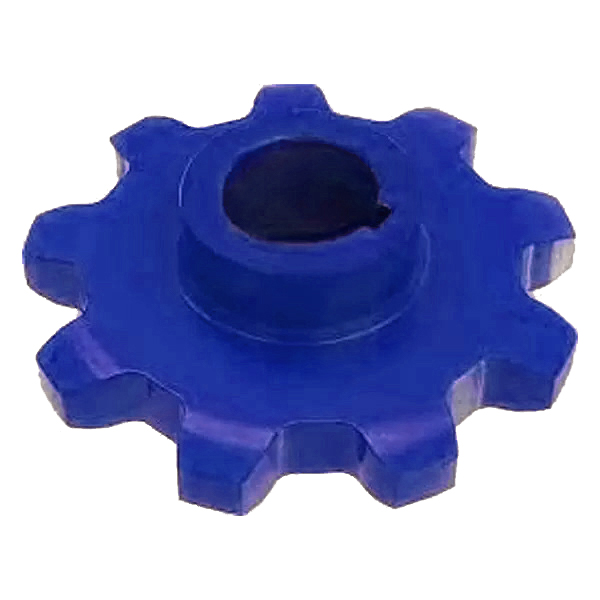

Description / Notes: 9 Teeth; 1-1/4″ Diameter Shaft; Hardened
Cross Reference Part #: 1317192C1; A-1317192C1; SP122; SP122H
Replaces OEM Part Number:1317192C1
Replace the worn Sprockets and Idlers on your combine to extend the life of your chains and improve overall performance

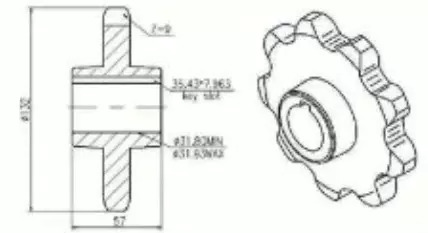

Parameters of 1317192C1 Sprocket
| Weight, W | kg | 1.5 |
|---|---|---|
| Inner diameter, d | mm | 35 |
| Outer diameter, D | mm | 132 |
| Number of teeth, Z | 9 | |
| Pitch, p | mm | 41.4 |
| Height, H | mm | 57 |
| Outside diameter, D1 | mm | 50 |
| Key slot | mm | 4x8x57 |
Spare parts for box combine elevator.
Ensure that the torque is transmitted through the chain to the working device of the drive unit. This spare part is used to replace worn or damaged parts during maintenance.
Steel or cast iron products with complex spatial shapes, with an asterisk, central hole, and fastener. The outer surface of parts is coated with a special coating to prolong the operation life.
We can provide customized services
- Processing
forging, hobbing, precision machining, heat treatment, surface treatment - Machining Equipment
Air hammer//electric screw press, imported vertical and horizontal CNC lathe, imported machining center, CNC tapping center, CNC hobbing machine, CNC cylindrical grinder, welding machines, vertical and horizontal hydraulic broaching machine. automatic production lines of high-power CNC heat treatment. - Heat Treatment
Normalizing/quenching and tempering/ carburizing and quenching
/salt bath quenching/vacuum quenching/subzero treatment/liquid nitriding/gas nitriding/carbonnitriding/ QPQ treatment/high-frequency quenching. - Surface Treatment
Zinc-plated, non-chromate dacromet treatment, chromium-plated, black oxide treatment, phosphorization, anodic oxidation, nickel-plated - Application
cover a wide range of sectors including agriculture machinery, logistics warehousing, garage, food Machinery, escalator, and so on. - Packing
the sprocket is packed in a plywood case lined with corrugated paperboard or carton box or according to customers’ requirements.
