Motorized Mechanical Screw Jack
Motorized Mechanical Screw Jack Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
Weight (KG): 65 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 20NM
Input Speed: Max. 1500RPM
Output Speed: Max. 250RPM
Load Capacity: 20 ton
Mounting Type: Inverted
Travel Length: 500mm Stroke
Screw Design: Translating screw
Gear Ratio: 10:1
Screw End Fitting: Top plate (flange)
Accessories: Limit switches, control box, and protective tube
Motor voltage: AC 415V 50HZ 3PHASE
Motor Power: 11KW
Gear Reducer Type: Helical Gear Reducer
Packaging Details: Strong Exporting Plywood Cases (International Exporting Standard Wooden Material with Free Fumigation).
Port: Hangzhou
Features

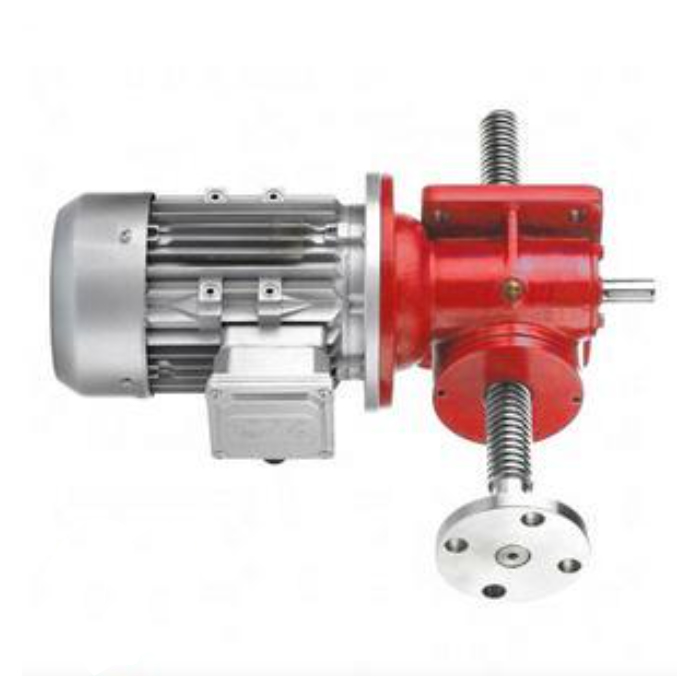

20 ton motorized mechanical screw jack for lifting heavy duty mobile lifting platform. Electric mechanical screw jack load capacity 20 ton, self locking trapezoidal screw diameter 65mm, pitch 10mm, inverted mount, translating screw type, stroke 500mm, ratio 10:1 (one rpm input travel length 1mm), top plate(load pad/flange) end, two limit switches are installed on the protection tube. Accessories: limit switch, gear motor and control box.
Packaging & Shipping
Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing: 100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.
