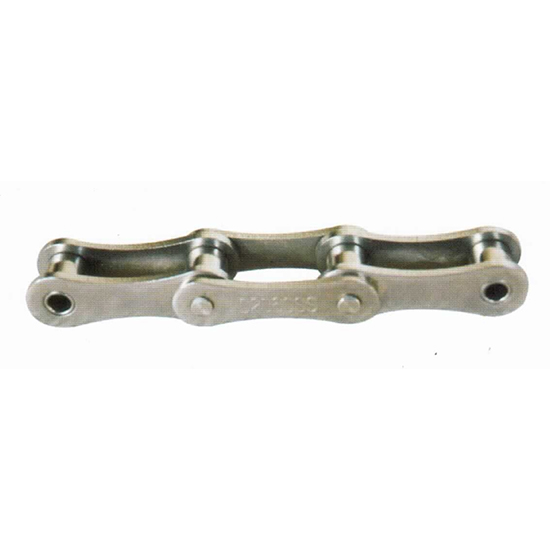

2040SS stainless steel double pitch transmission chain
2040SS stainless steel double pitch transmission chain
- Double Pitch: As mentioned, the pitch of a double pitch roller chain is twice that of a standard roller chain. For instance, a standard #80 roller chain has a pitch of 1 inch, while a C2080 double pitch roller chain has a pitch of 2 inches.
- Load Capacity: With its larger pitch, the double pitch roller chain is generally suited for heavier and larger loads, providing greater strength and durability compared to standard roller chains.
- Applications: Double pitch roller chains are commonly used in low-speed, high-load transmission systems, such as in agricultural machinery, mining equipment, and conveyor systems. They are ideal for applications where high speed is not required but high load capacity is necessary.
- Materials and Configurations: These chains can be made from various materials and configurations to meet specific needs, such as carbon steel, stainless steel, or alloy steel. They can also be manufactured according to ANSI, ISO, or DIN standards to suit different operating conditions and environments.
- Storage and Customization: The chains are available in storage forms like 10-foot boxes, 50-foot reels, and 100-foot reels, and custom cut lengths can be provided to meet specific customer requirements, including those needing particular chain lengths.

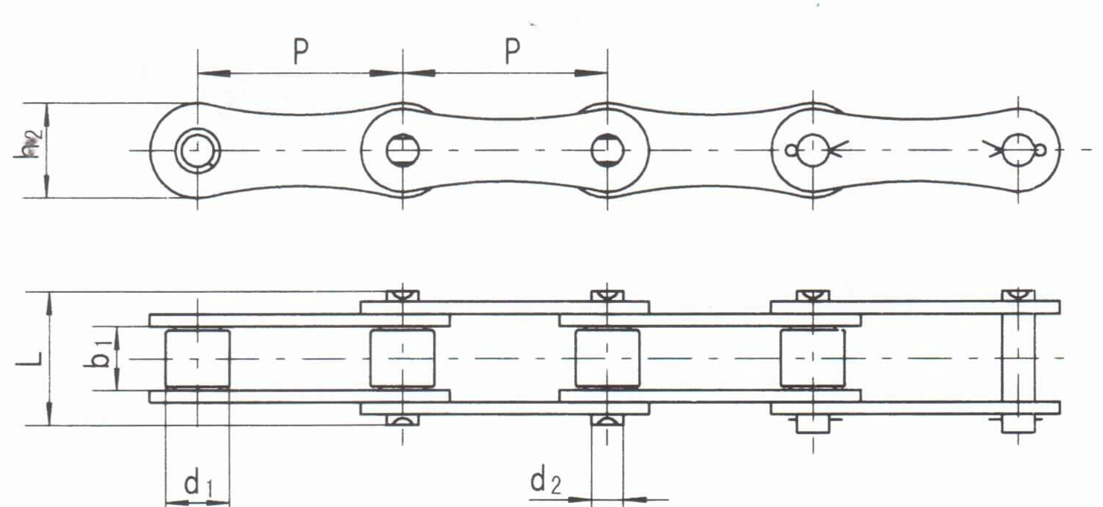

Diameter Data
| Pitch | Roller diameter | Width between inner plates | Pin | Inner plate depth | Ultimate
tensile strength |
Average
tensile strength |
Weight Per meter | ||
| Chain | dia | length | |||||||
| No. | P mm | d1(max)
mm |
b1(min)
mm |
d2
mm |
L mm
|
h2(max)
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
| 2040SS | 25.4 | 7.95 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.42 |
| 2050SS | 31.75 | 10.16 | 9.40 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 0.73 |
| 2060SS | 38.1 | 11.91 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.02 |
| 2080SS | 50.8 | 15.88 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 1.7 |
| 2100SS | 63.5 | 19.05 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 2.55 |
| 2120SS | 76.2 | 22.23 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 4.06 |
| 208BSS | 25.4 | 8.51 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.45 |
| 210BSS | 31.75 | 10.16 | 9.65 | 5.08 | 19.2 | 14.6 | 14.9 | 16.2 | 0.65 |
| 212BSS | 38.1 | 12.07 | 11.68 | 5.72 | 22 | 16 | 17.4 | 17.7 | 0.76 |
| 216BSS | 50.8 | 15.88 | 17.02 | 8.28 | 35.6 | 21 | 40.6 | 46.7 | 1.75 |
| 220BSS | 63.5 | 19.05 | 19.56 | 10.19 | 40.4 | 26 | 56 | 64.3 | 2.62 |
| 224BSS | 76.2 | 25.4 | 25.4 | 14.63 | 53.4 | 33.4 | 96 | 115.6 | 4.7 |
