Worm screw lift mechanism
Worm screw lift mechanism applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
Weight (KG): 15 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 5NM
Input Speed: Max. 1500RPM
Output Speed: Max. 250RPM
Load Capacity: 2.5 ton
Mounting Type: Upright
Travel Length: 300mm Stroke
Screw Design: Translating screw
Gear Ratio: 24:1
Screw End Fitting: Thread end with rod end bearing
Accessories: Motor flange, rod end, and protective tube
Motor voltage: DC 12V
Motor Power: 250W
Gear Reducer Type: Without Reducer
Packaging Details: Strong Exporting Plywood Cases (International Exporting Standard Wooden Material with Free Fumigation).
Port: Hangzhou
Features
The cubic design 25KN electric worm screw lift mechanism offers modern aesthetics and versatile mounting on two faces of the gearbox, while eliminating the need for upright and inverted variants. For this motorized jacks, upright mount, translating screw type, stroke 500mm, slowest gear ratio 24:1, self locking ACME screw diameter 30 mm, pitch(lead) 6mm, thread end combines with rod end as one, left input shaft(worm) and right motor adapter. Accessories: dc 24v motor with vertical mount(motor flange), protection tube, bellows boots and rod ends.

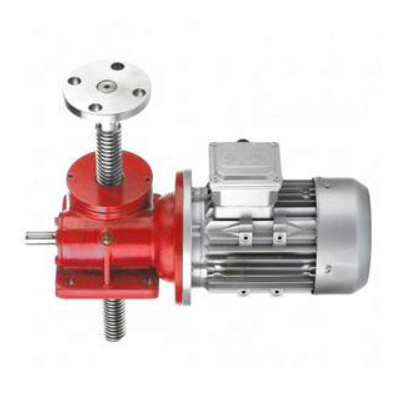

Mechanical screw jack is a product, the innovation of it is due to modularity which allowing to supply a customized product in reasonable times. The coupling with electric motors (either on normal, motor brake or explosion-proof motors) is guaranteed thanks to the predisposition to IEC B5 and B14 flanges.
Packaging & Shipping
Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing: 100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.
