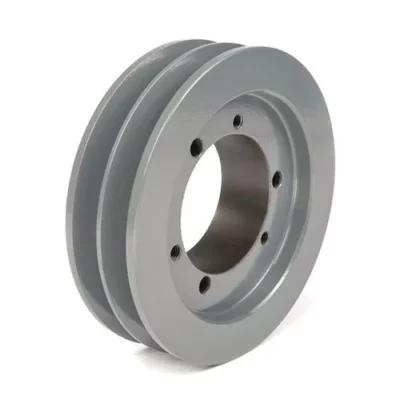

2B QD Bushed Sheaves Pulleys
2B series pulleys(QD Bushed Sheaves) are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with SH, SDS, SK, or SF QD bushings, which we also stock. Most of our two-groove 2B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don’t have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the “fixed-bore” style.

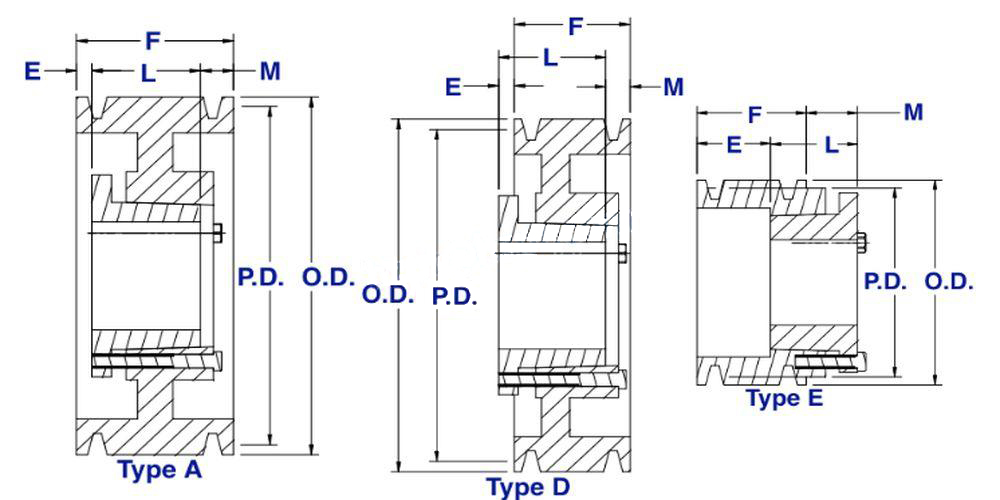

2B Style QD Bushed Pulley Size Chart
Size
|
Bushing Type
|
Pulley Type
|
Pitch Diameter (5L/B)
|
Pitch Diameter (4L/ A)
|
Outside Diameter
|
(E)
|
(F)
|
(L)
|
(M)
|
Pulley Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|
2B34SH | SH | E | 3.4″ | 3.0″ | 3.75″ | 1-3/32″ | 1-3/4″ | 1-5/16″ | 21/32″ | 3.2 |
2B36SH | SH | D | 3.6″ | 3.2″ | 3.95″ | 15/32″ | 1-3/4″ | 1-5/16″ | 29/32″ | 3.4 |
2B38SH | SH | D | 3.8″ | 3.4″ | 4.15″ | 15/32″ | 1-3/4″ | 1-5/16″ | 29/32″ | 3.9 |
2B40SH | SH | A | 4.0″ | 3.6″ | 4.35″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 4.1 |
2B42SH | SH | A | 4.2″ | 3.8″ | 4.55″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 4.4 |
2B44SH | SH | A | 4.4″ | 4.0″ | 4.75″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 4.6 |
2B46SDS | SDS | A | 4.6″ | 4.2″ | 4.95″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 5.0 |
2B48SDS | SDS | A | 4.8″ | 4.4″ | 5.15″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 5.4 |
2B50SDS | SDS | A | 5.0″ | 4.6″ | 5.35″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 6.0 |
2B52SDS |
SDS | A | 5.2″ | 4.8″ | 5.55″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 6.3 |
5B54SDS | SDS | A | 5.4″ | 5.0″ | 5.75″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 6.6 |
2B56SDS | SDS | A | 5.6″ | 5.2″ | 5.95″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 6.9 |
2B58SDS | SDS | A | 5.8″ | 5.4″ | 6.15″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 7.2 |
2B60SDS | SDS | A | 6.0″ | 5.6″ | 6.35″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 7.5 |
2B62SDS | SDS | A | 6.2″ | 5.8″ | 6.55″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 7.8 |
2B64SDS | SDS | A | 6.4″ | 6.0″ | 6.75″ | 1/32″ | 1-3/4″ | 1-5/16″ | 13/32″ | 8.2 |
2B66SDS | SDS | A | 6.6″ | 6.2″ | 6.95″ | 1/32″ | 1-3/4″ | 1-15/16″ | 13/32″ | 8.6 |
2B68SDS | SDS | A | 6.8″ | 6.4″ | 7.15″ | 1/32″ | 1-3/4″ | 1-15/16″ | 13/32″ | 9.0 |
2B70SK | SK | D | 7.0″ | 6.6″ | 7.35″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 9.3 |
2B74SK | SK | D | 7.4″ | 7.0″ | 7.75″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 10.6 |
2B80SK | SK | D | 8.0″ | 7.6″ | 8.35″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 11.0 |
2B86SK | SK | D | 8.6″ | 8.2″ | 8.95″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 11.6 |
2B94SK | SK | D | 9.4″ | 9.0″ | 9.75″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 13.0 |
2B110SK |
SK | D | 11.0″ | 10.6″ | 11.35″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 14.0 |
2B124SK | SK | D | 12.4″ | 12.0″ | 12.75″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 18.0 |
2B136SK | SK | D | 13.6″ | 13.2″ | 13.95″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 20.0 |
2B154SK | SK | D | 15.4″ | 15.0″ | 15.75″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 23.0 |
2B160SK | SK | D | 16.0″ | 15.6″ | 16.35″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 24.0 |
2B184SK | SK | D | 18.4″ | 18.0″ | 18.75″ | 11/32″ | 1-3/4″ | 1-15/16″ | 5/32″ | 29.0 |
2B200SF | SF | D | 20.0″ | 19.6″ | 20.35″ | 15/32″ | 1-3/4″ | 2-1/16″ | 5/32″ | 33.0 |
2B250SF | SF | D | 25.0″ | 24.6″ | 25.35″ | 15/32″ | 1-3/4″ | 2-1/16″ | 5/32″ | 41.0 |
2B300SF | SF | D | 30.0″ | 29.6″ | 30.35″ | 15/32″ | 1-3/4″ | 2-1/16″ | 5/32″ | 51.0 |
2B380SF | SF | D | 38.0″ | 37.6″ | 38.35″ | 15/32″ | 1-3/4″ | 2-1/16″ | 5/32″ | 64.0 |
Features of QD Sheaves
QD conventional sheaves are offered in AB combination grooves with 1 thru 6 grooves and 8 and 10 grooves, and C grooves with 1 thru 6 grooves and 8 and 10 grooves. Styles depending on size include solid, web, and spoke design. Outside diameters range from 3.75″ to 50.4″ with the most popular sizes. These sheaves are designed to be used with QD bushings. “H” bushings are available. All industry standard QD bushings are available in standard, and Splined and hex bores are also available by quotation. Do not use with rim speeds over 6500 feet per minute.
2B QD Bushed Sheaves Pulleys Common Applications
- Machine tools
- Crushers, shredders, breakers, classifiers, shaker screens
- Material conveyor systems
- Fans, blowers, and exhausters
- Pumps and compressors
- Woodworking saws, mills, planers, lathes
Technological Processing
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a manufacturer and trading company.
Q2. What is your sample policy?
A: We can supply the sample if we have finished parts in stock, but customers need to pay for the sample cost and shipping fee.
Q3. Can you produce according to the samples?
A: We can produce power transmission parts according to your samples or technical drawings. We can build the molds and fixtures.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. Can you customize pulleys?
A: Yes, please send us your drawing for an accurate quotation.
Q6. How long is your delivery time and shipment?
A: 1. Sample Lead-times: 10-20 days.
2. Production Lead-times: 30-45 days.
Q7. How do you make our business a long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefits ;
2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.
Q8: What are your advantages?
1. The most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
