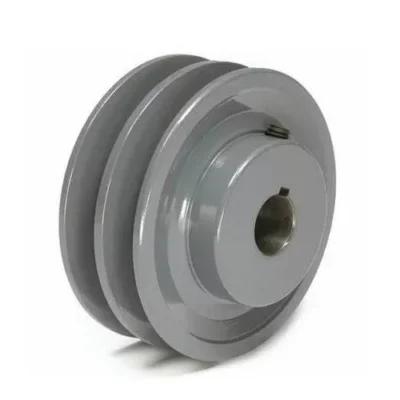

2BK Series Double Groove Sheaves Pulleys
2BK series pulleys(2BK Series Double Groove Sheaves Pulleys) can be used with 2-banded A belts, 2-banded B-belts, 2-banded cogged AX belts, 2-banded cogged BX belts, single A, B, 4L, 5L, AX, BX, AA, and BB belts. Pulleys 2BK series are commonly known as double groove BK pulleys and range in diameter from 2.50″ to 18.75,” but custom ones are also available upon request. And 2BK series pulleys are typically used in medium to heavy-duty agricultural and industrial applications. Our double v-belt pulleys are manufactured using state-of-the-art techniques combined with premium high-performance and high-strength features like using grade 35 cast iron instead of grade 25.

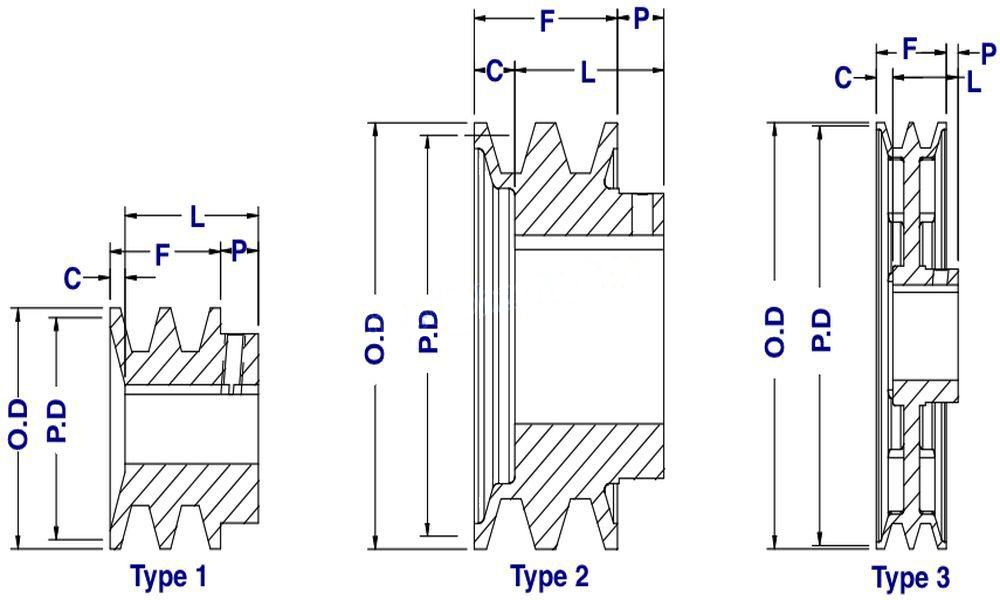

Size Chart 2BK Series Pulley
2BK Series Double Groove Sheaves Pulleys Details
Size
|
Outside Diameter
|
Pitch Diameter (4L/A)
|
Pitch Diameter (5L/B)
|
Type
|
Dimension (F)
|
(L)
|
Dimension (P)
|
(C)
|
Pulley Weight
|
---|---|---|---|---|---|---|---|---|---|
2BK25 | 2.50″ | 1.90″ | 2.30″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 1.3 LBS |
2BK27 | 2.70″ | 2.10″ | 2.50″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 1.6 LBS |
2BK28 | 2.95″ | 2.20″ | 2.60″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 1.9 LBS |
2BK30 | 3.15″ | 2.40″ | 2.80″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 2.3 LBS |
2BK32 | 3.35″ | 2.60″ | 3.00″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 2.6 LBS |
2BK34 | 3.55″ | 2.80″ | 3.20″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 2.8 LBS |
2BK36 | 3.75″ | 3.00″ | 3.40″ | 1 | 1-3/4″ | 1-31/32″ | 15/32″ | 1/4″ | 3.3 LBS |
2BK40 |
3.95″ | 3.20″ | 3.60″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 3.3 LBS |
2BK45 | 4.25″ | 3.50″ | 3.90″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 3.3 LBS |
2BK47 | 4.45″ | 3.70″ | 4.10″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 3.7 LBS |
2BK50 | 4.75″ | 4.00″ | 4.40″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 4.1 LBS |
2BK52 | 4.95″ | 4.20″ | 4.60″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 4.5 LBS |
2BK55 | 5.25″ | 4.50″ | 4.90″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 4.5 LBS |
2BK57 | 5.45″ | 4.70″ | 5.10″ | 2 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 5.1 LBS |
2BK60 | 5.75″ | 5.00″ | 5.40″ | 3 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 4.9 LBS |
2BK62 | 5.95″ | 5.20″ | 5.60″ | 3 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 4.8 LBS |
2BK65 | 6.25″ | 5.50″ | 5.90″ | 3 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 5.0 LBS |
2BK67 | 6.45″ | 5.70″ | 6.10″ | 3 | 1-3/4″ | 1-15/32″ | 15/32″ | 3/4″ | 5.0 LBS |
2BK70 | 6.75″ | 6.00″ | 6.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 6.6 LBS |
2BK80 | 7.75″ | 7.00″ | 7.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 7.2 LBS |
2BK90 |
8.75″ | 8.00″ | 8.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 8.4 LBS |
2BK100 | 9.75″ | 9.00″ | 9.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 9.4 LBS |
2BK110 | 10.75″ | 10.00″ | 10.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 10.4 LBS |
2BK120 | 11.75″ | 11.00″ | 11.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 11.8 LBS |
2BK130 | 12.75″ | 12.00″ | 12.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 14.9 LBS |
2BK140 | 13.75″ | 13.00″ | 13.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 16.3 LBS |
2BK160 | 15.75″ | 15.00″ | 15.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 18.0 LBS |
2BK190 | 18.75″ | 18.00″ | 18.40″ | 3 | 1-3/4″ | 1-19/32″ | 11/32″ | 1/2″ | 23.3 LBS |
Our V-belt Pulley includes:
- Light Duty Bored To Size Pulleys(AK,BK,2AK,2BK,3BK series)
- Light Duty Taper Bore Pulleys(AK-H, BK-H,2AK-H,2BK-H series)
- Split taper bushed Pulleys(1TB,2TB,3TB series)
- Heavy Duty Q.D. Pulleys(1B,2B,3B series)
- Light Duty Variable Speed Pulleys(1VP,2VP,1VL,1VM series)
- Single Groove Pulleys(OK, O.L., AL series)
- Made To Order Designs
Technological Processing 2BK Series Double Groove Sheaves Pulleys
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases. keep parts from injuring or damaging during sea or air shipment.
