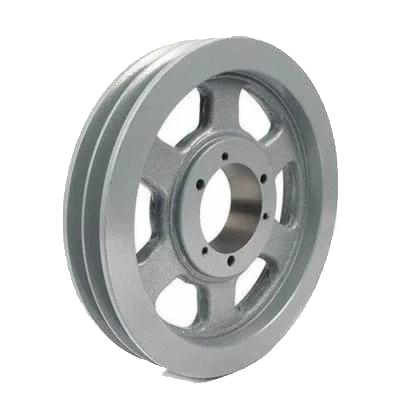

2C Series Cast Iron QD Sheaves for “C” Belts
2C series double-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 9.40″ to 30.40″ in diameter. Depending on the sheave size, they are made to use an F or SF QD (quick detachable) bushings, which we also stock. Most 2C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
2C Series Cast Iron QD Sheaves
2C series double-groove QD bushed sheaves(2C Series Cast Iron QD Sheaves) are working with C, CX, banded belts, and CC v-belts; they range from 9.40″ to 30.40″ in diameter. Depending on the sheave size, they make to use an F or SF QD (quick detachable) bushings, which we also stock. Most 2C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

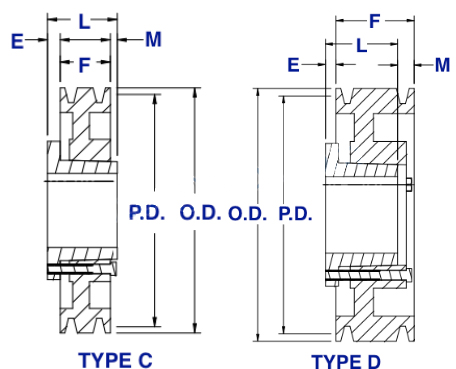

2C Series Cast Iron QD Sheaves Size Chart
| Size | Bushing Type | Type | Pitch Diameter | Outside Diameter | (E) | (F) | (L) | (M) | Sheave Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 2C90SF | SF | D | 9.0″ | 9.40″ | 3/32″ | 2-1/4″ | 2-1/16″ | 9/32″ | 20 |
| 2C95SF | SF | D | 9.5″ | 9.90″ | 3/32″ | 2-1/4″ | 2-1/16″ | 9/32″ | 21 |
| 2C100SF | SF | D | 10.0″ | 10.40″ | 3/32″ | 2-1/4″ | 2-1/16″ | 9/32″ | 22 |
| 2C105SF | SF | D | 10.5″ | 10.90″ | 3/32″ | 2-1/4″ | 2-1/16″ | 9/32″ | 23 |
| 2C110SF | SF | D | 11.0″ | 11.40″ | 3/32″ | 2-1/4″ | 2-1/16″ | 9/32″ | 24 |
| 2C120SF | SF | D | 12.0″ | 12.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 25 |
| 2C130SF | SF | D | 13.0″ | 13.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 28 |
| 2C140SF | SF | D | 14.0″ | 14.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 31 |
| 2C160SF | SF | D | 16.0″ | 16.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 36 |
| 2C180SF | SF | D | 18.0″ | 18.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 39 |
| 2C200SF | SF | D | 20.0″ | 20.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 48 |
| 2C240SF | SF | D | 24.0″ | 24.40″ | 11/32″ | 2-1/4″ | 2-1/16″ | 17/32″ | 60 |
| 2C300F | F | C | 30.0″ | 30.40″ | 1-7/32″ | 2-1/4″ | 3-3/4″ | 9/32″ | 85 |
The QD Sheave
The QD sheave is a type of bushing that helps maintain v-belts. Its quick-detachable bushing allows easy installation and removal, minimizing downtime and maximizing the drive system’s protection. It is available in one to twelve groove configurations and is compatible with dynamic and static balancing. The QD Sheave is a simple to install and maintain sheave, with easy-to-replace bushings.
QD sheaves come in several styles and types and are interchangeable with most other bushings brands. They have high precision and durability and are available with multiple reverse pitch options. And they are also making form gray cast iron and are suitable for various classical V-belts. Designed with three grooves, making them a convenient choice for multiple belts or banded belts.
QD Bushed Sheaves are making for V-belt drives and are available in different types and sizes. They are available in 3/4, 1/2, and 1-1/2 bore sizes. They are available in standard and reverse mounting configurations. You can also ask for a quote if you need a different bore size.
The QD Bushed Sheaves feature an easy-to-install design. The quick detachable bushings enable the sheave to install and remove quickly, minimizing downtime and maintaining the integrity of your drive system. There is a wide selection of QD Bushing Sheaves available from us. The product details page allows you to filter products by several grooves, outside diameter, and belt type.
