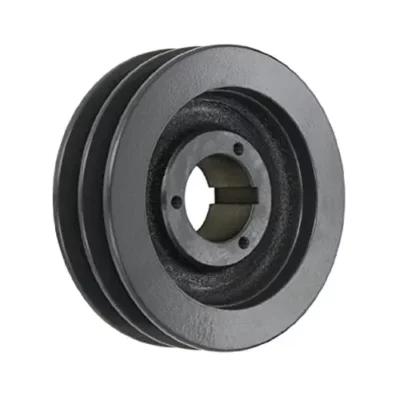

2TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All C Section Belts

2TC series double-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q1 taper bushings, which we also stock. Most 2TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Category: Tag:
Description

2TC Series Cast Iron Sheaves

2TC series double-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q1 taper bushings, which we also stock. Most 2TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

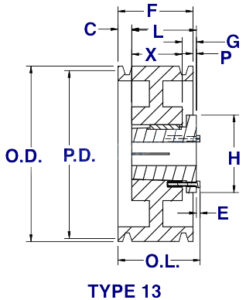

2TC Style Sheave Size Chart

2TC Cast Iron Sheaves2TC Cast Iron Sheaves



Size
Bushing Type
Pitch Diameter
Outside Diameter
Type
(O.L.)
(L)
(P)
(C)
(H)
(F)
(G)
(X)
(E)
Sheave Weight (LBS)
2TC70 Q1 7″ 7.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 14
2TC72 Q1 7.2″ 7.6″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 15.4
2TC74 Q1 7.4″ 7.8″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 16.6
2TC76 Q1 7.6″ 8″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 17.6
2TC78 Q1 7.8″ 8.2″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 14.1
2TC80 Q1 8″ 8.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 14.3
2TC82 Q1 8.2″ 8.6″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 14.8
2TC84 Q1 8.4″ 8.8″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 16.4
2TC86 Q1 8.6″ 9″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 16.1
2TC88 Q1 8.8″ 9.2″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 17.1
2TC90 Q1 9″ 9.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 16.8
2TC92 Q1 9.2″ 9.6″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 18.4
2TC94 Q1 9.4″ 9.8″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 19.1
2TC96 Q1 9.6″ 10″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 20.6
2TC98 Q1 9.8″ 10.2″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 19.5
2TC100 Q1 10″ 10.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 22
2TC102 Q1 10.2″ 10.6″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 21.3
2TC106 Q1 10.6″ 11″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 22.4
2TC110 Q1 11″ 11.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 22.4
2TC114 Q1 11.4″ 11.8″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 23.5
2TC120 Q1 12″ 12.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 24.9
2TC130 Q1 12″ 12.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 28.6
2TC160 Q1 16″ 16.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 36
2TC200 Q1 20″ 20.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 46
2TC240 Q1 24″ 24.4″ 13 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 2 1/4″ 3/4″ 1 3/4″ 9/32″ 59.5

Product Specifications

Series TC-STB Series
Material cast iron G3000
Surface Treatment Black Oxide, E-coat, phosphating blacking, powder coating, painting, and Other coatings available upon request
Machining Process Forging and Machining, Precision Machining and Large Machining,
Investment Casting of Lost Wax, Pressure Die
Heat Treatment Quenching & Tempering, Carburizing & Quenching,
High-frequency Hardening, Carbonitriding
Inspection Raw material, bath analysis, blank physical and chemical analysis, First check, metallography hardness permeating layer, semi-finished product inspection, Adhesion test, finished product inspection
Standard European Standard & American Standard
Balance Static & Dynamic Balance

Application of 2TC Series Sheave:

2TC series sheave is suitable for high-power and compact power transmission requirements. Widely used in various power transmissions, such as mining machinery, petroleum, metallurgy, chemical, textile, lifting, and other industrial equipment.
Mining machinery Oil and gas
Mining machinery Oil and gas

Technological Processing

Technological Processing

Company Profile

Power-trans is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.
Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.
Our factory adheres to the enterprise concept of “quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development.” We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
