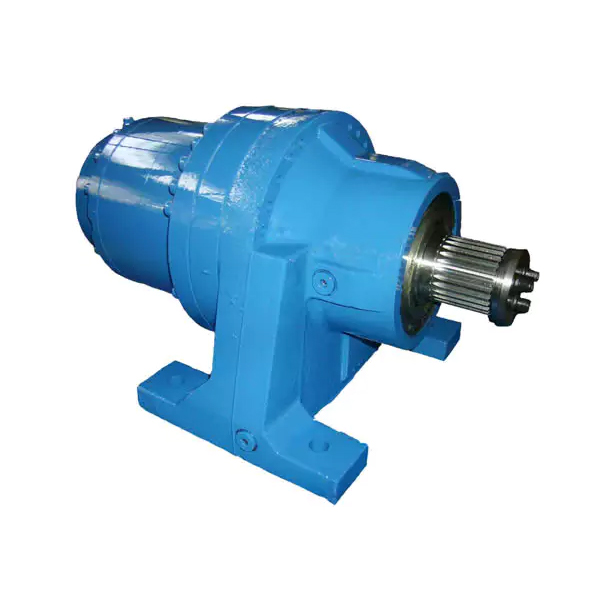

307 Series Planetary Gearbox Replacement Of Bonfiglioli 307L1 307L2 307L3 307L4 307R2 307R3 307R4
Replaceable Planetary Gearbox Models
300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
Specifications of Planetary Gearbox
Torque range 1000-450.000 Nm
Transmissible mechanical power up to 540 kW
Gear ratios 3.4-9.000
Gear unit versions inline
Output configuration
1) Foot and flange mounted
2) Output shaft: solid with key, splined, splined hollow
3) Hollow with shrink disc
Input configurations
1) Flanged axial piston hydraulic motors
2) Hydraulic orbit motors
3) IEC and NEMA motor adaptors
4) Solid input shaft
Hydraulic brake hydraulically released parking brake
Electric brake DC and AC type
Tipo | Torque Nm | |
300L | 300L1, 300L2, 300L3, 300L4 | 1000 |
301L | 301L1, 301L2, 301L3, 301L4 | 1750 |
303L | 303L1, 303L2, 303L3, 303L4 | 2500 |
305L | 305L1, 305L2, 305L3, 305L4 | 5000 |
306L | 306L1, 306L2, 306L3, 306L4 | 8500 |
307L | 307L1, 307L2, 307L3, 307L4 | 12500 |
309L | 309L1, 309L2, 309L3, 309L4 | 18000 |
310L | 310L1, 310L2, 310L3, 310L4 | 25000 |
311L | 311L1, 311L2, 311L3, 311L4 | 40000 |
313L | 313L1, 313L2, 313L3, 313L4 | 55000 |
315L | 315L1, 315L2, 315L3, 315L4 | 100000 |
316L | 316L1, 316L2, 316L3, 316L4 | 135000 |
317L | 317L1, 317L2, 317L3, 317L4 | 170000 |
318L | 318L1, 318L2, 318L3, 318L4 | 250000 |
319L | 319L1, 319L2, 319L3, 319L4 | 350000 |
321L | 321L 1, 321L2, 321L3, 321L4 | 500000 |
Planetary Gearbox Manufacturer
Power-trans is a manufacturing enterprise integrating design, production, and sales. Years of experience in various reducers, research, development, manufacturing, and sales. The main products of the company include Tension Leveler reducer, cooling tower reducer, disc feeder reducer, continuous caster envelope reducer, planetary reducer, cooling tower fan, fan accessories, dumper reducer, bucket wheel stacker reclaimer reducer, problematic tooth reducer, roller reducer, four series reducer, steel mill reducer, helical gear reducer, gearbox, non-standard customized reducer, etc.
To ensure product quality, In recent years, the company has introduced various numerical control processing and inspection equipment from domestic and foreign equipment manufacturers. The modular digital parameters provide a reliable scheme for transmission applications in many industries. The reducer series products of the Vientiane company are widely used in industrial automation, metallurgy and mining, food machinery, environmental protection equipment, electronic manufacturing, power plants, textiles, warehousing and logistics, chemical energy, plastic machinery, lifting and transportation, casting, welding, refrigeration and other light and heavy industrial machinery transmission fields.
