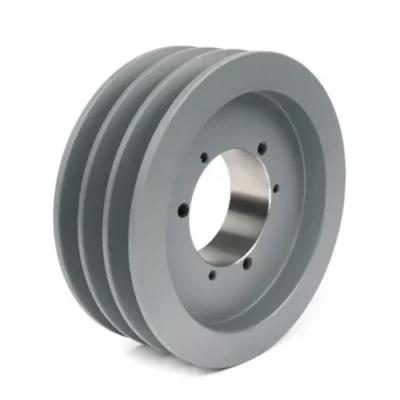

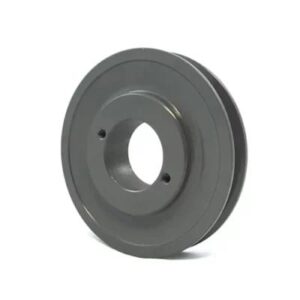

3B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with SH, SDS, SK, SF, or E QD bushings, which we also stock. Most of our three-groove 3B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don’t have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the “fixed-bore” style.
3B Style QD Bushed Pulley Size Chart

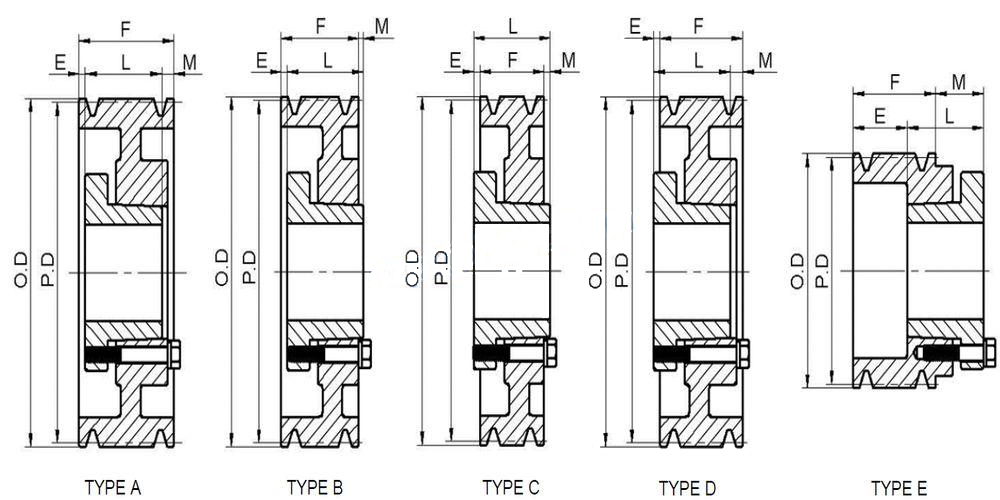

Size | Bushing Type | Pulley Type | Pitch Diameter (B) | Pitch Diameter (A) | Outside Diameter | (E) | (F) | (L) | (M) | Pulley Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|
3B34SH | SH | E | 3.4″ | 3.0″ | 3.75″ | 1-27/32″ | 2-1/2″ | 1-5/16″ | 21/32″ | 4.4 |
3B36SH | SH | D | 3.6″ | 3.2″ | 3.95″ | 15/32″ | 2-1/2″ | 1-5/16″ | 1-21/32″ | 4.7 |
3B38SH | SH | D | 3.8″ | 3.4″ | 4.15″ | 15/32″ | 2-1/2″ | 1-5/16″ | 1-21/32″ | 5.3 |
3B40SH | SH | D | 4.0″ | 3.6″ | 4.35″ | 15/32″ | 2-1/2″ | 1-5/16″ | 1-21/32″ | 5.6 |
3B42SH | SH | D | 4.2″ | 3.8″ | 4.55″ | 15/32″ | 2-1/2″ | 1-5/16″ | 1-21/32″ | 5.9 |
3B44SH | SH | D | 4.4″ | 4.0″ | 4.75″ | 15/32″ | 2-1/2″ | 1-5/16″ | 1-21/32″ | 6.3 |
3B46SD | SD | A | 4.6″ | 4.2″ | 4.95″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 6.7 |
3B48SD | SD | A | 4.8″ | 4.4″ | 5.15″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 7.1 |
3B50SD | SD | A | 5.0″ | 4.6″ | 5.35″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 7.4 |
3B52SD | SD | A | 5.2″ | 4.8″ | 5.55″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 7.8 |
3B54SD | SD | A | 5.4″ | 5.0″ | 5.75″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 8.2 |
3B56SD | SD | A | 5.6″ | 5.2″ | 5.95″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 8.5 |
3B58SD | SD | A | 5.8″ | 5.4″ | 6.15″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 8.8 |
3B60SD | SD | A | 6.0″ | 5.6″ | 6.35″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 9.1 |
3B62SD | SD | A | 6.2″ | 5.8″ | 6.55″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 9.4 |
3B64SD | SD | A | 6.4″ | 6.0″ | 6.75″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 9.7 |
3B66SD | SD | A | 6.6″ | 6.2″ | 6.95″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 10.0 |
3B68SD | SD | B | 6.8″ | 6.4″ | 7.15″ | 13/32″ | 2-1/2″ | 1-13/16″ | 9/32″ | 10.5 |
3B70SK | SK | D | 7.0″ | 6.6″ | 7.35″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 11.0 |
3B74SK | SK | D | 7.4″ | 7.0″ | 7.75″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 12.0 |
3B80SK | SK | D | 8.0″ | 7.6″ | 8.35″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 12.5 |
3B86SK | SK | D | 8.6″ | 8.2″ | 8.95″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 13.0 |
3B94SK | SK | D | 9.4″ | 9.0″ | 9.75″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 16.0 |
3B110SK | SK | D | 11.0″ | 10.6″ | 11.35″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 19.0 |
3B124SK | SK | D | 12.4″ | 12.0″ | 12.75″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 24.0 |
3B136SK | SK | D | 13.6″ | 13.2″ | 13.95″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 27.0 |
3B154SK | SK | D | 15.4″ | 15.0″ | 15.75″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 30.0 |
3B160SK | SK | D | 16.0″ | 15.6″ | 16.35″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 33.0 |
3B184SK | SK | D | 18.4″ | 18.0″ | 18.75″ | 3/32″ | 2-1/2″ | 1-15/16″ | 21/32″ | 38.0 |
3B200SF | SF | D | 20.0″ | 19.6″ | 20.35″ | 7/32″ | 2-1/2″ | 2-1/16″ | 21/32″ | 43.0 |
3B250SF | SF | D | 25.0″ | 24.6″ | 25.35″ | 7/32″ | 2-1/2″ | 2-1/16″ | 21/32″ | 54.0 |
3B300SF | SF | D | 30.0″ | 29.6″ | 30.35″ | 7/32″ | 2-1/2″ | 2-1/16″ | 21/32″ | 67.0 |
3B380E | E | D | 38.0″ | 37.6″ | 38.35″ | 17/32″ | 2-1/2″ | 2-3/4″ | 9/32″ | 90.0 |
A-B Combination QD Bushing Type Pulleys
- A-B Combination Pulleys are offered in 1 through 10 grooves
- QD Bushings provide inventory flexibility by just changing out the bore size of the bushing.
- Combination groove on the A-B Sheaves can accommodate a wide assortment of belts (4L, 5L, A, AX, B & BX) for maximum flexibility and horsepower range
- Sheaves are balanced & accurately machined to minimize vibration
- Largest selection of products of any Sheave Manufacturer assurance to have the best effect for specific application and most economical drive design
- First in the industry to provide sheaves with the durability of a powder coat paint, which protects products from rusting in high moisture environments
How is QD Bushing Different from Taper Bushing?
QD bushing is also known as flange bushing. There are specific differences between Taper bushing and QD bushing. The primary difference between the two types of the bushing is the existence of a flange in QD bushing. The QD style has a flange around the outside diameter, whereas, in the case of taper lock, the bushing has straight sides on the outer diameter.
QD bushing uses the external hex to drive it into the bore of the component that has been installed. In the case of taper bushing, the internal head cap screw is used to drive it into the bore that has been installed. Using external hex by QD bushing helps get a larger bore capacity than taper lock bushing.
The difference between the QD bushing and taper bushing is mainly due to the existence of an external key. This helps QD bushing to have excellent torque carrying capability.
