3C Series QD Sheaves

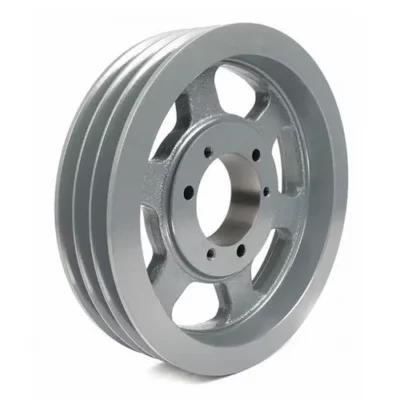

3C series three-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 5.40″ to 50.40″ in diameter. Depending on the sheave size, they are made to use SD, SF, E, or F QD (quick detachable) bushings, which we also stock. Most of our 3C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
3C QD Sheave Size Chart
3C Series QD Sheaves Details
|
Size
|
Bushing Type
|
Type
|
Pitch Diameter
|
Outside Diameter
|
(E)
|
(F)
|
(L)
|
(M)
|
Sheave Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|
| 3C50SD | SD | A | 5.0″ | 5.40″ | 19/32″ | 3-1/4″ | 1-13/16″ | 27/32″ | 10 |
| 3C55SD | SD | A | 5.5″ | 5.90″ | 19/32″ | 3-1/4″ | 1-13/16″ | 27/32″ | 12 |
| 3C60SF | SF | D | 6.0″ | 6.40″ | 23/32″ | 3-1/4″ | 2-1/16″ | 1-29/32″ | 15 |
| 3C70SF | SF | A | 7.0″ | 7.40″ | 13/32″ | 3-1/4″ | 2-1/16″ | 25/32″ | 18 |
| 3C75SF | SF | A | 7.5″ | 7.90″ | 13/32″ | 3-1/4″ | 2-1/16″ | 25/32″ | 20 |
| 3C80E | E | B | 8.0″ | 8.40″ | 17/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 26 |
| 3C85E | E | B | 8.5″ | 8.90″ | 17/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 29 |
| 3C90E | E | A | 9.0″ | 9.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 32 |
| 3C95E | E | A | 9.5″ | 9.90″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 34 |
| 3C100E | E | A | 10.0″ | 10.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 36 |
| 3C105E | E | A | 10.5″ | 10.90″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 38 |
| 3C110E | E | A | 11.0″ | 11.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 40 |
| 3C120E | E | A | 12.0″ | 12.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 43 |
| 3C130E | E | A | 13.0″ | 13.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 45 |
| 3C140E | E | A | 14.0″ | 14.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 51 |
| 3C160E | E | A | 16.0″ | 16.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 59 |
| 3C180E | E | A | 18.0″ | 18.40″ | 15/32″ | 3-1/4″ | 2-3/4″ | 1/32″ | 65 |
| 3C200E | E | D | 20.0″ | 20.40″ | 7/32″ | 3-1/4″ | 2-3/4″ | 23/32″ | 70 |
| 3C240E | E | D | 24.0″ | 24.40″ | 7/32″ | 3-1/4″ | 2-3/4″ | 23/32″ | 80 |
| 3C270F | F | D | 27.0″ | 27.40″ | 21/32″ | 3-1/4″ | 3-3/4″ | 5/32″ | 105 |
| 3C300F | F | D | 30.0″ | 30.40″ | 21/32″ | 3-1/4″ | 3-3/4″ | 5/32″ | 120 |
| 3C360F | F | D | 36.0″ | 36.40″ | 21/32″ | 3-1/4″ | 3-3/4″ | 5/32″ | 140 |
| 3C440F | F | D | 44.0″ | 44.40″ | 21/32″ | 3-1/4″ | 3-3/4″ | 5/32″ | 170 |
| 3C500F | F | D | 50.0″ | 50.40″ | 21/32″ | 3-1/4″ | 3-3/4″ | 5/32″ | 190 |
C Series QD Bushing Type Pulleys
Series C heavy-duty pulleys are offered in 1 through 12 grooves QD inch bushings, and QD metric bushings style provides the flexibility of inventory by changing the bore size of the bushing. C groove sheaves see our wide assortment of C belts for maximum flexibility and horsepower range. Sheaves are balanced & accurately machined to minimize vibration. Any sheave manufacturer’s largest selection of products guarantees the best effect for specific applications and the most economical drive design. First in the industry to provide sheaves with the durability of a powder coat paint which protects the product from rusting in high moisture environments. If you need help, contact us.
