3TC Series Sheaves with Split Taper Bushings

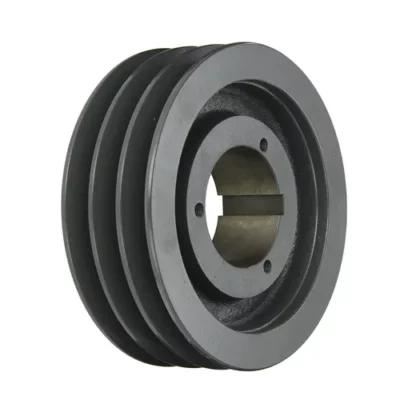

3TC series three-groove sheaves(3TC Series Sheaves with Split Taper Bushings) are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q1 taper bushings, which we also stock. Most of our 3TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
3TC Series Sheaves with Split Taper Bushings Size Chart

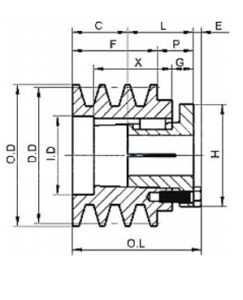

Size | Bushing Type | Pitch Diameter | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Sheave Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3TC70 | Q1 | 7″ | 7.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 16.8 |
3TC72 | Q1 | 7.2″ | 7.6″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 18 |
3TC74 | Q1 | 7.4″ | 7.8″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 19.1 |
3TC76 | Q1 | 7.6″ | 8″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 21.3 |
3TC78 | Q1 | 7.8″ | 8.2″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 17.4 |
3TC80 | Q1 | 8″ | 8.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 17.8 |
3TC82 |
Q1 | 8.2″ | 8.6″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 17.9 |
3TC84 | Q1 | 8.4″ | 8.8″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 20.4 |
3TC86 | Q1 | 8.6″ | 9″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 19.5 |
3TC88 | Q1 | 8.8″ | 9.2″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 22.5 |
3TC90 | Q1 | 9″ | 9.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 20.4 |
3TC92 | Q1 | 9.2″ | 9.6″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 22.8 |
3TC94 | Q1 | 9.4″ | 9.8″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 23 |
3TC96 | Q1 | 9.6″ | 10″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 25.3 |
3TC98 | Q1 | 9.8″ | 10.2″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 24.4 |
3TC100 | Q1 | 10″ | 10.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 27.6 |
3TC102 | Q1 | 10.2″ | 10.6″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 24.9 |
3TC106 | Q1 | 10.6″ | 11″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 26.9 |
3TC110 | Q1 | 11″ | 11.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 27.4 |
3TC114 |
Q1 | 11.4″ | 11.8″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 28.3 |
3TC120 | Q1 | 12″ | 12.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 30.3 |
3TC130 | Q1 | 13″ | 13.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 34.9 |
3TC160 | Q1 | 16″ | 16.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 46 |
3TC200 | Q1 | 20″ | 20.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 54.5 |
3TC240 | Q1 | 24″ | 24.4″ | 13 | 3 17/32″ | 2 1/2″ | 0″ | 3/4″ | 4 1/8″ | 3 1/4″ | 3/4″ | 1 3/4″ | 9/32″ | 71 |
Features of 3TC Series Sheaves:
a* Easy Installation & remove
b* Reduce wear and extend belt life
c* Increase the versatility of the product * Reduce noise
V-belt Pulley Introduce:
V- belt pulley of different types ( according to type and width of belts). The material: cast iron EN-GJL-250 UNI EN 1561, and for only a few types, it is steel C45 E UNI EN 10083-1. They have a small preborn is according to customers’ requirements. Moreover, the most common types are available also with a taper lock bore.
V belt pulley specifications
(1) European standards :
a) V-belt pulley for taper bushing: SPZ, SPA, SPB, SPC
b) Adjustable speed V-belt pulleys and variable speed pulleys
c) Flat belt pulleys and conveyor belt pulleys
(2) American standard:
a) Sheaves for taper bushing: 3V, 5V, 8V
b) Sheaves for QD bushings: 3V, 5V, 8V
c) Sheaves for split taper bushing: 3V, 5V, 8V
d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K, and M
1. Bore: pilot bore, finish bore, taper bore, bore for QD bushing
2. Parts is according to drawings and/or samples
3. we can offer the rang size diameter of 62MM~2000MM
