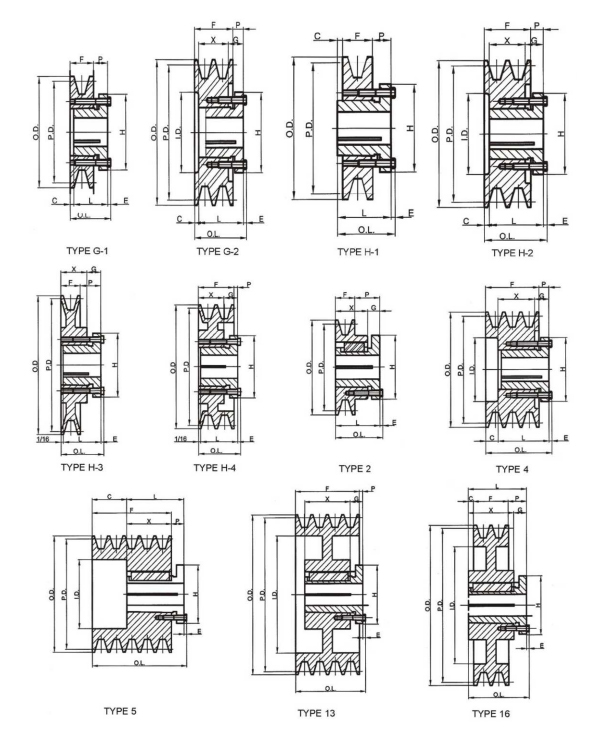

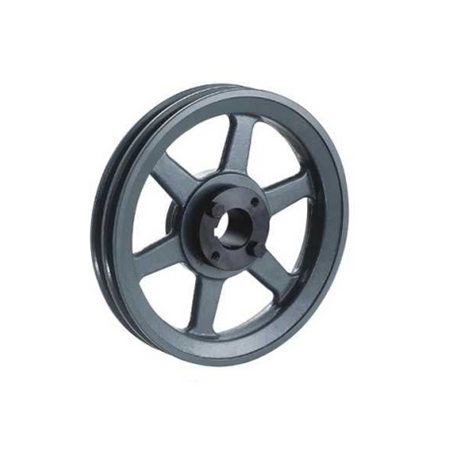

3V Gripbelt Sheaves with Split Taper Bushings
3V Gripbelt Sheaves with Split Taper Bushings
| Table No. 1 | Table No.2 | ||
| Bushing | Bore Range | Bore Range | Keyseat |
| G | 3/8″ —1″ | 3/8″ — 7/16″ | None |
| H | 3/8 — 1 1/2 | 1/2 — 9/16 | 1/8″ x 1/16″ |
| P1 | 1/2 — 1 3/4 | 5/8 — 7/8 | 3/16 x 3/32 |
| Q1 | 3/4 —2 11/16 | 15/16 — 1 1/4 | 1/4 x 1/8 |
| R1 | 1 1/8 — 3 3/4 | 1 5/16 — 1 3/8 | 5/16 x 5/32 |
| S1 | 1 11/16 — 4 1/4 | 1 7/16__—1 3/4″ | 3/8″ x 3/16″ |
| 1 13/16 — 2 1/4 | 1/2 x 1/4 | ||
| 2 5/16 — 2 3/4 | 5/8×5/16 | ||
| 213/16 — 31/4 | 3/4 x 3/8 | ||
| 3 3/8 — 3 3/4 | 7/8 x 7/16 | ||
| 3 7/8 — 4 1/4 | 1 x 1/2 |
Table No.3
1 3/8″ Bore Bushings (except R2) are available with 3/8×3/16″ Keyseat
Specifications_Stock “3V” Sheaves
| DIAMETERS | Part Number | Type | Dimensions | Wt.lncl
Bush. |
||||||||||
| Pitch
“3V” Belts |
Outside | Inside | Sheave | Bushing | O.L. | L | p | c | H | G | X | E | ||
| 1 GROOVE, F = | 11/16″ | |||||||||||||
| 2.60″ | 2.65″ | — | 1G3V26 | G | G-1 | 1 5/16″ | 1″ | 7/16″ | 1/8″ | 2″ | — | — | 3/16″ | .6 |
| 2.75 | 2.80 | — | 1G3V28 | G | G-1 | 1 5/16 | 1 | 7/16 | 1/8 | 2 | — | — | 3/16 | .7 |
| 2.95 | 3.00 | — | 1G3V30 | G | G-1 | 15/16 | 1 | 7/16 | 1/8 | 2 | — | — | 3/16 | .9 |
| 3.10 | 3.15 | — | 1H3V31 | H | H-1 | 1 7/16 | 1 1/4 | 7/16 | 1/8 | 2 1/2 | — | — | 3/16 | .8 |
| 3.30 | 3.35 | — | 1H3V33 | H | H-1 | 1 7/16 | 1 1/4 | 7/16 | 1/8 | 2 1/2 | — | — | 3/16 | .9 |
| 3.60 | 3.65 | 一 | 1H3V36 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16″ | 7/8″ | 3/16 | 1.4 |
| 3.60 | 3.65 | — | 1P3V36 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | — | 3 | 5/8 | 1 5/16 | 1/4 | 2.0 |
| 4.07 | 4.12 | — | 1H3V41 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16 | 7/8 | 3/16 | 1.9 |
4.07 |
4.12 | — | 1P3V41 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | — | 3 | 5/8 | 1 5/16 | 1/4 | 2.6 |
| 4.45 | 4.50 | — | 1H3V45 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16 | 7/8 | 3/16 | 2.2 |
| 4.45 | 4.50 | _ | 1P3V45 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | 一 | 3 | 5/8 | 1 5/16 | 1/4 | 3.0 |
| 4.70 | 4.75 | — | 1H3V47 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16 | 7/8 | 3/16 | 2.4 |
| 4.70 | 4.75 | — | 1P3V47 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | — | 3 | 5/8 | 1 5/16 | 1/4 | 3.5 |
| 4.95 | 5.00 | — | 1H3V50 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16 | 7/8 | 3/16 | 2.6 |
| 4.95 | 5.00 | — | 1P3V50 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | — | 3 | 5/8 | 1 5/16 | 1/4 | 3.8 |
| 5.25 | 5.30 | 一 | 1H3V53 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | _ | 2 1/2 | 7/16 | 7/8 | 3/16 | 2.5 |
| 5.25 | 5.30 | — | 1P3V53 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | — | 3 | 5/8 | 1 5/16 | 1/4 | 4.2 |
5.55 |
5.60 | — | 1H3V56 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16 | 7/8 | 3/16 | 2.6 |
| 5.55 | 5.60 | — | 1P3V56 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | — | 3 | 5/8 | 1 5/16 | 1/4 | 4.6 |
| 5.95 | 6.00 | — | 1H3V60 | H | H-3 | 1 1/2 | 1 1/4 | 5/8 | — | 2 1/2 | 7/16 | 7/8 | 3/16 | 2.9 |
| 5.95 | 6.00 | 一 | 1P3V60 | P1 | 2 | 2 3/16 | 1 15/16 | 1 1/4 | _ | 3 | 5/8 | 1 5/16 | 1/4 | 5.3 |
| 6.45 | 6.50 | 5 1/4″ | 1P3V65 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 5/8 | 1 5/16 | 1/4 | 5.5 |
| 6.85 | 6.90 | 5 5/8 | 1P3V69 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 5/8 | 1 5/16 | 1/4 | 4.9 |
| 7.95 | 8.00 | 6 1/2 | 1P3V80 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 5/8 | 1 5/16 | 1/4 | 6.5 |
| 10.55 | 10.60 | 9 3/8 | 1P3V106 | P1 | 16-Arm | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 5/8 | 1 5/16 | 1/4 | 7.8 |
| 13.95 | 14.00 | 12 3/4 | 1Q3V140 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 9/32 | 17/32 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 18.1 |
| 18.95 | 19.00 | 17 3/4 | 1Q3V190 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 9/32 | 17/32 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 26.3 |
| 24.95 | 25.00 | 23 5/8 | 1Q3V250 | Q1 | 16-Arm | 2 25/32 | 2 1/2 | 1 9/32 | 17/32 | 4 1/8 | 3/4 | 1 3/4 | 9/32 | 38.3 |
3V Gripbelt Sheaves with Split Taper Bushings
Table No.1
Specifications—Stock “3V” Sheaves
DIAMETERS Part Number Dimensions Wt. Pitch “3V” Belts Outside Inside Sheave Bushing Type O.L. L P C H G X E Less. Bush.
2 GROOVES，F = 1 3/32” 3 GROOV ES, F = 1 1/2″ 4 GROOVES, F =1 29/32” 2.60″ 2.65″ — 2G3V26 G G-2 1 19/32″ 1″ 5/16″ 13/32″ 2″ 7/16″ 31/32″ 3/16″ .8 2.75 2.80 — 2G3V28 G G-2 1 19/32 1 5/16 13/32 2 7/16 31/32 3/16 .9 2.95 3.00 — 2G3V30 G G-2 1 19/32 1 5/16 13/32 2 7/16 31/32 3/16 1.3 3.10 3.15 2 2H3V31 H H-2 1 19/32 1 1/4 3/8 7/32 2 1/2 7/16 13/16 3/16 .9 3.30 3.35 2 2H3V33 H H-2 1 19/32 1 1/4 3/8 7/32 2 1/2 7/16 13/16 3/16 1.3 3.60 3.65 — 2H3V36 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 1.6 3.60 3.65 — 2P3V36 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 1 5/16 1/4 2.0 4.07 4.12 — 2H3V41 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 2.3 4.07 4.12 — 2P3V41 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 15/16 1/4 2.8 4.45 4.50 _ 2H3V45 H H-4 1 1/2 1 1/4 7/32 _ 2 1/2 7/16 7/8 3/16 2.8 4.45 4.50 — 2P3V45 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 15/16 1/4 3.5 4.70 4.75 — 2H3V47 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 3.1 4.70 4.75 — 2P3V47 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 15/16 1/4 4.0 4.95 5.00 — 2H3V50 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 3.4 4.95 5.00 — 2P3V50 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 1 5/16 1/4 4.6 5.25 5.30 — 2H3V53 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 3.7 5.25 5.30 — 2P3V53 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 15/16 1/4 5.6 5.55 5.60 — 2H3V56 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 3.1 5.55 5.60 — 2P3V56 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 1 5/16 1/4 6.0 5.95 6.00 — 2H3V60 H H-4 1 1/2 1 1/4 7/32 — 2 1/2 7/16 7/8 3/16 3.6 5.95 6.00 — 2P3V60 P1 2 2 3/16 1 15/16 27/32 — 3 5/8 15/16 1/4 6.8 6.45 6.50 5 1/4″ 2Q3V65 Q1 16-Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 8.3 6.85 6.90 5 5/8 2Q3V69 Q1 16-Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 9.8 7.95 8.00 61/2 2Q3V80 Q1 16-Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 10.80 10.55 10.60 9 3/8 2Q3V106 Q1 16-Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 13.5 13.95 14.00 12 3/4 2Q3V140 Q1 16-Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 22.5 18.95 19.00 17 3/4 2Q3V190 Q1 16, Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 28.9 24.95 25.00 23 5/8 2Q3V250 Q1 16-Arm 2 25/32 2 1/2 1 5/64 21/64 4 1/8 3/4 1 3/4 9/32 43.5 Table No.2
2.60″ 2.65″ — 3G3V26 G G-2 2″ 1″ 5/16″ 13/16″ 2″ 7/16″ 1 3/8″ 3/16″ 1.1 2.75 2.80 _ 3G3V28 G G-2 2 1 5/16 13/16 2 7/16 1 3/8 3/16 1.6 2.95 3.00 — 3G3V30 G G-2 2 1 5/16 13/16 2 7/16 1 3/8 3/16 1.8 3.10 3.15 — 3H3V31 H H-2 2 1 1/4 5/16 9/16 2 1/2 7/16 1 3/8 3/16 1.4 3.30 3.35 — 3H3V33 H H-2 2 1 1/4 5/16 9/16 2 1/2 7/16 1 3/8 3/16 1.8 3.60 3.65 2 3/16″ 3P3V36 P1 5 2 3/8 1 15/16 5/8 3/16 3 — 1 5/16 1/4 2.5 4.07 4.12 2 9/16 3P3V41 P1 5 2 3/8 1 15/16 5/8 3/16 3 — 1 5/16 1/4 3.0 4.45 4.50 3 5/16 3P3V45 P1 13-Sol. 2 3/16 1 15/16 7/16 0 3 5/8 1 5/16 1/4 3.9 4.70 4.75 3 1/2 3P3V47 P1 13-Sol. 2 3/16 1 15/16 7/16 0 3 5/8 1 5/16 1/4 4.4 4.95 5.00 3 13/16 3P3V50 P1 13-Sol. 2 3/16 1 15/16 7/16 0 3 5/8 1 5/16 1/4 4.9 5.25 5.30 4 1/8 3P3V53 P1 13-Sol. 2 3/16 1 15/16 7/16 0 3 5/8 1 5/16 1/4 5.9 5.55 5.60 4 3/8 3P3V56 P1 13-Sol. 2 3/16 1 15/16 7/16 0 3 5/8 1 5/16 1/4 7.5 5.95 6.00 4 13/16 3P3V60 P1 13-Sol. 2 3/16 1 15/16 7/16 0 3 5/8 1 5/16 1/4 8.0 6.45 6.50 51/4 3Q3V65 Q1 16-Sol. 2 25/32 2 1/2 7/8 1/8 4 1/8 3/4 1 3/4 9/32 9.9 6.85 6.90 5 5/8 3Q3V69 Q1 16-Sol. 2 25/32 2 1/2 7/8 1/8 4 1/8 3/4 1 3/4 9/32 11.3 7.95 8.00 61/2 3Q3V80 Q1 16-Web 2 25/32 2 1/2 7/8 1/8 4 1/8 3/4 1 3/4 9/32 11.9 10.55 10.60 9 3/8 3Q3V106 Q1 16-Arm 2 25/32 2 1/2 7/8 1/8 4 1/8 3/4 1 3/4 9/32 15.1 13.95 14.00 12 3/4 3Q3V140 Q1 16-Arm 2 25/32 2 1/2 7/8 1/8 4 1/8 3/4 1 3/4 9/32 24.5 18.95 19.00 17 3/4 3R3V190 R1 16-Arm 3 5/32 2 7/8 1 1/8 1/4 5 3/8 7/8 2 9/32 35.1 24.95 25.00 23 5/8 3R3V250 R1 16-Arm 3 5/32 2 7/8 1 1/8 1/4 5 3/8 7/8 2 9/32 55.0 33.45 33.50 32 1/4 3R3V335 R1 16-Arm 3 5/32 2 7/8 1 1/8 1/4 5 3/8 7/8 2 9/32 80.0 Table No.3
2.60″ 2.65″ 1 3/8″ 4G3V26 G 4 2 13/32″ 1″ 5/16″ 1 7/32″ 2″ 7/16″ 1 1/2″ 3/16″ 1.4 2.75 2.80 1 3/8 4G3V28 G 4 2 13/32 1 5/16 1 7/32 2 7/16 1 1/2 3/16 1.8 2.95 3.00 1 3/8 4G3V30 G 4 2 13/32 1 5/16 1 7/32 2 7/16 1 1/2 3/16 2.1 3.10 3.15 1 3/4 4H3V31 H 4 2 13/32 1 1/4 5/16 31/32 2 1/2 7/16 31/32 3/16 1.8 3.30 3.35 2 4H3V33 H 4 2 13/32 1 1/4 5/16 31/32 2 1/2 7/16 31/32 3/16 2.3 3.60 3.65 2 3/16 4P3V36 P1 5 2 25/32 1 15/16 5/8 19/32 3 — 1 5/16 1/4 2.8 4.07 4.12 2 9/16 4P3V41 P1 5 2 25/32 1 15/16 5/8 19/32 3 — 1 5/16 1/4 3.7 4.45 4.50 3 5/16 4P3V45 P1 13-Sol. 2 3/16 1 15/16 1/32 0 3 5/8 1 5/16 1/4 4.4 4.70 4.75 3 1/2 4P3V47 P1 13-Sol. 2 3/16 1 15/16 1/32 0 3 5/8 1 5/16 1/4 5.1 4.95 5.00 3 13/16 4P3V50 P1 13-Sol. 2 3/16 1 15/16 1/32 0 3 5/8 1 5/16 1/4 5.8 5.25 5.30 4 1/8 4P3V53 P1 13-Sol. 2 3/16 1 15/16 1/32 0 3 5/8 1 5/16 1/4 6.5 5.55 5.60 4 3/8 4P3V56 P1 13-Sol. 2 3/16 1 15/16 1/32 0 3 5/8 15/16 1/4 8.1 5.95 6.00 4 3/4 4Q3V60 Q1 13-Sol. 2 25/32 2 1/2 19/32 0 4 1/8 3/4 1 3/4 9/32 9.0 6.45 6.50 51/4 4Q3V65 Q1 13-Web 2 55/64 2 1/2 43/64 5/64 4 1/8 3/4 1 3/4 9/32 11.1 6.85 6.90 5 5/8 4Q3V69 Q1 13-Web 2 55/64 2 1/2 43/64 5/64 4 1/8 3/4 1 3/4 9/32 12.9 7.95 8.00 61/2 4Q3V80 Q1 13-Web 2 55/64 2 1/2 43/64 5/64 4 1/8 3/4 1 3/4 9/32 13.1 10.55 10.60 9 3/8 4Q3V106 Q1 13-Arm 2 55/64 2 1/2 43/64 5/64 4 1/8 3/4 1 3/4 9/32 15.9 13.95 14.00 12 3/4 4Q3V140 Q1 13-Arm 2 55/64 2 1/2 43/64 5/64 4 1/8 3/4 1 3/4 9/32 25.4 18.95 19.00 17 3/4 4R3V190 R1 16-Arm 3 5/32 2 7/8 63/64 3/64 5 3/8 7/8 2 9/32 37.3 24.95 25.00 23 5/8 4R3V250 R1 16-Arm 3 5/32 2 7/8 63/64 3/64 5 3/8 7/8 2 9/32 60.0 33.45 33.50 32 1/4 4R3V335 R1 16-Arm 3 5/32 2 7/8 63/64 3/64 5 3/8 7/8 2 9/32 88.0
Sheaves with Split Taper Bushings
Table No. 1
Specifications—Stock “3V” Sheaves
DIAMETERS Part Number Dimensions wt. Less.
Bush.
Pitch “3V”
Outside Inside Sheave Bushing Type 〇.L. L p c H G X E Belts 5 GROOVES, F = 2 5/16″ 6 GROOVES, F = 2 23/32″ 8 GROOVES, F = 3 17/32″ 10 GROOVES F = 4 11/32″ 4.70 4.75″ 3 1/2″ 5P3V47 P1 13-Web 2 9/16″ 1 15/16″ 0 3/8″ 3″ 5/8″ 15/16″ 1/4″ 5.6 4.95 5.00 3 13/16 5P3V50 P1 13-Web 2 9/16 1 15/16 0 3/8 3 5/8 1 5/16 1/4 6.0 5.25 5.30 4 1/8 5P3V53 P1 13-Web 2 9/16 1 15/16 0 3/8 3 5/8 1 5/16 1/4 7.1 5.55 5.60 4 3/8 5P3V56 P1 13-Web 2 9/16 1 15/16 0 3/8 3 5/8 1 5/16 1/4 8.1 5.95 6.00 4 3/4 5Q3V60 Q1 13-Web 2 25/32 2 1/2 3/16″ 0 4 1/8 3/4 1 3/4 9/32 9.5 6.45 6.50 5 1/4 5Q3V65 Q1 13-Web 3 1/16 2 1/2 15/32 9/32 4 1/8 3/4 1 3/4 9/32 11.6 6.85 6.90 5 5/8 5Q3V69 Q1 13-Web 3 1/16 2 1/2 15/32 9/32 4 1/8 3/4 1 3/4 9/32 13.9 7.95 8.00 6 1/2 5Q3V80 Q1 13-Web 3 1/16 2 1/2 15/32 9/32 4 1/8 3/4 1 3/4 9/32 14.3 10.55 10.60 9 3/8 5Q3V106 Q1 13-Arm 3 1/16 2 1/2 15/32 9/32 4 1/8 3/4 1 3/4 9/32 17.5 13.95 14.00 12 3/4 5Q3V140 Q1 13-Arm 3 1/16 2 1/2 15/32 9/32 4 1/8 3/4 1 3/4 9/32 27.5 18.95 19.00 17 3/4 5R3V190 R1 13-Arm 3 5/16 2 7/8 23/32 5/32 5 3/8 7/8 2 9/32 40.9 24.95 25.00 23 5/8 5R3V250 R1 13-Arm 3 5/16 2 7/8 23/32 5/32 5 3/8 7/8 2 9/32 64.0 33.45 33.50 32 1/4 5R3V335 R1 13-Arm 3 5/16 2 7/8 23/32 5/32 5 3/8 7/8 2 9/32 92.0 Table No.2
4.70″ 4.75″ 3 1/2″ 6Q3V47 Q1 5 3 3/4″ 2 1/2″ 3/4″ 31/32″ 4 1/8″ 3/4″ 1 3/4″ 9/32″ 5.6 4.95 5.00 3 13/16 6Q3V50 Q1 5 3 3/4 2 1/2 3/4 31/32 4 1/8 3/4 1 3/4 9/32 6.1 5.25 5.30 4 1/8 6Q3V53 Q1 5 3 3/4 2 1/2 3/4 31/32 4 1/8 3/4 1 3/4 9/32 7.3 5.55 5.60 4 1/4 6Q3V56 Q1 13-Sol. 3 2 1/2 0 7/32 4 1/8 3/4 1 3/4 9/32 8.8 5.95 6.00 4 3/4 6Q3V60 Q1 13-Web 3 2 1/2 0 7/32 4 1/8 3/4 1 3/4 9/32 10.1 6.45 6.50 5 1/4 6Q3V65 Q1 13-Web 3 17/64 2 1/2 17/64 31/64 4 1/8 3/4 1 3/4 9/32 12.9 6.85 6.90 5 5/8 6Q3V69 Q1 13-Web 3 17/64 2 1/2 17/64 31/64 4 1/8 3/4 1 3/4 9/32 14.4 7.95 8.00 6 1/2 6Q3V80 Q1 13-Web 3 17/64 2 1/2 17/64 31/64 4 1/8 3/4 1 3/4 9/32 16.1 10.55 10.60 9 3/8 6R3V106 R1 13-Arm 3 33/64 2 7/8 33/64 23/64 5 3/8 7/8 2 9/32 22.4 13.95 14.00 12 3/4 6R3V140 R1 13-Arm 3 33/64 2 7/8 33/64 23/64 5 3/8 7/8 2 9/32 32.1 18.95 19.00 17 3/4 6R3V190 R1 13-Arm 3 33/64 2 7/8 33/64 23/64 5 3/8 7/8 2 9/32 42.8 24.95 25.00 23 5/8 6R3V250 R1 13-Arm 3 33/64 2 7/8 33/64 23/64 5 3/8 7/8 2 9/32 64.0 33.45 33.50 32 1/4 6R3V335 R1 13-Arm 3 33/64 2 7/8 33/64 23/64 5 3/8 7/8 2 9/32 99.0 Table No.3
4.70″ 4.75″ 3 1/2″ 8Q3V47 Q2 5 4 9/16″ 3 1/2″ 3/4″ 25/32″ 4 1/8″ 3/4″ 2 3/4″ 9/32″ 7.3 4.95 5.00 3 13/16 8Q3V50 Q2 5 4 9/16 3 1/2 3/4 25/32 4 1/8 3/4 2 3/4 9/32 8.6 5.25 5.30 4 1/8 8Q3V53 Q2 5 4 9/16 3 1/2 3/4 25/32 4 1/8 3/4 2 3/4 9/32 10.3 5.55 5.60 4 1/4 8Q3V56 Q2 15-Sol. 3 25/32 3 1/2 1/32 0 4 1/8 3/4 2 3/4 9/32 12.3 5.95 6.00 4 3/4 8Q3V60 Q2 15-Sol. 3 25/32 3 1/2 1/32 0 4 1/8 3/4 2 3/4 9/32 15.1 6.45 6.50 5 1/4 8Q3V65 Q2 13-Web 4 11/64 3 1/2 23/64 25/64 4 1/8 3/4 2 3/4 9/32 18.3 6.85 6.90 5 5/8 8Q3V69 Q2 13-Web 4 11/64 3 1/2 23/64 25/64 4 1/8 3/4 2 3/4 9/32 21.4 7.95 8.00 6 1/2 8R3V80 R1 13-Web 3 59/64 2 7/8 7/64 49/64 5 3/8 7/8 2 9/32 23.2 10.55 10.60 9 3/8 8R3V106 R1 13-Arm 3 59/64 2 7/8 7/64 49/64 5 3/8 7/8 2 9/32 24.5 13.95 14.00 12 3/4 8R3V140 R1 13-Arm 3 59/64 2 7/8 7/64 49/64 5 3/8 7/8 2 9/32 39.0 18.95 19.00 17 3/4 8R3V190 R1 13-Arm 3 59/64 2 7/8 7/64 49/64 5 3/8 7/8 2 9/32 49.0 24.95 25.00 23 5/8 8R3V250 R1 13-Arm 3 59/64 2 7/8 7/64 49/64 5 3/8 7/8 2 9/32 76.0 33.45 33.50 32 1/4 8S3V335 S1 13-Arm 4 55/64 4 3/8 61/64 7/64 6 3/8 1 1/16 3 5/16 3/8 126 Table No.4
4.70″ 4.75″ 3 1/2″ 10Q3V47 Q2 5 5 3/8″ 3 1/2″ 3/4″ 1 19/32″ 4 1/8″ 3/4″ 2 3/4″ 9/32″ 8.4 4.95 5.00 3 13/16 10Q3V50 Q2 5 5 3/8 3 1/2 3/4 1 19/32 4 1/8 3/4 2 3/4 9/32 9.9 5.25 5.30 4 1/8 10Q3V53 Q2 5 5 3/8 3 1/2 3/4 1 19/32 4 1/8 3/4 2 3/4 9/32 11.4 5.55 5.60 4 1/4 10Q3V56 Q2 13-Web 4 5/8 3 1/2 0 27/32 4 1/8 3/4 2 3/4 9/32 13.8 5.95 6.00 4 3/4 10Q3V60 Q2 13-Web 4 5/8 3 1/2 0 27/32 4 1/8 3/4 2 3/4 9/32 16.5 6.45 6.50 5 1/4 10Q3V65 Q2 15-Web 4 37/64 3 1/2 3/64 51/64 4 1/8 3/4 2 3/4 9/32 20.4 6.85 6.90 5 5/8 10Q3V69 Q2 15-Web 4 37/64 3 1/2 3/64 51/64 4 1/8 3/4 2 3/4 9/32 23.4 7.95 8.00 6 1/2 10R3V80 R1 15-Web 4 11/32 2 7/8 19/64 1 11/64 5 3/8 7/8 2 9/32 26.0 10.55 10.60 9 3/8 10R3V106 R1 15-Arm 4 11/32 2 7/8 19/64 1 11/64 5 3/8 7/8 2 9/32 28.4 13.95 14.00 12 3/4 10R3V140 R1 15-Arm 4 11/32 2 7/8 19/64 1 11/64 5 3/8 7/8 2 9/32 42.3 18.95 19.00 17 3/4 10R3V190 R1 15-Arm 4 11/32 2 7/8 19/64 1 11/64 5 3/8 7/8 2 9/32 54.0 24.95 25.00 23 5/8 10S3V250 S1 13-Arm 5 17/64 4 3/8 35/64 33/64 6 3/8 1 1/16 3 5/16 3/8 103 33.45 33.50 32 1/4 10S3V335 S1 13-Arm 5 17/64 4 3/8 35/64 33/64 6 3/8 1 1/16 3 5/16 3/8 138
