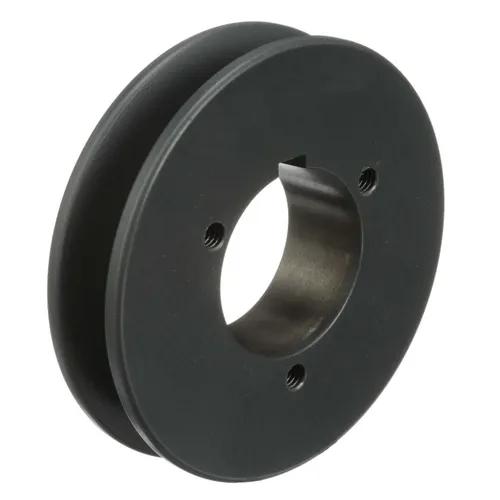

3V Series Cast Iron Single-Groove Sheaves with Split Taper Bushings
3V series single-groove taper bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 2.65″ to 25.0″ in diameter. Depending on the sheave size, they are made to use G, H, P1, or Q1 split-taper bushings, which we also stock. Most of our single-groove 3V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

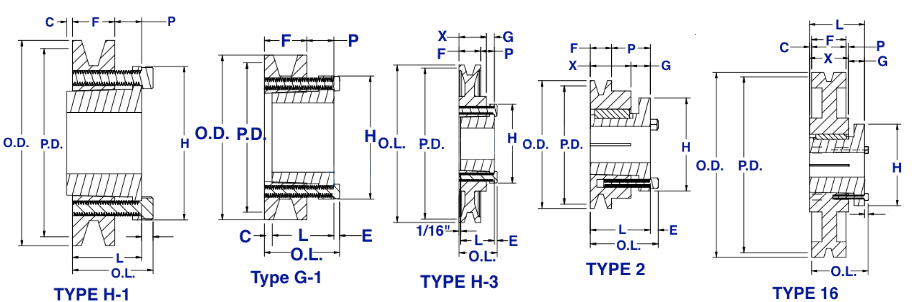

Single-Groove 3V Split Taper Sheave Size Chart
Size
|
Bushing Type
|
Pitch Diameter
|
Outside Diameter
|
Type
|
(O.L.)
|
(L)
|
(P)
|
(C)
|
(H)
|
(F)
|
(G)
|
(X)
|
(E)
|
Sheave Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1G3V26 | G | 2.60″ | 2.65 | G-1 | 1 5/16 | 1 | 7/16 | 1/8 | 2 | 11/16 | – | – | 3/16 | 0.6 |
1G3V28 | G | 2.75″ | 2.80″ | G-1 | 1 5/16 | 1 | 7/16 | 1/8 | 2 | 11/16 | – | – | 3/16 | 0.7 |
1G3V30 | G | 2.95″ | 3.00″ | G-1 | 1 5/16 | 1 | 7/16 | 1/8 | 2 | 11/16 | – | – | 3/16 | 0.9 |
1H3V31 | H | 3.10″ | 3.15″ | H-1 | 1 7/16 | 1 1/4 | 7/16 | 1/8 | 2 1/2 | 11/16 | – | – | 3/16 | 0.8 |
1H3V33 | H | 3.30″ | 3.35″ | H-1 | 1 7/16 | 1 1/4 | 7/16 | 1/8 | 2 1/2 | 11/16 | – | – | 3/16 | 0.9 |
1H3V36 | H | 3.60″ | 3.65″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 1.4 |
1P3V36 | P1 | 3.60″ | 3.65″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 2.0 |
1H3V41 | H | 4.07″ | 4.12″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 1.9 |
1P3V41 | P1 | 4.07″ | 4.12″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 2.6 |
1H3V45 | H | 4.45″ | 4.50″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 2.2 |
1P3V45 | P1 | 4.45″ | 4.50″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 3.0 |
1H3V47 | H | 4.70″ | 4.75″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 2.4 |
1P3V47 | P1 | 4.70″ | 4.75″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 3.5 |
1H3V50 | H | 4.95″ | 5.00″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 2.6 |
1P3V50 | P1 | 4.95″ | 5.00″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 3.8 |
1H3V53 | H | 5.25″ | 5.30″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 2.5 |
1P3V53 | P1 | 5.25″ | 5.30″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 4.2 |
1H3V56 | H | 5.55″ | 5.60″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 2.6 |
1P3V56 | P1 | 5.55″ | 5.60″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 4.6 |
1H3V60 | H | 5.95″ | 6.00″ | H-3 | 1 1/2 | 1 1/4 | 5/8 | – | 2 1/2 | 11/16 | 7/16 | 7/8 | 3/16 | 2.9 |
1P3V60 | P1 | 5.95″ | 6.00″ | 2 | 2 3/16 | 1 15/16 | 1 1/4 | – | 3 | 11/16 | 5/8 | 1 5/16 | 1/45 | 5.3 |
1P3V65 | P1 | 6.45″ | 6.50″ | 16 | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 5.5 |
1P3V69 | P1 | 6.85″ | 6.90″ | 16 | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 4.9 |
1P3V80 | P1 | 7.95″ | 8.00″ | 16 | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 6.5 |
1P3V106 | P1 | 10.55″ | 10.60″ | 16 | 2 3/16 | 1 15/16 | 15/16 | 5/16 | 3 | 11/16 | 5/8 | 1 5/16 | 1/4 | 7.8 |
1Q3V140 | Q1 | 13.95″ | 14.00″ | 16 | 2 25/32 | 2 1/2 | 1 9/32 | 1 7/32 | 4 1/8 | 11/16 | 3/4 | 1 3/4 | 9/32 | 18.1 |
1Q3V190 | Q1 | 18.95″ | 19.00″ | 16 | 2 25/32 | 2 1/2 | 1 9/32 | 1 7/32 | 4 1/8 | 11/16 | 3/4 | 1 3/4 | 9/32 | 26.3 |
1Q3V250 | Q1 | 24.95″ | 25.00″ | 16 | 2 25/32 | 2 1/2 | 1 9/32 | 1 7/32 | 4 1/8 | 11/16 | 3/4 | 1 3/4 | 9/32 | 38.3 |
Related Matching Use 3V, 3VX Series V-Belt
(1) 3V-Series V-Belts
Classic 3V-Series V-Belts have a 0.38″ top-width, 0.31″ thickness, and a 38° angle, which also classifies them as a deep-wedge v-belt. 3V series belts are designed to be more compact with more drive capability than the standard 40° angle v-belts. Because of their long-term success and economical operation, they are also one of the industry’s most widely used belt series. The premium 3V-series v-belts we supply are manufactured under ISO 9001 specifications and ARPM Standards; they are oil and heat-resistant and directly interchange with other brands. 3V belts are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 3V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment. We also stock a complete line of high-power v-belts and accompanying v belt pulleys/ sheaves.
(2) 3V-Series Banded V-Belts
3V-series v-belts are a part of the “classic” lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured following ARPM standards and offer superior strength, durability, and performance. 3V-series v-belts have a 0.38″ top-width per belt (band/ rib).
(3) 3VX Cogged V-Belts
3VX cogged v-belts are designated by having a 0.38″ top-width and 0.31″ thickness. Our cogged 3VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 3VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves. Please contact us to get a quote on 3VX cogged v-belts or pulleys, and we will be happy to assist you.
(4) 3VX Banded Cogged V-Belts
All of our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 3VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs.
Related Accessories Split Taper Bushings
Bushing Type
|
(D)
|
(L)
|
(A)
|
(B)
|
(G)
|
(B.C)
|
(W)
|
Type-1 Bore Range
|
Type-2 Bore Range
|
Cap Screw No.
|
Cap Screw Size
|
Avg. Weight (LBS)
|
Wrench Torque (In/ LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G | 2″ | 1.00″ | 0.25″ | 1.172″ | 0.19″ | 1.56″ | — | 0.375″ – 0.938″ | 1″ | 2 | 0.25″ X 0.625″ | 0.5 | 95 |
H | 2.5″ | 1.25″ | 0.25″ | 1.625″ | 0.19″ | 2″ | — | 0.375″ – 1.375″ | 1.438″ – 1.5″ | 2 | 0.25″ X 0.75″ | 0.8 | 95 |
P1 | 3″ | 1.94″ | 0.41″ | 1.938″ | 0.22″ | 2.44″ | 0.375″ | 0.5″ – 1.438″ | 1.5″ – 1.75″ | 3 | 0.313″ X 1″ | 1.3 | 192 |
Q1 | 4.12″ | 2.50″ | 0.53″ | 2.875″ | 0.22″ | 3.38″ | 0.500″ | 0.75″ – 2.063″ | 2.125″ – 2.688″ | 3 | 0.375″ X 1.25″ | 3.5 | 348 |
Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375″ up to 7.438″. For additional information or to get a quote on our high-strength split taper bushings, please get in touch with our customer support team, and we will be happy to assist you.
Types of V-Belt Pulley
1) European standard:
a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC,2BKH; up to 10 grooves
b) Adjustable speed V-belt pulleys and variable speed pulleys
c) Flat belt pulleys and conveyor belt pulleys
2) American standard:
a) Sheaves for taper bushings: 3V, 5V, 8V
b) Sheaves for QD bushings: 3V, 5V, 8V
c) Sheaves for split taper bushings: 3V, 5V, 8V
d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K, and M
Parts can be made according to drawings and samples
OEM service is welcomed
3) Bore: pilot bore, finished bore, taper bore, bore for QD bushing
4) Surface finish: paint, phosphating, zinc plated
5) Material: cast iron, ductile iron, nylon, aluminum
6) Made according to drawings and samples, OEM inquiries are welcomed.
Applications of V-Belt Pulley:
Mainly used in the mining, metallurgical, cement, chemicals, construction, building materials, electric power, telecommunications, textiles, and transportation departments.
Such as:
- conveyor: Belt conveyor, AFC conveyor, chain conveyor, screw conveyor.
- Pum: Water pump, oil pump, slush pump, etc.
- Fan: Draft fan, fanner, boil fan, etc.
- Excator: bucket excavator bucket, wheel excavators.
- Crane: Tower crane, gantry crane, bridge crane.
- Others: Various elevators, coal plows, ball mills, crushers, and recreation machines.
- Blender equipment, centrifuge, washer, leather-making machine, and recreation park mixer wire drawing machine. Extruder, dregs crusher of the boiler.
- Plastic feeder, rubber smelling machine, etc.
Technological Processing
Company Profile
Power-trans is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.
Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.
Our factory adheres to the enterprise concept of “quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development.” We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
