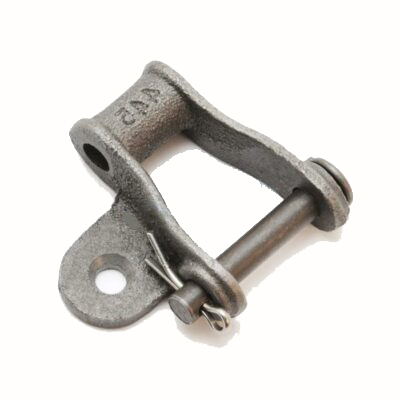

445 Class Pintle Chain with A1 attachment
400 Class Pintle Chains
The 400 Class Pintle Chains(442/445/452/455/462/477/477/4103/4124) is a lightweight, moderately priced chain capable of handling average loads at slow or intermediate speeds. It is proportionately cast for balance, strength and long, efficient service, and is available in riveted or cottered construction. The head of each pin is notched to fit the sidebar locking lug which keeps the pin from rotating when the chain is in use. Closed bearing construction makes 400 Class Pintle Chain useful in conveying moderately gritty and abrasive materials.
Manufactured in Power-transtech Company, with a tensile strength range from 7,800 to 32,500pounds, The 400 Class Pintle Chain is carefully cored for pitch accuracy with smooth bearing surfaces that reduce “break-in” wear causing pitch elongation. 400 Class Pintle Chain is available in a pitch range of 1.375 to 4.060 inches with a complete assortment of Brutaloy or cast steel sprockets.
A large assortment of attachments are available to handle a wide variety of applications. Styles A ,K and G attachments are offered in right and left hand links.
As a drive chain, 400 Class Pintle is designed to travel in the direction of the barrel end of the links; as an elevating or
conveying chain, its direction of travel should be toward the open ends of the links.
All of the 400 Class Pintle Chain is manufactured according to manufacturer’s standards and is completely interchangeable with other manufacturers’ chain.
Material
400 class pintle chains are links cast of malleable iron or Promal (Duramal). It is a heat treated malleable iron having greater strength and superior resistance to wear and abrasion. Promal (Duramal) chains have heat treated pins.
|
Chain NO.
|
Weight Per Foot Pounds
|
Dimensions in Decimal Inches
|
|||||||
|
A
|
C
|
D
|
E
|
F
|
G
|
H
|
T
|
||
|
445-A1
|
1.8
|
15/32
|
15/16
|
1/4
|
7/8
|
7/16
|
3/8
|
3/4
|
3/16
|
We are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
|
Chain NO.
|
Pitch in Inches
|
Links Per
10 Feet |
Weight Per Foot Lbs
|
Average Ultimate Strength Lbs
|
Allowable Chain Pull Pounds Lbs
|
Available Attachments
|
|
145
|
1.630
|
74
|
1.0
|
6400
|
780
|
E1 K1 F2
|
|
434
|
1.398
|
86
|
1.0
|
5600
|
720
|
|
|
442
|
1.375
|
88
|
1.4
|
7800
|
1000
|
K1
|
|
445
|
1.630
|
74
|
1.5
|
7800
|
1000
|
K1 F2
|
|
452
|
1.506
|
80
|
2.0
|
9100
|
1250
|
A88 D5 E1 K1
|
|
455
|
1.630
|
74
|
1.9
|
9490
|
1260
|
A1 A3 K1 F2 F21 M1
|
|
462
|
1.634
|
74
|
2.5
|
11700
|
1800
|
A12 G1 K1 F2
|
|
477
|
2.308
|
52
|
2.0
|
12480
|
1640
|
A22 A11 D5 G1 G19 K1 F2 F6 F19
|
|
483
|
4.000
|
30
|
2.9
|
14300
|
2460
|
A22
|
|
488
|
2.609
|
46
|
9
|
14300
|
2130
|
G6 H19 K1 K2 F2 M1
|
|
4103
|
3.075
|
39
|
5.7
|
28600
|
4200
|
A22 A42 G6 K1 K2 F2 F29 M1
|
|
4124
|
4.063
|
30
|
8.5
|
92800
|
5500
|
K2 F8
|
