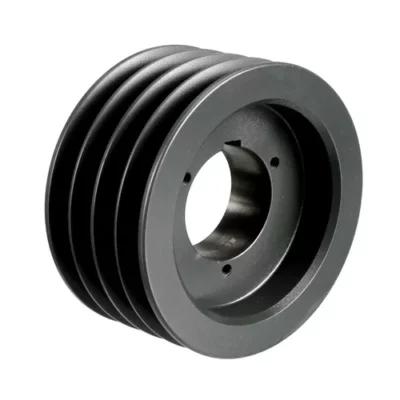

4B Gripbelt Sheaves with Split Taper Bushings for Use with All “A” and “B” Section Belts
4B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 5.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with R1 taper bushings or Q1 taper bushings, which we also stock. Most of our four-groove 4B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
4B Gripbelt Sheaves with Split Taper Bushings
4B series pulleys(4B Gripbelt Sheaves with Split Taper Bushings) are working for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 5.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with R1 taper bushings or Q1 taper bushings, which we also stock. Most of our four-groove 4B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

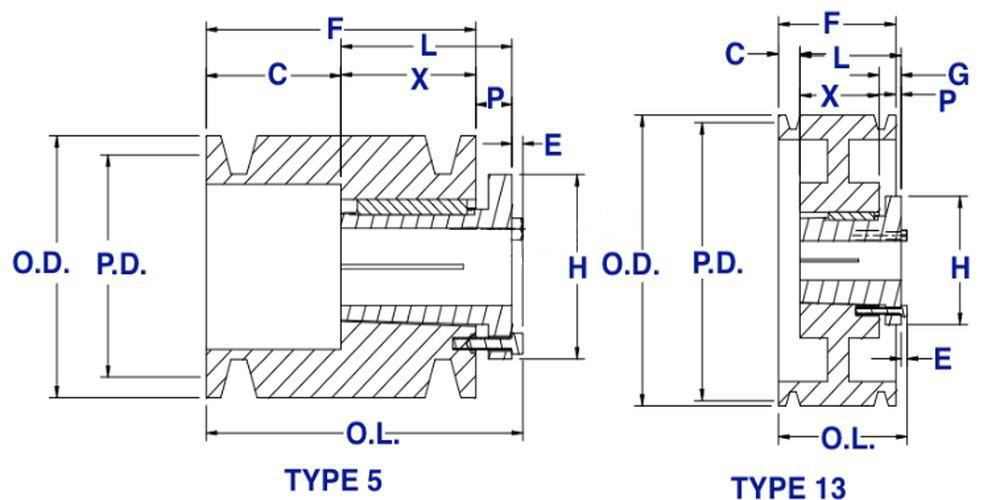

4B Gripbelt Sheaves with Split Taper Bushings Size Chart
|
Size
|
Bushing Type
|
Pitch Diameter (4L/A)
|
Pitch Diameter (5L/B)
|
Outside Diameter
|
Type
|
(O.L.)
|
(L)
|
(P)
|
(C)
|
(H)
|
(F)
|
(G)
|
(X)
|
(E)
|
Pulley Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4B54Q | Q1 | 5.0″ | 5.4″ | 5.75″ | 5 | 4-9/32″ | 2-1/2″ | 3/4″ | 1-1/2″ | 4-1/8″ | 3-1/4″ | — | 1-3/4″ | 9/32″ | 9.3 |
| 4B56Q | Q1 | 5.2″ | 5.6″ | 5.95″ | 5 | 4-9/32″ | 2-1/2″ | 3/4″ | 1-1/2″ | 4-1/8″ | 3-1/4″ | — | 1-3/4″ | 9/32″ | 10.5 |
| 4B58Q | Q1 | 5.4″ | 5.8″ | 6.15″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 3/4″ | 1-3/4″ | 9/32″ | 11.5 |
| 4B60Q | Q1 | 5.6″ | 6.0″ | 6.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 3/4″ | 1-3/4″ | 9/32″ | 12.6 |
| 4B62Q | Q1 | 5.8″ | 6.2″ | 6.55″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 3/4″ | 1-3/4″ | 9/32″ | 12.6 |
| 4B64Q | Q1 | 6.0″ | 6.4″ | 6.75″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 3/4″ | 1-3/4″ | 9/32″ | 14.1 |
| 4B66Q | Q1 | 6.2″ | 6.6″ | 6.95″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 3/4″ | 1-3/4″ | 9/32″ | 14.8 |
| 4B68Q | Q1 | 6.4″ | 6.8″ | 7.15″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 3/4″ | 1-3/4″ | 9/32″ | 16.9 |
| 4B154R | R1 | 15.0″ | 15.4″ | 15.75″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 40.1 |
| 4B160R | R1 | 15.6″ | 16.0″ | 16.35″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 44.0 |
| 4B184R | R1 | 18.0″ | 18.0″ | 18.75″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 50.3 |
| 4B200R | R1 | 19.5″ | 20.0″ | 20.35″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 54.0 |
| 4B250R | R1 | 24.5″ | 25.0″ | 25.35″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 71.0 |
| 4B300R | R1 | 29.5″ | 30.0″ | 30.35″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 99.0 |
| 4B380R | R1 | 37.5″ | 38.0″ | 38.35″ | 13 | 3-25/32″ | 2-7/8″ | 1/4″ | 5/8″ | 5-3/8″ | 3-1/4″ | 7/8″ | 2″ | 9/32″ | 126.0 |
How To Measure V-Belt Pulleys | Sizes & Dimensions
One of the ever-growing and most widely used product types in the power transmission and automotive industries is the V-belt pulley, also known as the “sheave.” A V-belt pulley is an attachment that transfers energy between axles with the help of a V-belt. However, to keep this critical pair of devices functioning correctly, one must secure the appropriate V-belt pulley replacement when an older one gets worn down. To do this, you need to know the size, dimensions, and type of your V-belt pulley so that the replacement will operate adequately. Learning to measure a V-belt pulley’s size and calculate its dimensions are simple tasks; however, correctly identifying a V-belt pulley type can be complex. V-belt pulleys come in various styles and options, including A-section, B-section, C-section, D-section, 3V-section, 5V-section, 8V-section, variable pitch, double groove, and metric pulleys. We stock over 8,000 different V-belt pulleys alone.
 |
 |
 |
|
| TA with STB bushing for A Belts | TA with STB bushing for A Belts | TA with STB bushing for A Belts | TB with STB bushing |
|
|
|
|
| TB with STB bushing | TB with STB bushing | TC with STB bushing for C Belts | TC with STB bushing for C Belts |
Applications of V-belt Pulley
V-belt pulleys are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging presses, some small horsepower motorcycle power transmission, agricultural machinery power, etc. Gearbox, air compressor, reducer, reducer, generator, etc.
 |
 |

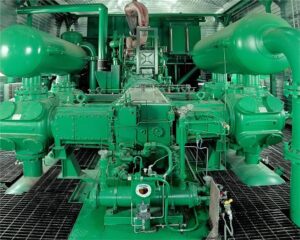

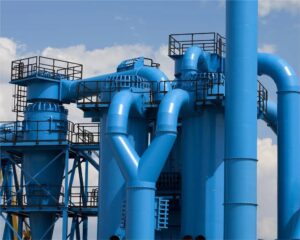

| Compressors | Oil and Gas |
 |
 |
