4C Series Cast Iron QD Sheaves for “C” Belts

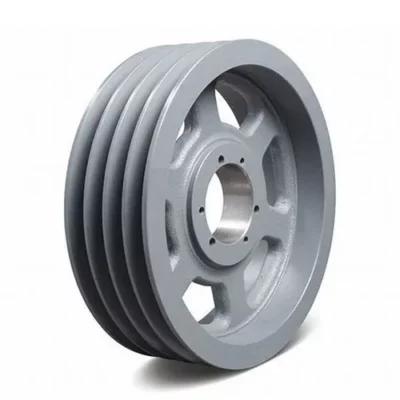

4C series four-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 7.90″ to 50.40″ in diameter. Depending on the sheave size, they are made to use SF, E, F, or J QD (quick detachable) bushings, which we also stock. Most of our 4C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
4C Series Cast Iron QD Sheaves
4C series four-groove cast iron QD bushed sheaves are working with C, CX, banded belts, and CC v-belts; they range from 7.90″ to 50.40″ in diameter. Depending on the sheave size, they are made to use SF, E, F, or J QD (quick detachable) bushings, which we also stock. Most of our 4C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. Balance the pulleys at the factory for smooth machinery operation.

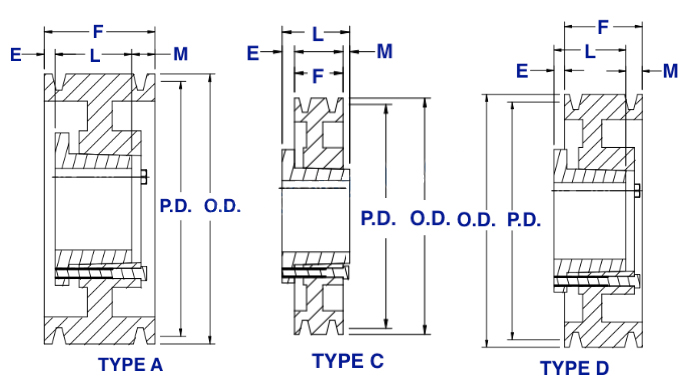

4C Series Cast Iron QD Sheaves Size Chart
| Size | Bushing Type | Type | Pitch Diameter | Outside Diameter | (E) | (F) | (L) | (M) | Sheave Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 4C75SF | SF | A | 7.5″ | 7.90″ | 21/32″ | 4-1/4″ | 2-1/16″ | 1-17/3.2″ | 25 |
| 4C80E | E | A | 8.0″ | 8.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 30 |
| 4C85E | E | A | 8.5″ | 8.90″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 33 |
| 4C90E | E | A | 9.0″ | 9.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 35 |
| 4C95E | E | A | 9.5″ | 9.90″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 38 |
| 4C100E | E | A | 10.0″ | 10.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 40 |
| 4C105E | E | A | 10.5″ | 10.90″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 43 |
| 4C110E | E | A | 11.0″ | 11.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 46 |
| 4C120E | E | A | 12.0″ | 12.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 50 |
| 4C130E | E | A | 13.0″ | 13.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 54 |
| 4C140E | E | A | 14.0″ | 14.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 59 |
| 4C160E | E | A | 16.0″ | 16.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 65 |
| 4C180E | E | A | 18.0″ | 18.40″ | 25/32″ | 4-1/4″ | 2-3/4″ | 23/32″ | 73 |
| 4C200E | E | A | 20.0″ | 20.40″ | 9/32″ | 4-1/4″ | 2-3/4″ | 1-7/32″ | 82 |
| 4C240F | F | D | 24.0″ | 24.40″ | 3/32″ | 4-1/4″ | 3-3/4″ | 19/32″ | 105 |
| 4C270F | F | D | 27.0″ | 27.40″ | 3/32″ | 4-1/4″ | 3-3/4″ | 19/32″ | 125 |
| 4C300F | F | D | 30.0″ | 30.40″ | 3/32″ | 4-1/4″ | 3-3/4″ | 19/32″ | 142 |
| 4C360F | F | D | 36.0″ | 36.40″ | 3/32″ | 4-1/4″ | 3-3/4″ | 19/32″ | 172 |
| 4C440J | J | D | 44.0″ | 44.40″ | 0 | 4-1/4″ | 4-5/8″ | 3/8″ | 225 |
| 4C500J | J | D | 50.0″ | 50.40″ | 0 | 4-1/4″ | 4-5/8″ | 3/8″ | 260 |
4C Series Cast Iron QD Sheaves Products Overview:
(1) A、B、C、D American Standard Manufactured according t ：Classical V-Belts ANSI/RMA IP-20
(2) 3V、5V、8V American Standard Manufactured according t ：Narrow V-Belts ANSI/RMA IP-22
(3) 2L、3L、4L、5L American Standard Manufactured according t ：Light Duty V-Belts ANSI/RMA IP-23
(4) J、L、M American Standard Manufactured according t ：V-Ribbed Belts ANSI/RMA IP一26
Features and Benefits of American Standard Pulleys
- The belt is an elastomer that can mitigate load impact and run smoothly without noise
- Overload will cause the belt to slip on the wheel, thus playing the role of protecting the whole machine
- The grooves of most American standard pulleys are suitable for several different belt types, and the belt design and application are relatively flexible.
- There are many American standard pulley grooves and taper bushings. Allowed to install on the front and back, which has become a solution for harsh conditions on different occasions.
- American standard pulleys and taper bushings can achieve precise balance control and perform well in transmission.
Technological Processing
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases. By sea or air shipment.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
