4TB Gripbelt Sheaves pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size, they are working with P1 taper bushings or Q1 taper bushings, which we also stock. We produce most of our 4TB pulleys from a high-strength grade 35 cast iron. With phosphate-coated, and painted for anti-corrosion.
4TB Style Pulley Size Chart
4TB Gripbelt Sheaves specification

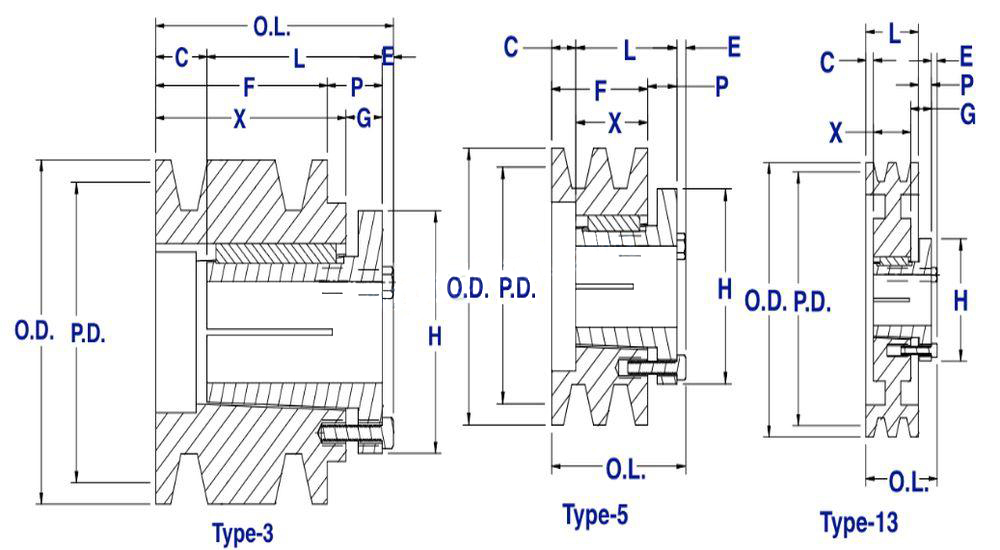

Size | Bushing Type | Pitch Diameter (4L/A) | Pitch Diameter (5L/B) | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Pulley Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4TB34 | P2 | 3.0″ | 3.4″ | 3.75″ | 3 | 4-9/16″ | 2-15/16″ | 1-1/16″ | 1-3/8″ | 3″ | 3-1/4″ | 5/8″ | 2-5/16″ | 1/4″ | 4.5 |
4TB36 | P2 | 3.2″ | 3.6″ | 3.95″ | 3 | 4-9/16″ | 2-15/16″ | 1-1/16″ | 1-3/8″ | 3″ | 3-1/4″ | 5/8″ | 2-5/16″ | 1/4″ | 5.3 |
4TB38 | P1 | 3.4″ | 3.8″ | 4.15″ | 5 | 4-1/8″ | 1-5/16″ | 5/8″ | 1-15/16″ | 3″ | 3-1/4″ | — | 1-5/16″ | 1/4″ | 4.8 |
4TB40 | P1 | 3.6″ | 4.0″ | 4.35″ | 5 | 4-1/8″ | 1-5/16″ | 5/8″ | 1-15/16″ | 3″ | 3-1/4″ | — | 1-5/16″ | 1/4″ | 5.5 |
4TB42 | P1 | 3.8″ | 4.2″ | 4.55″ | 5 | 4-1/8″ | 1-5/16″ | 5/8″ | 1-15/16″ | 3″ | 3-1/4″ | — | 1-5/16″ | 1/4″ | 5.9 |
4TB44 | P1 | 4.0″ | 4.4″ | 4.75″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 6.5 |
4TB46 |
P1 | 4.2″ | 4.6″ | 4.95″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 7.1 |
4TB48 | P1 | 4.4″ | 4.8″ | 5.15″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 7.5 |
4TB50 | P1 | 4.6″ | 5.0″ | 5.35″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 8.3 |
4TB52 | P1 | 4.8″ | 5.2″ | 5.55″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 9.1 |
4TB54 | P1 | 5.0″ | 5.4″ | 5.75″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 9.6 |
4TB56 | P1 | 5.2″ | 5.6″ | 5.95″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 10.6 |
4TB58 | P1 | 5.4″ | 5.8″ | 6.15″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 11.6 |
4TB60 | P1 | 5.6″ | 6.0″ | 6.35″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 11.9 |
4TB62 |
P1 | 5.8″ | 6.2″ | 6.55″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 11.1 |
4TB64 | P1 | 6.0″ | 6.4″ | 6.75″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 11.8 |
4TB66 | P1 | 6.2″ | 6.6″ | 6.95″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 12.0 |
4TB68 | P1 | 6.4″ | 6.8″ | 7.15″ | 13 | 3-1/2″ | 1-5/16″ | 0 | 1-5/16″ | 3″ | 3-1/4″ | 5/8″ | 1-5/16″ | 1/4″ | 12.5 |
4TB70 | Q1 | 6.6″ | 7.0″ | 7.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 15.3 |
4TB74 | Q1 | 7.0″ | 7.4″ | 7.75″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 15.3 |
4TB80 | Q1 | 7.6″ | 8.0″ | 8.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 17.0 |
4TB86 | Q1 | 8.2″ | 8.6″ | 8.95″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 20.8 |
4TB90 | Q1 | 8.6″ | 9.0″ | 9.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 20.6 |
4TB94 |
Q1 | 9.0″ | 9.4″ | 9.75″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 20.1 |
4TB110 | Q1 | 10.6″ | 11.0″ | 11.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 25.8 |
4TB124 | Q1 | 12.0″ | 12.4″ | 12.75″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 27.5 |
4TB136 | Q1 | 13.2″ | 13.6″ | 13.95″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 31.5 |
4TB154 | Q1 | 15.0″ | 15.4″ | 15.75″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 36.0 |
4TB160 | Q1 | 15.6″ | 16.0″ | 16.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 39.0 |
4TB184 | Q1 | 18.0″ | 18.4″ | 18.75″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 44.8 |
4TB200 | Q1 | 19.5″ | 20.0″ | 20.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 57.0 |
4TB250 | Q1 | 24.5″ | 25.0″ | 25.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 69.5 |
4TB300 | Q1 | 29.5″ | 30.0″ | 30.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 90.8 |
4TB380 | Q1 | 37.5″ | 38.0″ | 38.35″ | 13 | 3-17/32″ | 2-1/2″ | 0 | 3/4″ | 4-1/8″ | 3-1/4″ | 5/8″ | 1-3/4″ | 9/32″ | 125.0 |
Classification of V-Belt Pulley(4TB Gripbelt Sheaves)
1) European standard:
a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC,2BKH; up to 10 grooves
b) Adjustable speed V-belt pulleys and variable speed pulleys
c) Flat belt pulleys and conveyor belt pulleys
2) American standard:
a) Sheaves for taper bushings: 3V, 5V, 8V
b) Sheaves for QD bushings: 3V, 5V, 8V
c) Sheaves for split taper bushings: 3V, 5V, 8V
d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K, and M
Parts are according to drawings and samples. OEM service is welcomed
3) Bore: pilot bore, finished bore, taper bore, bore for QD bushing
4) Surface finish: paint, phosphating, zinc plated
5) Material: cast iron, ductile iron, nylon, aluminum
6) Made according to drawings and samples, OEM inquiries welcomed
Applications of 4TB Series Pulley
4TB series pulleys are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, some small horsepower motorcycle power transmission, agricultural machinery power transmission, Air compressor, reducer, reducer, generator, etc.
