4TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All “C” Section Belts

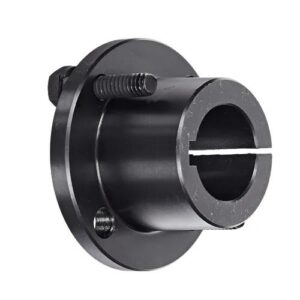

4TC series four-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q2 taper bushings, which we also stock. Most of our 4TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
4TC Series Cast Iron Sheaves
4TC series four-groove sheaves(4TC Series Cast Iron Sheaves) are working for C, CX, banded belts, and CC v-belts. They range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are making to use Q2 taper bushings, which we also stock. Most of our 4TC sheaves are manufacturing from a high-strength grade 35 cast iron, with phosphate-coated, and are paintting for anti-corrosion. Balanced at the factory for smooth machinery operation.

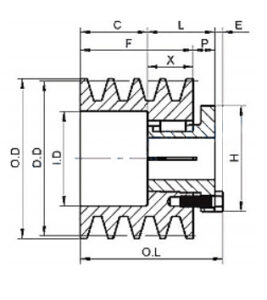

4TC Style Sheave Size Chart
| Size | Bushing Type | Pitch Diameter | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Sheave Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4TC70 | Q2 | 7.0 | 7.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 23.8 |
| 4TC72 | Q2 | 7.2 | 7.60 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 26.8 |
| 4TC74 | Q2 | 7.4 | 7.80 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 27.5 |
| 4TC76 | Q2 | 7.6 | 8.00 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 30.3 |
| 4TC78 | Q2 | 7.8 | 8.20 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 26.4 |
| 4TC80 | Q2 | 8.0 | 8.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 29.0 |
| 4TC82 | Q2 | 8.2 | 8.60 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 26.8 |
| 4TC84 | Q2 | 8.4 | 8.80 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 28.8 |
| 4TC86 | Q2 | 8.6 | 9.00 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 27.9 |
4TC88 |
Q2 | 8.8 | 9.20 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 31.6 |
| 4TC90 | Q2 | 9.0 | 9.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 28.4 |
| 4TC92 | Q2 | 9.2 | 9.60 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 32.3 |
| 4TC94 | Q2 | 9.4 | 9.80 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 31.8 |
| 4TC96 | Q2 | 9.6 | 10.00 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 35.2 |
| 4TC98 | Q2 | 9.8 | 10.20 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 33.0 |
| 4TC100 | Q2 | 10.0 | 10.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 37.0 |
| 4TC102 | Q2 | 10.2 | 10.60 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 33.5 |
| 4TC106 | Q2 | 10.6 | 11.00 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 36.3 |
| 4TC110 | Q2 | 11.0 | 11.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 36.3 |
| 4TC114 | Q2 | 11.4 | 11.80 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 38.4 |
| 4TC120 | Q2 | 12.0 | 12.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 40.5 |
| 4TC130 | Q2 | 13.0 | 13.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 43.6 |
| 4TC160 | Q2 | 16.0 | 16.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 56.0 |
| 4TC200 | Q2 | 20.0 | 20.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 72.0 |
| 4TC240 | Q2 | 24.0 | 24.40 | 13 | 4-17/32″ | 3-1/2″ | 0 | 3/4″ | 4-1/8″ | 4-1/4″ | 3/4″ | 2-3/4″ | 9/32″ | 85.3 |
TC Series Cast Iron Sheaves With Split Taper Bushings
Split taper sheaves are a popular choice for gunsmiths because of their high durability and ease of installation. This type of sheave features eight grooves and a split taper. Designed to meet the demands of the most demanding shooting applications. Its design includes a timed spark port, vacuum advance distributor, and a Q2 bushing.
We are designing the split taper sheaves to accommodate a variety of pulleys, including V belts. A unique groove allows for multiple belts with different pitch diameters and horsepower levels. This design is also based on a close-grain cast iron, which ensures the tightest tolerances.
 |
 |
How to Choose V-Belt Pulleys?
One of the ever-growing and most widely used product types in the power transmission and automotive industries is the V-belt pulley, also known as the “sheave.” A V-belt pulley is an attachment that transfers energy between axles with the help of a V-belt. However, to keep this vital pair of devices functioning correctly, one must secure the appropriate V-belt pulley replacement when an older one gets worn down.
Learning to measure a V-belt pulley’s size and calculate its dimensions are simple tasks; however, correctly identifying a V-belt pulley type can be complex. To do this, you need to know the size, measurements, and type of your V-belt pulley so that the replacement will operate adequately. V-belt pulleys come in various styles and options, including A-section, B-section, C-section, D-section, 3V-section, 5V-section, 8V-section, variable pitch, double groove, and metric pulleys. We stock over 8,000 different V-belt pulleys alone.
