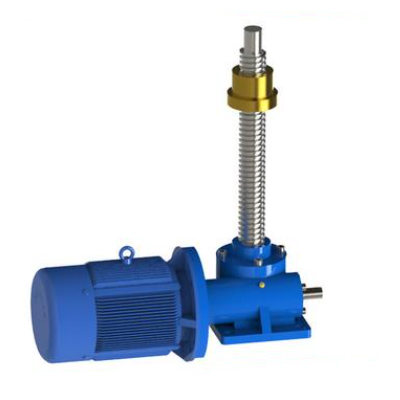

5 ton electric screw jack
5 ton electric screw jack applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining
Weight (KG): 25 KG
Customized support: OEM, ODM, OBM
Gearing Arrangement: Worm
Output Torque: 20nm
Input Speed: Max. 1500RPM
Output Speed: Max. 160RPM
Load Capacity: 5 ton
Mounting Type: Upright
Travel Length: 915mm Stroke
Screw Design: Rotating screw
Gear Ratio: 6:1
Screw End Fitting: Plain end
Accessories: Bronze travel nut, motor flange
Motor voltage: 380V AC 50HZ 3PHASE
Motor Power: 550W 3/4HP
Gear Reducer Type: helical bevel gear reducer
Packaging Details: Strong Exporting Plywood Cases (International Exporting Standard Wooden Material with Free Fumigation).
Port: Hangzhou
Features
5 ton electric worm gear screw jack with lifting nut for heavy duty screw jack lift systems. Strong electrically screw jack load capacity 5 ton, self locking ACME screw diameter 38mm, pitch 6mm, inverted mount, rotating screw design, stroke 900mm, ratio 1/24 (one rpm input travel length 0.25mm), plain end, right input shaft and left motor adapter. Attached 3-phase electric motor with bevel-helical gearbox, and copper travel nut.
Packaging & Shipping
Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing: 100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.
