Our Sprockets(5 Tooth Sprocket) is one of the nations leading suppliers of industrial chain sprockets. Our 5-tooth sprockets conform to international ISO, DIN, or American ANSI standards. We stock 5-tooth chain sprockets for a wide range of applications including; forestry, conveying, drive-sprockets, idle-sprockets, agricultural, engineer-class, and more. Not only do we supply sprockets but we also provide chain, v-belt pulleys, V-belts, electric motors, shafting, gear reducers, bearings, and a wide range of other PT components. For hard to find, custom, or OEM solutions, we make custom 5-tooth sprockets from our in-house machine shop.
5-Tooth Chain Sprocket Types | ||
Roller Chain Sprocket | Engineer-Class Sprockets | Idler Sprockets |
Additionally, we have plastic sprockets, stainless steel sprockets, and aluminum sprockets!
5 Tooth Sprocket A5 Sprocket
- High Quality Sprocket
- Two Styles To Choose From
- Extremely Durable
- Optimum Performance
Sprocket Number | Style | Number of Teeth | Pitch Diameter | Pitch | Plate Thickness | Stock Bore | Weight |
---|---|---|---|---|---|---|---|
698A5 | A-Plate | 5 | 7.95″ | 6.031″ | 1.250″ | 1.500″ | 106.00 LBS |
998A5 | A-Plate | 5 | 10.54″ | 9.031″ | 1.250″ | 1.500″ | 211 LBS |
A5 Sprocket
- High Quality Sprocket
- Two Styles To Choose From
- Extremely Durable
- Optimum Performance
Sprocket Number | Style | Number of Teeth | Pitch Diameter | Pitch | Length Through Bore | Stock Bore | Weight |
---|---|---|---|---|---|---|---|
698C5 | C-Hub | 5 | 19.517″ | 6.031″ | 6.250″ | 1.500″ | 173.00 LBS |
998C5 | C-Hub | 5 | 29.225″ | 9.031″ | 6.500″ | 1.500″ | 302 LBS |

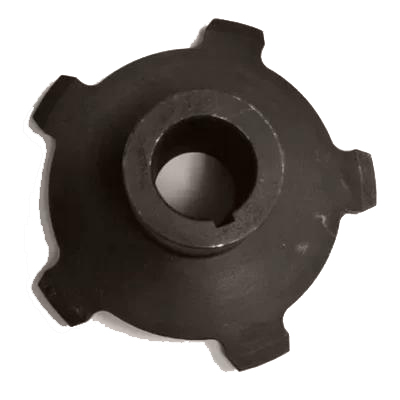

cast c5 sprocket
- Premium Quality Sprocket
- Extremely Durable
- Available In Cast or Steel Material
- Custom Bore Sizes Available

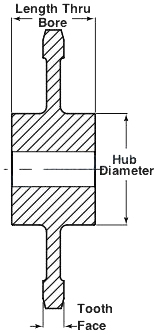

Sprocket Number | Style | Number of Teeth | Pitch Diameter | Maximum Bore | Hub Diameter | Length Thru Bore | Tooth Face at Pitch Line | Roller Diameter | Weight |
---|---|---|---|---|---|---|---|---|---|
55C5 | C | 5 | 2.77″ | 0.94″ | 2.00″ | 2.00″ | 0.750″ | 0.875″ | 2.0 LBS |
67C5 | C | 5 | 3.93″ | 1.19″ | 2.25″ | 1.75″ | 0.687″ | 0.812″ | 4.0 LBS |
78C5 | C | 5 | 4.44″ | 1.19″ | 2.50″ | 2.50″ | 0.937″ | 0.875″ | 5.0 LBS |
94C5 | C | 5 | 6.81″ | 2.50″ | 4.50″ | 3.00″ | 0.750″ | 1.5″ | 12.0 LBS |
95C5 | C | 5 | 6.81″ | 2.50″ | 4.50″ | 3.00″ | 0.687″ | 1.5″ | 12.0 LBS |
104C5 | C | 5 | 10.21″ | 4.00″ | 6.00″ | 4.75″ | 4.00″ | 1.50″ | 80.0 LBS |
106C5 | C | 5 | 10.15″ | 4.00″ | 10.15″ | 4.75″ | 1.5″ | 1.25″ | 30.0 LBS |
130C5 | c | 5 | 6.77″ | 2.00″ | 3.00″ | 2.75″ | 1.000″ | 1.000″ | 18.0 LBS |
132C5 | C | 5 | 10.20″ | 4.00″ | 6.00″ | 6.00″ | 2.750″ | 1.750″ | 59.0 LBS |
188C5 | C | 5 | 6.78″ | 2.50″ | 4.00″ | 3.00″ | 0.9375″ | 1.750″ | 14.0 LBS |
196C5 | C | 5 | 10.21″ | 4.00″ | 6.00″ | 4.00″ | 1.000″ | 2.000″ | 28.0 LBS |
348C5 | C | 5 | 9.71″ | 2.00″ | 4.00″ | 4.00″ | 0.687″ | 1.0625″ | 19.0 LBS |
458C5 | C | 5 | 13.05″ | 5.06″ | 6.00″ | 5.00″ | 0.875″ | 1.380″ | 40.0 LBS |
468C5 | C | 5 | 13.05″ | 4.00″ | 6.00″ | 4.00″ | 1.375″ | 1.880″ | 52.0 LBS |
678C5 | c | 5 | 19.52″ | 3.50″ | 7.00″ | 4.50″ | 1.187″ | 2.000″ | 93.0 LBS |
698C5 | C | 5 | 19.52″ | 3.00″ | 8.00″ | 5.00″ | 1.375″ | 2.690″ | 122.0 LBS |
998C5 | C | 5 | 29.14″ | 6.44″ | 9.00″ | 6.00″ | 1.375″ | 2.690″ | 258.0 LBS |
X-A5 Sprocket
- High Quality Sprocket
- Two Styles To Choose From
- Extremely Durable
- Optimum Performance
Sprocket Number | Style | Number of Teeth | Plate Thickness | Pitch | Stock Bore | Weight |
---|---|---|---|---|---|---|
X-348A5 | A-Plate | 5 | 0.625″ | 3.015″ | 1.250″ | 13.00 LBS |
X-458A5 | A-Plate | 5 | 0.875″ | 4.031″ | 1.50″ | 33.00 LBS |
X-678A5 | A-Plate | 5 | 1.000″ | 6.031″ | 1.500″ | 85.00 LBS |
X-C5 Sprocket
- High Quality Sprocket
- C-Hub Style (Hub On Both Sides)
- Two Styles To Choose From
- Extremely Durable
- Optimum Performance
Sprocket Number | Style | Number of Teeth | Plate Thickness | Pitch Diameter | Hub Diameter | Pitch | Maximum Bore | Stock Bore | Length Through Bore | Weight |
---|---|---|---|---|---|---|---|---|---|---|
X-348C5 | C-Hub | 5 | 0.625″ | 0.625″ | 4.000″ | 3.015″ | 2.440″ | 1.250″ | 2.750″ | 20.00 LBS |
X-458C5 | C-Hub | 5 | 0.875″ | 13.045″ | 5.500″ | 4.031″ | 3.440″ | 1.500″ | 4.250″ | 54.00 LBS |
X-678C5 | C-Hub | 5 | 1.000″ | 19.517″ | 7.000″ | 6.031″ | 4.440″ | 1.500″ | 6.000″ | 137.00 LBS |
We also offer a full range of both precision roller chain and engineered.
Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
