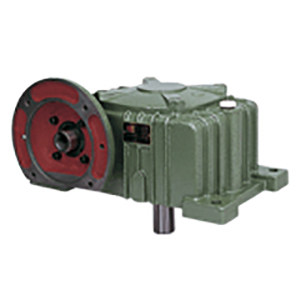

DX DO Series Single Standard Worm Gear Reducer WPDX WPDO
Back to products
E ECONOMY PLANETARY GEARBOX
E ECONOMY PLANETARY GEARBOX
50 Roller Chain Sprockets
Click to enlarge

50 Roller Chain Sprockets

Categories: , Tag:
Description

Roller Chain Sprockets

50 Roller Chain Sprockets

Our premium quality 50 roller chain sprockets utilize a high-grade carbon steel material and follow through with an anti-corrosive black oxide coating and feature hardened teeth (on tooth counts 30 or below). The combination of premium features and precision tolerance manufacturing make these size 50 sprockets a high-quality, reliable, and durable component for any conveyor or drive system. Being manufactured dimensionally in accordance with ANSI B29.1 Standards from the American National Standards Institute means that our sprocket is compatible with any ANSI 50 roller chain and directly replaces out any ANSI 50 sprocket with its equivalent size. We also supply custom bore or complete custom manufactured #50 chain sprockets upon request, in a range of material options ranging from plastic, stainless steel, and even aluminum.

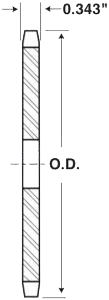

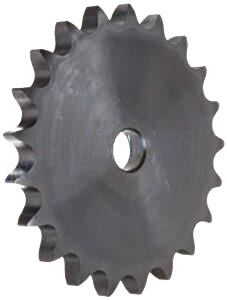

#50 A-Plate Sprockets

50 Roller Chain Sprockets

50A22 22 A 4.720 3/4″ 1.30
50A23 23 A 4.920 3/4″ 1.44
50A24 24 A 5.120 3/4″ 1.50
50A25 25 A 5.320 23/32″ 1.62
50A26 26 A 5.520 23/32″ 1.72
50A27 27 A 5.720 23/32″ 1.96
50A28 28 A 5.920 23/32″ 2.04
50A29 29 A 6.120 23/32″ 2.36
50A30 30 A 6.320 23/32″ 2.54
50A31 31 A 6.520 23/32″ 2.80
50A32 32 A 6.720 23/32″ 2.72
50A33 33 A 6.920 23/32″ 3.14
50A34 34 A 7.120 23/32″ 3.20
50A35 35 A 7.320 23/32″ 3.34
50A36 36 A 7.520 23/32″ 3.82
50A37 37 A 7.720 23/32″ 3.98
50A38 38 A 7.920 23/32″ 4.14
50A39 39 A 8.120 23/32″ 4.42
50A40 40 A 8.320 23/32″ 4.46
50A41 41 A 8.520 23/32″ 4.86
50A42 42 A 8.720 23/32″ 4.98
50A43 43 A 8.910 23/32″ 5.24
50A44 44 A 9.110 23/32″ 5.42
50A45 45 A 9.310 23/32″ 5.92
50A46 46 A 9.510 15/16″ 6.42
50A47 47 A 9.710 15/16″ 6.50
50A48 48 A 9.910 15/16″ 6.58
50A49 49 A 10.110 15/16″ 7.06
50A50 50 A 10.310 15/16″ 7.10
50A51 51 A 10.510 15/16″ 7.32
50A52 52 A 10.710 15/16″ 7.98
50A53 53 A 10.910 15/16″ 8.08
50A54 54 A 11.110 15/16″ 8.30
50A55 55 A 11.310 15/16″ 8.56
50A56 56 A 11.500 15/16″ 8.90
50A57 57 A 11.700 15/16″ 9.38
50A58 58 A 11.900 15/16″ 10.30
50A59 59 A 12.100 15/16″ 10.50
50A60 60 A 12.300 15/16″ 10.80
50A70 70 A 14.290 15/16″ 14.00
50A72 72 A 14.690 15/16″ 15.24
50A76 76 A 15.486 15/16″ 20.08
50A80 80 A 16.280 15/16″ 21.00
50A84 84 A 17.080 15/16″ 22.08
50A95 95 A 19.270 15/16″ 27.00
50A96 96 A 19.470 15/16″ 27.40

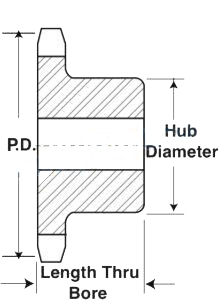

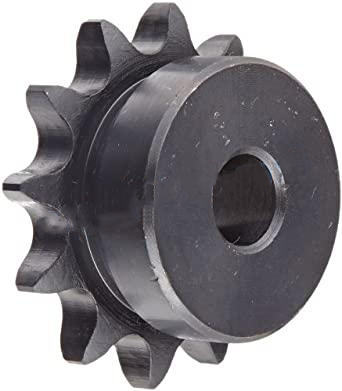

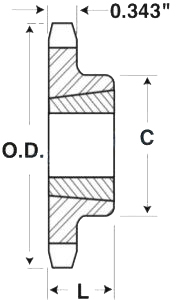

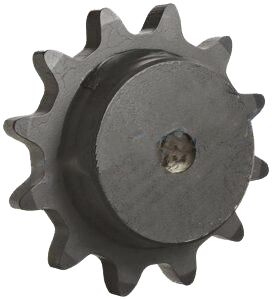

#50 B-Hub Sprockets

Size Tooth Count Outside Diameter Type Stock Bore Rec. Maximum Bore Hub Diameter Length Thru Bore Weight (LBS)
50B8 6 1.880″ B 5/8″ 5/8″ 1 5/8″ 1″ 0.25
50B9 9 2.090 B 5/8″ 3/4″ 1 3/8″ 1″ 0.36
50B10 10 2.300 B 5/8″ 7/8″ 1 9/16″ 1″ 0.48
50B11 11 2.500 B 5/8″ 1″ 1 3/4″ 1″ 0.64
50B12 12 2.710 B 5/8″ 1 1/4″ 1 63/64 1″ 0.83
50B13 13 2.910 B 5/8″ 1 5/16″ 1 7/8″ 1″ 0.88
50B14 14 3.110 B 5/8″ 1 7/16″ 2 1/8″ 1″ 1.13
50B15 15 3.320 B 5/8″ 1 1/2″ 2 3/8″ 1″ 1.34
50B16 16 3.520 B 5/8″ 1 3/4″ 2 1/2″ 1″ 1.51
50B17 17 3.720 B 5/8″ 1 7/8″ 2 11/16″ 1″ 1.74
50B18 18 3.920 B 5/8″ 1 7/8″ 2 7/8″ 1” 2.00
50B19 19 4.120 B 5/8″ 2″ 3” 1″ 2.22
50B20 20 4.320 B 3/4″ 2” 3” 1″ 2.28
50B21 21 4.520 B 3/4″ 2” 3” 1″ 2.40
50B22 22 4.720 B 3/4″ 2” 3” 1” 2.56
50B24 24 5.120 B 3/4″ 2” 3” 1 1/4″ 3.30
50B25 25 5.320 B 3/4″ 2” 3” 1 1/4″ 3.40
50B26 26 5.520 B 3/4″ 2” 3” 1 1/4″ 3.44
50B27 27 5.720 B 3/4″ 2” 3” 1 1/4″ 3.74
50B28 28 5.920 B 3/4″ 2” 3” 1 1/4″ 3.80
50B29 29 6.120 B 3/4″ 2” 3 1/4″ 1 1/4″ 4.06
50B30 30 6.320 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 4.56
50B31 31 6.520 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 4.74
50B32 32 6.720 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 4.96
50B33 33 6.920 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 5.20
50B34 34 7.120 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 5.14
50B35 35 7.320 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 5.44
50B36 36 7.520 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 5.64
50B37 37 7.720 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 5.90
50B38 38 7.920 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 6.08
50B39 39 8.120 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 6.30
50B40 40 8.320 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 6.50
50B41 41 8.520 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 6.64
50B42 42 8.720 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 6.96
50B43 43 8.910 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 7.06
50B44 44 9.110 B 3/4″ 2 1/4″ 3 1/4″ 1 1/4″ 7.58
50B45 45 9.310 B 3/4″ 2 1/2″ 3 3/4″ 1 1/4″ 8.58
50B46 46 9.510 B 1 2 1/2″ 3 3/4″ 1 1/4″ 8.22
50B47 47 9.710 B 1 2 1/2″ 3 3/4″ 1 1/4″ 8.48
50B48 48 9.910 B 1 2 1/2″ 3 3/4″ 1 1/4″ 9.28
50B49 49 10.110 B 1 2 1/2″ 3 3/4″ 1 1/4″ 9.22
50B50 50 10.310 B 1 2 1/2″ 3 3/4″ 1 1/4″ 9.88
50B51 51 10.510 B 1 2 1/2″ 3 3/4″ 1 1/4″ 9.70
50B52 52 10.710 B 1 2 1/2″ 3 3/4″ 1 1/4″ 10.24
50B53 53 10.910 B 1 2 1/2″ 3 3/4″ 1 1/4″ 10.48
50B54 54 11.110 B 1 2 1/2″ 3 3/4″ 1 1/4″ 11.00
50B55 55 11.310 B 1 2 1/2″ 3 3/4″ 1 1/4″ 10.93
50B56 56 11.500 B 1 2 1/2″ 3 3/4″ 1 1/4″ 11.50
50B57 57 11.700 B 1 2 1/2″ 3 3/4″ 1 1/4″ 12.00
50B58 58 11.900 B 1 2 1/2″ 3 3/4″ 1 1/4″ 11.82
50B59 59 12.100 B 1 2 1/2″ 3 3/4″ 1 1/4″ 12.32
50B60 60 12.300 B 1 2 1/2″ 3 3/4″ 1 1/4″ 13.00
50B70 70 14.290 B 1 2 1/2″ 3 3/4″ 1 3/4″ 18.16
50B72 72 14.690 B 1 2 1/2″ 3 3/4″ 1 3/4″ 19.48
50B76 76 15.486 B 1 2 1/2″ 3 3/4″ 1 3/4″ 21.00
50B80 80 16.280 B 1 2 3/4″ 4 1/4″ 1 3/4″ 24.74
50B84 84 17.080 B 1 2 3/4″ 4 1/4″ 1 3/4″ 25.50
50B95 95 19.270 B 1 2 3/4″ 4 1/4″ 1 3/4″ 32.00
50B96 96 19.470 B 1 2 3/4″ 4 1/4″ 1 3/4″ 32.92
50B112 112 22.650 B 1 2 3/4″ 4 1/4″ 1 3/4″ 42.00

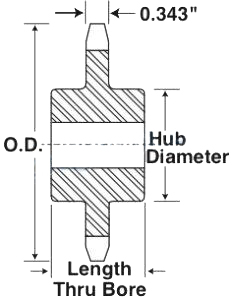

#50 C-Hub Sprockets

50 Roller Chain Sprockets

Size Tooth Count Outside Diameter Type Stock Bore Rec. Maximum Bore Hub Diameter Length Thru Bore Weight (LBS)
50C12 12 2.710 C 5/8″ 1 1/4″ 2″ 1 5/8″ 1.25
50C13 13 2.910 C 5/8″ 1 5/16″ 1 7/8″ 1 5/8″ 1.47
50C14 14 3.110 C 5/8″ 1 7/16″ 2 1/8″ 1 5/8″ 1.69
50C15 15 3.320 C 5/8″ 1 1/2″ 2 3/8″ 1 5/8″ 1.94
50C16 16 3.520 C 5/8″ 1 3/4″ 2 1/2″ 1 5/8″ 2.42
50C17 17 3.720 C 5/8″ 1 7/8″ 2 47/64″ 1 5/8″ 2.75
50C18 18 3.920 C 5/8″ 1 7/8″ 2 15/16″ 1 5/8″ 3.25
50C19 19 4.120 C 3/4″ 2″ 3 5/64″ 1 5/8″ 3.87
50C20 20 4.320 C 3/4″ 2″ 3″ 1 5/8″ 4.40

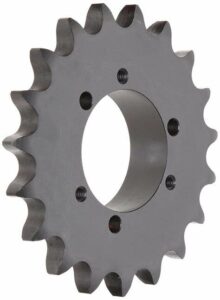

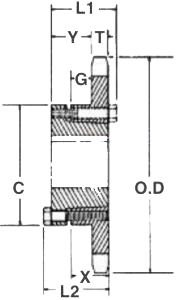

#50 QD-Type Sprockets

Size Tooth Count Bushing Outside Diameter Pitch Diameter Type Max. Bore Dimension (L1) Dimension (L2) Dimension (C) Dimension (Y) Dimension (G) Dimension (X) Dimension (T) Weight (LBS)
50JA13 15 H 2.710 2.415 B 1 1/4″ 1 1/8″ 1 1/8″ 2 1/8″ 21/32″ 9/32″  5/8″ 0.343 0.34
50JA13 13 JA 2.910 2.312 B 1 1/4″ 1 1/8″ 1 1/8″ 2 1/8″ 21/32″ 9/32″ 5/8″ 0.343 0.40
50JA14 14 JA 3.110 2.803 B 1 1/4″ 1 1/8″ 1 1/8″ 2 1/8″ 21/32″ 9/32″ 5/8″ 0.343 0.52
50JA15 15 JA 3.320 3.006 B 1 1/4″ 1 1/8″ 1 1/8″ 2 1/8″ 21/32″ 9/32″ 5/8″ 0.343 0.60
50JA16 16 JA 3.520 3.204 B 1 1/4″ 1 1/8″ 1 1/8″ 2 1/8″ 21/32″ 9/32″ 5/8″ 0.343 0.68
50SH17 17 SH 3.720 3.401 B 1 5/8″ 1 7/16″ 1 7/16″ 2 11/16″ 29/32″ 15/32″ 13/16″ 0.343 0.84
50SH18 18 SH 3.920 3.599 B 1 5/8″ 1 7/16″ 1 7/16″ 2 11/16″ 29/32″ 15/32″ 13/16″ 0.343 1.04
50SH19 19 SH 4.120 3.797 B 1 5/8″ 1 1/2″ 1 1/2″ 2 11/16″ 29/32″ 15/32″ 13/16″ 0.343 1.24
50SDS20 20 SDS 4.320 3.995 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 1.20
50SDS21 21 SDS 4.520 4.194 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 1.32
50SDS22 22 SDS 4.720 4.392 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 1.42
50SDS23 23 SDS 4.920 4.590 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 1.58
50SDS24 24 SDS 5.120 4.788 B 2” 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 1.70
50SDS25 25 SDS 5.320 4.987 B 2” 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 1.86
50SDS26 26 SDS 5.520 5.185 B 2” 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 2.00
50SDS27 27 SDS 5.720 5.384 B 2” 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 2.12
50SDS28 28 SDS 5.920 5.582 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 2.32
50SDS30 30 SDS 6.320 5.979 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 2.64
50SDS32 32 SDS 6.720 6.376 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 2.98
50SDS35 35 SDS 7.320 6.972 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 3.62
50SDS36 36 SDS 7.520 7.171 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 3.64
50SDS40 40 SDS 8.320 7.966 B 2” 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 4.74
50SDS42 42 SDS 8.720 8.363 B 2” 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 5.40
50SDS45 45 SDS 9.310 8.960 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 5.90
50SDS48 48 SDS 9.910 9.556 B 2″ 1 1/2″ 1 1/2″ 3 3/16″ 31/32″ 13/32″ 3/4″ 0.343 6.66
50SK54 54 SK 11.110 10.749 B 2 5/8″ 2 1/8″ 2 1/8″ 3 3/16″ 1 17/32″ 29/32″ 1 1/4″ 0.343 9.68
50SK60 60 SK 12.300 11.942 B 2 5/8″ 2 1/8″ 2 1/8″ 3 3/16″ 1 17/32″ 29/32″ 1 1/4″ 0.343 11.88
50SK70 70 SK 14.290 13.931 B 2 5/8″ 2 1/8″ 2 1/8″ 3 3/16″ 1 17/32″ 29/32″ 1 1/4″ 0.343 15.52
50SK72 72 SK 14.690 14.329 B 2 5/8″ 2 1/8″ 2 1/8″ 3 3/16″ 1 17/32″ 29/32″ 1 1/4″ 0.343 16.44
50SF80 80 SF 16.280 15.920 B 2 15/16″ 2 1/4″ 2 1/4″ 4 5/8″ 1 21/32″ 29/32″ 1 1/4″ 0.343 19.90
50SF84 84 SF 17.080 16.715 B 2 15/16″ 2 1/4″ 2 1/4″ 4 5/8″ 1 21/32″ 29/32″ 1 1/4″ 0.343 22.98
50SF96 96 SF 19.470 19.102 B 2 15/16″ 2 1/4″ 2 1/4″ 4 5/8″ 1 21/32″ 29/32″ 1 1/4″ 0.343 29.88
50SF112 112 SF 22.650 22.285 B 2 15/16″ 2 1/4″ 2 1/4″ 4 5/8″ 1 21/32″ 29/32″ 1 1/4″ 0.343 40.10

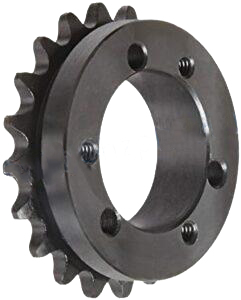

#50 BTB Sprockets

Size Tooth Count Bushing Outside Diameter Pitch Diameter Max. Bore Dimension (L) Dimension (C) Type Weight (LBS)
50BTB12 12 1008 2.708 2.415 1′ 7/8″ 1 15/16” B 0.3
50BTB13 13 1008 2.911 2.612 1” 7/8″ 1 13/16” B 0.3
50BTB14 14 1008 3.113 2.809 1” 7/8″ 1 15/16” B 0.3
50BTB15 15 1210 3.315 3.006 1 1/4″ 1” 2 15/32 B 0.6
50BTB16 16 1610 3.517 3.204 1 5/8″ 1” 2 25/32” B 0.9
50BTB17 17 1610 3.719 3.401 1 5/8″ 1” 2 25/32” B 0.9
50BTB18 18 1610 3.920 3.599 1 5/8″ 1” 2 25/32” B 0.9
50BTB19 19 1610 4.120 3.797 1 5/8″ 1” 3” B 0.9
50BTB20 20 1610 4.321 3.995 1 5/8″ 1” 3 1/4″ B 0.9
50BTB21 21 1610 4.522 4.193 1 5/8″ 1” 3 1/2″ B 0.9
50BTB22 22 1610 4.722 4.392 1 5/8″ 1” 3 1/2″ B 0.9
50BTB23 23 2012 4.922 4.590 2” 1 1/4″ 3 7/8″ B 1.7
50BTB24 24 2012 5.122 4.788 2” 1 1/4″ 4” B 1.7
50BTB25 25 2012 5.322 4.987 2” 1 1/4″ 4” B 1.7
50BTB26 26 2012 5.522 5.185 2” 1 1/4″ 4” B 1.7
50BTB27 27 2012 5.723 5.384 2” 1 1/4″ 4” B 1.7
50BTB28 28 2012 5.922 5.582 2” 1 1/4″ 4” B 1.7
50BTB30 30 2012 6.321 5.979 2” 1 1/4″ 3 9/16″ B 1.7
50BTB32 32 2012 6.721 6.376 2” 1 1/4″ 3 9/16″ B 1.7
50BTB35 35 2012 7.319 6.972 2” 1 1/4″ 3 9/16″ B 1.7
50BTB36 36 2012 7.519 7.171 2” 1 1/4″ 3 9/16″ B 1.7
50BTB40 40 2012 8.316 7.966 2” 1 1/4″ 3 9/16″ B 1.7
50BTB42 42 2012 8.715 8.363 2” 1 1/4″ 3 9/16″ B 1.7
50BTB45 45 2012 9.313 8.960 2” 1 1/4″ 3 9/16″ B 1.7
50BTB48 48 2012 9.911 9.556 2” 1 1/4″ 3 9/16″ B 1.7
50BTB54 54 2012 11.106 10.749 2” 1 1/4″ 3 9/16″ B 1.7
50BTB60 60 2012 12.301 11.942 2” 1 1/4″ 3 9/16″ B 1.7
50BTB70 70 2517 14.292 13.931 2 1/2″ 1 3/4″ 4 1/4″ B 3.5
50BTB72 72 2517 14.690 14.329 2 1/2″ 1 3/4″ 4 1/4″ B 3.5
50BTB80 80 2517 16.282 15.920 2 1/2″ 1 3/4″ 4 1/4″ B 3.5
50BTB84 84 2517 17.079 16.715 2 1/2″ 1 3/4″ 4 1/4″ B 3.5
50BTB96 96 2517 19.102 19.102 2 1/2″ 1 3/4″ 4 1/4″ B 3.5
50BTB112 112 2517 22.285 22.285 2 1/2″ 1 3/4″ 4 1/4″ B 3.5

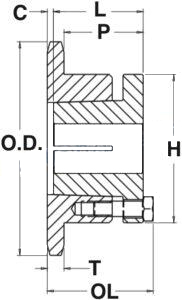

#50 Taper Bushed Sprockets



Size Tooth Count Bushing Outside Diameter Pitch Diameter  Type Max. Bore Dimension (OL) Dimension (L) Dimension (C) Dimension (H) Dimension (P) Dimension (T)  Weight (LBS)
50H13H 13 H 2.910 2.612 3 1 1/2″ 1 21/32″ 1 1/4″ 7/32″ 2 1/2′ 1 1/8″ 0.343 0..6
50H14H 14 H 3.110 2.809 3 1 1/2″ 1 19/32″ 1 1/4″ 5/32″ 2 1/2” 1 1/16″ 0.343 0.6
50H15H 15 H 3.320 3.006 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 0.8
50P15 15 P1 3.320 3.006 4 1 3/4″ 2 3/16 1 15/16″ – 3” 1 19/32″ 0.343 1.1
50H16H 16 H 3.520 3.204 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 0.9
50P16 16 P1 3.520 3.204 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 1.4
50H17H 17 H 3.720 3.401 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.0
50P17 17 P1 3.720 3.401 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 1.4
50H18H 18 H 3.920 3.599 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.1
50P18 18 P1 3.920 3.599 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 1.8
50H19H 19 H 4.120 3.797 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.3
50P19 19 P1 4.120 3.797 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 1.8
50H20H 20 H 4.320 3.995 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.5
50P20 20 P1 4.320 3.995 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.0
50H21H 21 H 4.520 4.194 3 1 1/2″ 1 1/12″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.4
50P21 21 P1 4.520 4.194 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.1
50H22H 22 H 4.720 4.392 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.5
50P22 22 P1 4.720 4.392 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.2
50H23H 23 H 4.920 4.590 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.7
50P23 23 P1 4.920 4.590 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.4
50Q23 23 Q1 4.920 4.590 4 2 11/16″ 2 22/32″ 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 3.2
50H24H 24 H 5.120 4.788 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.8
50P24 24 P1 5.120 4.788 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.6
50Q24 24 Q1 5.120 4.788 4 2 11/16″ 2 22/32″ 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 3.5
50H25H 25 H 5.320 4.987 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 1.9
50P25 25 P1 5.320 4.987 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.7
50Q25 25 Q1 5.320 4.987 4 2 11/16″ 2 22/32″ 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 3.6
50H26H 26 H 5.520 5.185 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 2.0
50P26 26 P1 5.520 5.185 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.8
50Q26 26 Q1 5.520 5.185 4 2 11/16″ 2 25/32 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 3.7
50H27H 27 H 5.720 5.384 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 2.2
50P27 27 P1 5.720 5.384 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 2.9
50Q27 27 Q1 5.720 5.384 4 2 11/16″ 2 25/32 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 3.8
50H28H 28 H 5.920 5.582 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 2.5
50P28 28 P1 5.920 5.582 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 3.0
50Q28 28 Q1 5.920 5.582 4 2 11/16″ 2 22/32″ 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 4.0
50P29 29 P1 6.120 5.781 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 3.4
50H30H 30 H 6.320 5.979 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2″ 31/32″ 0.343 2.9
50P30 30 P1 6.320 5.979 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 3.6
50Q30 30 Q1 6.320 5.979 4 2 11/16″ 2 22/32″ 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 5.6
50P31 31 P1 6.520 6.178 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 3.6
50H32H 32 H 6.720 6.376 3 1 1/2″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 3.2
50P32 32 P1 6.720 6.376 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 3.9
50Q32 32 Q1 6.720 6.376 4 2 11/16″ 2 25/32″ 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 6.1
50H33H 33 H 6.920 6.575 3 1 1/2″ 1 1/2″ 1 1/4″ 2 1/2” 31/32″ 0.343 3.4
50P33 33 P1 6.920 6.575 4 1 3/4″ 2 3/16″ 1 15/16″ 3” 1 19/32″ 0.343 4.1
50H34H 34 H 7.120 6.774 3 1 1/2″ 1 1/2″ 1 1/4″ 2 1/2” 31/32″ 0.343 3.7
50P34 34 P1 7.120 6.774 4 1 3/4″ 2 3/16″ 1 15/16″ 3″ 1 19/32″ 0.343 4.3
50H35H 35 H 7.320 6.972 3 1 1/2″ 1 1/2″ 1 1/4″ 2 1/2” 31/32″ 0.343 3.8
50P35 35 P1 7.320 6.972 4 1 3/4″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 4.3
50Q35 35 Q1 7.320 6.972 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8″ 2 5/32″ 0.343 6.8
50H36H 36 H 7.520 7.171 3 2 11/16″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 4.0
50P36 36 P1 7.520 7.171 4 1 1/2″ 2 3/16″ 1 15/16″ – 3” 1 19/32″ 0.343 4.8
50Q36 36 Q1 7.520 7.171 4 1 3/4″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 6.8
50Q37 37 Q1 7.720 7.370 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 7.0
50H38H 38 H 7.920 7.569 3 2 11/16″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 4.4
50Q38 38 Q1 7.920 7.569 4 1 1/2″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 7.4
50Q39 39 Q1 8.120 7.767 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 7.6
50H40H 40 H 8.320 7.966 3 2 11/16″ 1 1/2″ 1 1/4″ 1/16″ 2 1/2” 31/32″ 0.343 4.8
50Q40 40 Q1 8.320 7.966 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 8.0
50Q41 41 Q1 8.520 8.165 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 8.2
50Q42 42 Q1 8.720 8.363 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 8.3
50Q44 44 Q1 9.110 8.761 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 8.6
50Q45 45 Q1 9.310 8.960 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 9.0
50Q47 47 Q1 9.710 9.357 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 9.3
50Q48 48 Q1 9.910 9.556 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 9.6
50Q50 50 Q1 10.310 9.954 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 9.8
50Q54 54 Q1 11.110 10.749 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 11.3
50Q56 56 Q1 11.500 11.147 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 12.3
50Q60 60 Q1 12.300 11.942 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 13.3
50Q70 70 Q1 14.290 13.931 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 16.9
50Q72 72 Q1 14.690 14.329 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 18.7
50Q80 80 Q1 16.280 15.920 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 21.1
50Q84 84 Q1 17.080 16.715 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 24.3
50Q96 96 Q1 19.470 19.102 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 29.8
50Q112 112 Q1 22.650 22.285 4 2 11/16″ 2 25/32” 2 1/2″ – 4 1/8” 2 5/32″ 0.343 39.3

Stainless Steel 50 Chain Sprockets

For food-grade, wash-down, and corrosive environments we stock and supply a wide range of 50 stainless steel roller chain sprockets.
B-Hub 50SS Sprockets:

Size Tooth Count Outside Diameter Type Stock Bore Maximum Recommended Bore Hub Diameter Length Thru Bore Weight (LBS)
50B8SS 6 1.884″ B 5/8″ 5/8″ 1-1/8″ 1″ 0.25
50B9SS 9 2.093″ B 5/8″ 3/4″ 1-3/8″ 1″ 0.36
50B10SS 10 2.300″ B 5/8″ 7/8″ 1-9/16″ 1″ 0.50
50B11SS 11 2.500″ B 5/8″ 1″ 1-3/4″ 1″ 0.60
50B12SS 12 2.710″ B 5/8″ 1-1/4″ 1-61/64″ 1″ 0.70
50B13SS 13 2.910″ B 5/8″ 1-5/16″ 1-7/8″ 1″ 0.80
50B14SS 14 3.110″ B 5/8″ 1-7/16″ 2-1/8″ 1″ 1.00
50B15SS 15 3.320″ B 5/8″ 1-1/2″ 2-3/8″ 1″ 1.30
50B16SS 16 3.520″ B 5/8″ 1-3/4″ 2-1/4″ 1″ 1.50
50B17SS 17 3.720″ B 5/8″ 1-7/8″ 2-11/16″ 1″ 1.80
50B18SS 18 3.920″ B 5/8″ 1-7/8″ 2-7/8″ 1″ 2.00
50B19SS 19 4.120″ B 5/8″ 1-3/4″ 2-1/2″ 1″ 2.23
50B20SS 20 4.320″ B 3/4″ 1-3/4″ 3″ 1″ 2.30
50B21SS 21 4.520″ B 3/4″ 2″ 3″ 1″ 2.42
50B22SS 22 4.720″ B 3/4″ 2″ 3″ 1″ 2.54
50B23SS 23 4.920″ B 3/4″ 2″ 3″ 1″ 2.67
50B24SS 24 5.120″ B 3/4″ 2″ 3″ 1-1/4″ 3.38
50B25SS 25 5.320″ B 3/4″ 2″ 3″ 1-1/4″ 3.42
50B26SS 26 5.520″ B 3/4″ 2″ 3″ 1-1/4″ 3.57
50B28SS 28 5.920″ B 3/4″ 2″ 3″ 1-1/4″ 3.88
50B30SS 30 6.320″ B 3/4″ 2-1/4″ 3-1/4″ 1-1/4″ 4.54
50B32SS 32 6.721″ B 3/4″ 2-1/4″ 3-1/4″ 1-1/4″ 4.96
50B35SS 35 7.320″ B 3/4″ 2-1/4″ 3-1/4″ 1-1/4″ 5.44
50B36SS 36 7.519″ B 3/4″ 2-1/4″ 3-1/4″ 1-1/4″ 5.64
50B40SS 40 8.320″ B 3/4″ 2-1/4″ 3-1/4″ 1-1/4″ 6.50
50B45SS 45 9.310″ B 3/4″ 2-1/2″ 3-3/4″ 1-1/4″ 8.50
50B48SS 48 9.911″ B 1″ 2-1/2″ 3-3/4″ 1-1/4″ 9.28
50B54SS 54 11.106″ B 1″ 2-1/2″ 3-3/4″ 1-1/4″ 11.00
50B60SS 60 12.300″ B 1″ 2-1/2″ 3-3/4″ 1-1/4″ 14.00

A-Plate 50SS Sprockets:

Size Tooth Count Outside Diameter Weight (LBS)
50A13SS 13 2.910″ 0.42
50A14SS 14 3.110″ 0.50
50A15SS 15 3.320″ 0.54
50A16SS 16 3.520″ 0.68
50A17SS 17 3.720″ 0.76
50A18SS 18 3.920″ 0.86
50A19SS 19 4.120″ 0.94
50A20SS 20 4.320″ 1.06
50A21SS 21 4.520″ 1.40
50A22SS 22 4.720″ 1.60
50A23SS 23 4.920″ 1.70
50A24SS 24 5.120″ 1.80
50A25SS 25 5.320″ 1.90
50A26SS 26 5.520″ 1.70
50A28SS 28 5.920″ 2.50
50A30SS 30 6.320″ 2.70
50A32SS 32 6.721″ 2.72
50A35SS 35 7.320″ 3.70
50A36SS 36 7.519″ 3.82
50A40SS 40 8.320″ 4.70
50A45SS 45 9.310″ 6.00
50A46SS 46 9.911″ 6.58
50A54SS 54 11.106″ 8.30
50A60SS 60 12.300″ 10.80

50 Roller Chain Sprockets

#50 A-Plate Sprockets

50 B-Hub Sprockets

50 Roller Chain Sprockets

50 C-Hub Sprockets

#50 BTB Type Sprockets

50 Roller Chain Sprockets

50 H Type Sprockets

#50 P Type Sprockets

50 Q Type Sprockets

#50 SDS Type Sprockets

50 Roller Chain Sprockets

50 SH Type Sprockets(50 Roller Chain Sprockets)

#50 SF Type Sprockets

50 JA Type Sprockets(50 Roller Chain Sprockets)

#50 Weld-On Hub Sprockets

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “50 Roller Chain Sprockets”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

678 Series Sprockets

1207 Series Sprockets

, ,
698 Series Sprockets

1568 Series Sprockets

,
625R Series Sprockets

2180 Series Sprockets

,
X678A sprocket

X348 Sprockets Drop Forged Rivetless Chain Sprockets

,
X678A sprocket

X678A sprocket Drop Forged Rivetless Chain Sprockets

,
Cast Iron Sprockets

Cast Iron Sprockets 06B 08B 10B 12B

,
X458 sprocket

X458 sprocket Drop Forged Rivetless

,
Z11690 Straw Walker Sprocket For John Deere Combine

Straw Walker Sprocket For John Deere Combine

, , ,
