5B Gripbelt Sheaves with Split Taper Bushings for Use with All “A” and “B” Section Belts

5B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 7.35″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with R1 taper bushings, which we also stock. Most of our five-groove 5B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Category: B/C/D series sheaves Tag: B Sheaves with STB bushing for “A/B” Belts

Description

5B Gripbelt Sheaves with Split Taper Bushings

5B series pulleys(5B Gripbelt Sheaves with Split Taper Bushings) are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 7.35″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with R1 taper bushings, which we also stock. Most of our five-groove 5B split taper bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

5B Style Pulley Size Chart

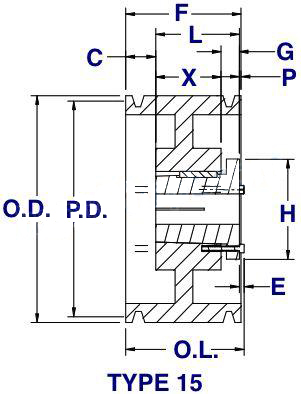

Size	Bushing Type	Pitch Diameter (4L/A)	Pitch Diameter (5L/B)	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Pulley Weight (LBS)
5B70R	R1	6.6″	7.0″	7.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	17.0
5B74R	R1	7.0″	7.4″	7.75″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	20.3
5B80R	R1	7.6″	8.0″	8.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	24.8
5B86R	R1	8.2″	8.6″	8.95″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	27.3
5B90R	R1	8.6″	9.0″	9.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	29.1
5B94R	R1	9.0″	9.4″	9.75″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	30.0
5B110R	R1	10.6″	11.0″	11.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	32.8
5B124R	R1	12.0″	12.4″	12.75″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	36.0
5B136R	R1	13.2″	13.6″	13.95″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	40.3
5B154R	R1	15.0″	15.4″	15.75″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	45.0
5B160R	R1	15.6″	16.0″	16.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	48.0
5B184R	R1	18.0″	18.4″	18.75″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	54.0
5B200R	R1	19.5″	20.0″	20.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	64.0
5B250R	R1	24.5″	25.0″	25.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	79.0
5B300R	R1	29.5″	30.0″	30.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	115.0
5B380R	R1	37.5″	38.0″	38.35″	15	4-5/32″	2-7/8″	1/8″	1″	5-3/8″	4″	7/8″	2″	9/32″	150.0

V-belt Pulley(5B Gripbelt Sheaves with Split Taper Bushings) Specifications:

V-Belt Pulley Type	Light Duty Bored to size Pulleys (AK, BK,2AK,2BK,3BK series)
	Light Duty Taper Bore Pulleys (AK-H, BK-H,2AK-H,2BK-H series)
	Split taper bushed Pulleys (1TB,2TB,3TB series)
	Heavy Duty QD Pulleys (1B,2B,3B,1C,2C,3C,4C,5C series etc)
	Light Duty Variable Speed Pulleys (1VP,2VP,1VL,1VM series)
	QD taper bore sheaves Pulleys (3V,5V,8V series)
	Single Groove Pulleys (OK, OL, AL series)
	According to customers’ requirements or drawings
Materials	Cast iron, steel, aluminum, alloy, etc.
Surface treatment	powder coating, zinc plating, black oxide, etc
Standard	ANSI.API.BS.DIN.JIS.GB.etc.
Machine Equipment	CNC center, CNC milling machine, CNC turning machine, CNC drilling
Machine Equipment	machine, CNC lathes, lathes, 4-axis machines, etc.
Application field	Equipment accessories, Airplane, Ship, Bicycle, Motorcycle, Auto, Medical, Chemical, Wheel, Sports, Anchor, Weapon, etc.
Certification	ISO9001:2015
Warranty	One year after shipment
QC	1. Materials are to be checked carefully before production.
	2. Strict processing quality control
	3.100% inspection before shipment.
Inspection Equipment	CMM, Projection, Calipers, Micro caliper, Thread Micro caliper; Automatic Two / Three Coordinate Measuring Instrument, etc.; Third party inspection available upon customer’s requirements

5B Gripbelt Sheaves with Split Taper Bushings Features:

Iron pulleys of various sizes and 1B,2B,3B,1C,2C,3C,4C,5C series etc.
The pulley is mounted with a taper lock bush to the shaft, easy mounting, and dismounting.
The bore and keyway will be worn after a long time of working; you just have to replace the taper bushing with a new one.
The pulley can use different shaft diameters with proper taper bushing.
The pulley can serve a long time with a tapered bushing. Thus, the repair and maintenance cost is reduced, saving time and efficiency.

Technological Processing

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases. By sea or air shipment.
