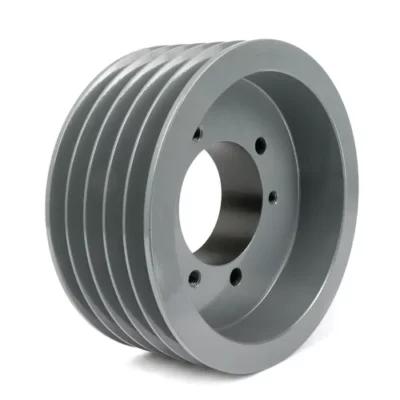

5B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size, they are made to use with SD, SK, SF, or E QD bushings, which we also stock. Most of our five-groove 5B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don’t have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the “fixed-bore” style.

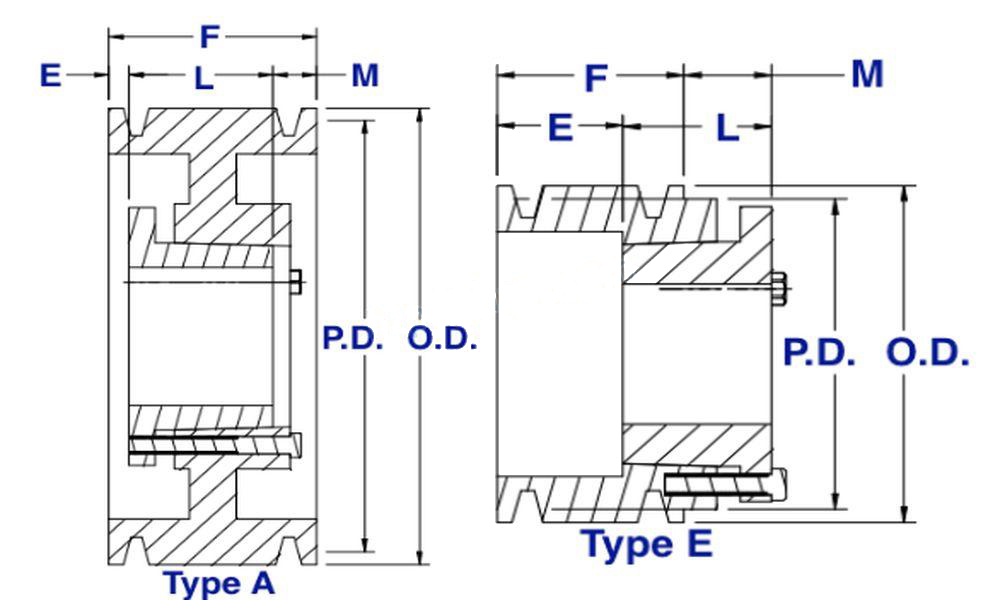

5B Style QD Bushed Pulley Size Chart
Size
|
Bushing Type
|
Pulley Type
|
Pitch Diameter (5L/B)
|
Pitch Diameter (4L/ A)
|
Outside Diameter
|
(E)
|
(F)
|
(L)
|
(M)
|
Pulley Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|
5B34SD | SD | E | 3.4″ | 3.0″ | 3.75″ | 3-7/32″ | 4″ | 1-13/16″ | 1-1/32″ | 6.1 |
5B36SD | SD | E | 3.6″ | 3.2″ | 3.95″ | 3-7/32″ | 4″ | 1-13/16″ | 1-1/32″ | 6.6 |
5B38SD | SD | E | 3.8″ | 3.4″ | 4.15″ | 3-7/32″ | 4″ | 1-13/16″ | 1-1/32″ | 7.1 |
5B40SD | SD | E | 4.0″ | 3.6″ | 4.35″ | 2-27/32″ | 4″ | 1-13/16″ | 21/32″ | 7.4 |
5B42SD | SD | E | 4.2″ | 3.8″ | 4.55″ | 2-27/32″ | 4″ | 1-13/16″ | 21/32″ | 8.0 |
5B44SD | SD | E | 4.4″ | 4.0″ | 4.75″ | 2-27/32″ | 4″ | 1-13/16″ | 21/32″ | 8.5 |
5B46SD | SD | A | 4.6″ | 4.2″ | 4.95″ | 21/32″ | 4″ | 1-13/16″ | 1-17/32″ | 9.0 |
5B48SD | SD | A | 4.8″ | 4.4″ | 5.15″ | 21/32″ | 4″ | 1-13/16″ | 1-17/32″ | 9.4 |
5B50SD | SD | A | 5.0″ | 4.6″ | 5.35″ | 21/32″ | 4″ | 1-13/16″ | 1-17/32″ | 10.0 |
5B52SD | SD | A | 5.2″ | 4.8″ | 5.55″ | 21/32″ | 4″ | 1-13/16″ | 1-17/32″ | 10.4 |
5B54SK | SK | A | 5.4″ | 5.0″ | 5.75″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 10.8 |
5B56SK | SK | A | 5.6″ | 5.2″ | 5.95″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 11.3 |
5B58SK | SK | A | 5.8″ | 5.4″ | 6.15″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 12.0 |
5B60SK | SK | A | 6.0″ | 5.6″ | 6.35″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 14.0 |
5B62SK | SK | A | 6.2″ | 5.8″ | 6.55″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 15.0 |
5B64SK | SK | A | 6.4″ | 6.0″ | 6.75″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 16.0 |
5B66SK | SK | A | 6.6″ | 6.2″ | 6.95″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 17.0 |
5B68SK | SK | A | 6.8″ | 6.4″ | 7.15″ | 17/32″ | 4″ | 1-13/16″ | 1-17/32″ | 18.0 |
5B70SF | SF | A | 7.0″ | 6.6″ | 7.35″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 19.0 |
5B74SF | SF | A | 7.4″ | 7.0″ | 7.75″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 20.0 |
5B80SF | SF | A | 8.0″ | 7.6″ | 8.35″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 21.0 |
5B86SF | SF | A | 8.6″ | 8.2″ | 8.95″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 22.0 |
5B94SF | SF | A | 9.4″ | 9.0″ | 9.75″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 24.0 |
5B110SF | SF | A | 11.0″ | 10.6″ | 11.35″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 29.0 |
5B124SF | SF | A | 12.4″ | 12.0″ | 12.75″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 34.0 |
5B136SF | SF | A | 13.6″ | 13.2″ | 13.95″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 38.0 |
5B154SF | SF | A | 15.4″ | 15.0″ | 15.75″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 46.0 |
5B160SF | SF | A | 16.0″ | 15.6″ | 16.35″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 49.0 |
5B184SF | SF | A | 18.4″ | 18.0″ | 18.75″ | 15/32″ | 4″ | 1-15/16″ | 1-15/32″ | 55.0 |
5B200E | E | A | 20.0″ | 19.6″ | 20.35″ | 3/32″ | 4″ | 2-3/4″ | 1-5/32″ | 65.0 |
5B250E | E | A | 25.0″ | 24.6″ | 25.35″ | 3/32″ | 4″ | 2-3/4″ | 1-5/32″ | 86.0 |
5B300E | E | A | 30.0″ | 29.6″ | 30.35″ | 3/32″ | 4″ | 2-3/4″ | 1-5/32″ | 102.0 |
5B380E | E | A | 38.0″ | 37.6″ | 38.35″ | 3/32″ | 4″ | 2-3/4″ | 1-5/32″ | 132.0 |

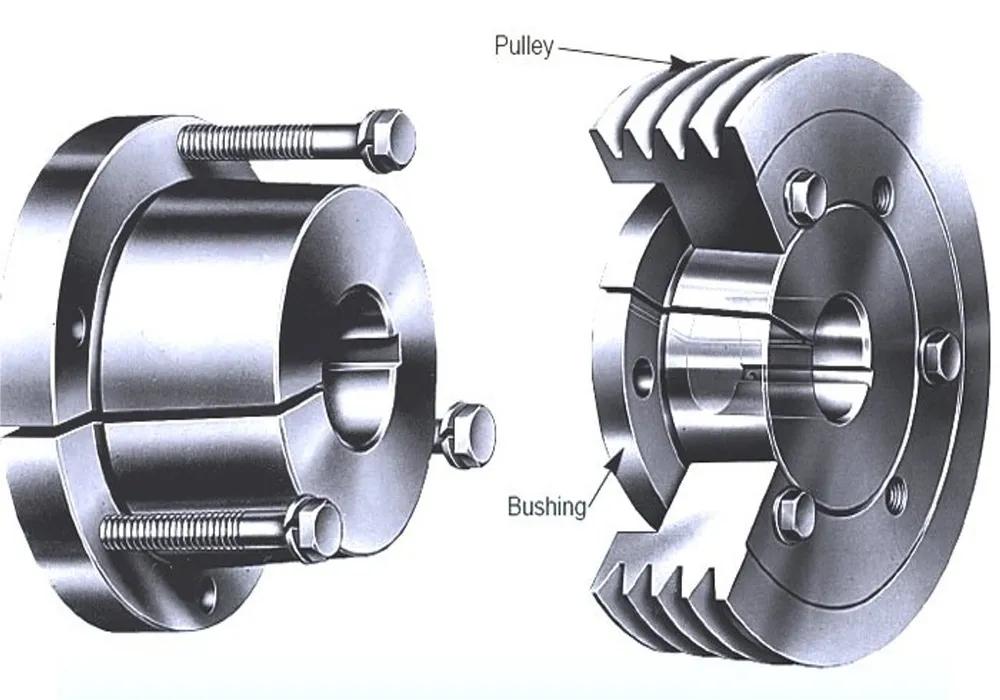

What Role Does the QD Bushing Play in the Pulley?
Quick-Disconnect (QD) bushings are used to mount pulleys to shafts. They help transfer loads between the shaft and pulley and prevent keying out. QD bushings are also designed to provide a secure mounting point for devices.
1. Quick-Disconnect (QD) bushings are used to attach pulleys to shafts
Quick-Disconnect bushings are a popular choice for attaching pulleys to shafts and motors. They provide quick and easy removal without damaging the shaft or other drive components. They are also designed to eliminate fretting corrosion on shafts.
Quick-Disconnect bushings are easily installed and removed and are very easy to use. They are typically made of bronze or PTFE and are available in different sizes and materials. QD bushings are available for various applications, including hydraulic cranes, wind turbines, satellite antennas, and extractors.
Quick-Disconnect bushings are an excellent choice for attaching pulleys to shafts because they are easy to install. The flange-less design of these bushings provides a strong clamping force and minimizes axial runout, while the symmetrical hole pattern offers a good balance.
2. They transfer loads
QD bushings are used to transfer loads in the pulley. The bushing’s size must match the shaft’s size. Bushing tolerances are specified in the MPTA Detachable Bushing and Mating Hub Guidelines. Maintaining a gap of approximately 1/8 to 3/8-in between the bushing’s flange and pulley hub is essential to prevent bottoming out or cracking.
Bushings can be made with different types of materials. For example, some industries have traditionally used specific bushing types. For instance, large bore and flanged bushings can be installed in conventional orientation, while small diameter pulleys must be mounted. Bushings with a long bore length and symmetrical hole pattern minimize axial runout and offer a good balance. They can be secured in place with a set screw.
3. They mount devices on shafts
QD bushings are used to mount devices on shafts. The bushings are mounted on rotating device shafts and can be reversed to use them on different shafts. The bushings are precision machined to fit a particular device. They come in a variety of sizes, ranging from JA to M.
The bushings allow for smaller diameter solid shafts, yet they are as strong as keyed shafts. In addition, they can be installed in both the axial and angular directions, making installation and removal easy. Keyless bushings are often cheaper for low-volume applications since they do not require threads. They also allow for generous shaft-to-hub tolerances.
4. They prevent keys from working out of the keyway
QD bushings are an excellent way to prevent a key from working out of the keyway. They control the key from working out of the keyway by preventing it from rotating on its axis. They are available in stainless steel and are made to order to fit the exact dimensions of your key. They are helpful for various automotive, machine tools, and marine applications.
Before installing a QD bushing, you should first clean the keyway and the bushing. You should also remove any oil or anti-seize lubricants. Next, install the bushing by placing the flange end first, then securing the bushing to the shaft. Then, slide the sprocket onto the shaft, with the large end of the sprocket in line with the bushing. Once the bushing is in place, drill the bolt holes and insert the pull-up bolts. Lock washers should be installed on the sprocket if it is tapered.
5. They handle different levels of torque and loads
QD bushings are used for shaft-mounted devices to transfer torque and reduce vibration. They come in various styles, including keyless, split taper, and taper locking. Keyless bushings are ideal for tightening shafts without backlash. Quick disconnect bushings are easy to install and provide strong clamping force. They can also be keyed or split to prevent shaft rotation.
QD bushings are metals, such as iron, steel, and gray iron. The material they’re made from varies according to the torque and load they’re designed to handle, but they’re typically used on pulleys.
Technological Processing
Company Profile
Power-trans is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.
Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.
Our factory adheres to the enterprise concept of “quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development.” We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.
Warehouse Stock
The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.
Packaging & Shipping
Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
