5TB Gripbelt Pulleys with Split Taper Bushings
5TB series Gripbelt Pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75″ to 38.35″ in diameter. Depending on the pulley size. They are making to use with P1, P2, Q1, or Q2 taper bushings, which we also stock. Most of our 5TB pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion.

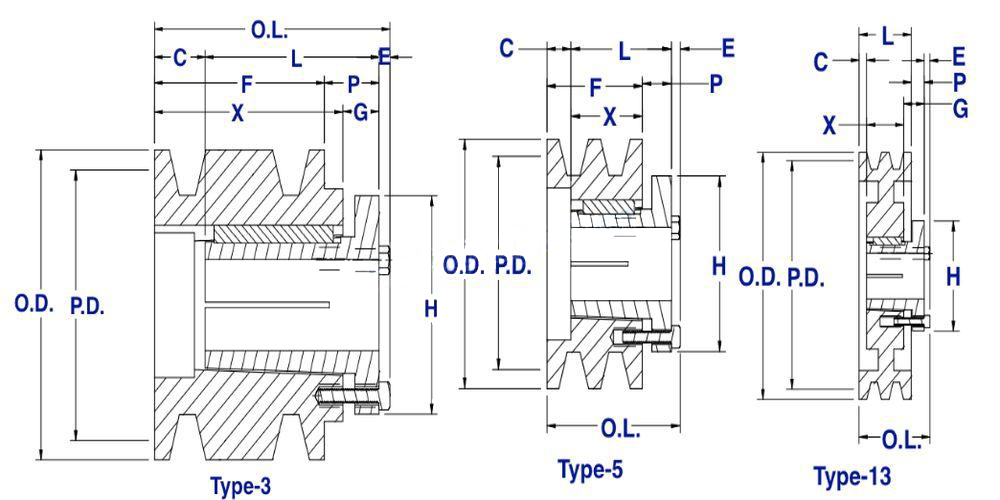

5TB Style Pulley Size Chart
Size | Bushing Type | Pitch Diameter (4L/A) | Pitch Diameter (5L/B) | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Pulley Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5TB34 | P2 | 3.0″ | 3.4″ | 3.75″ | 3 | 5-5/16″ | 2-15/16″ | 1-1/16″ | 2-1/8″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 5.3 |
5TB36 | P2 | 3.2″ | 3.6″ | 3.95″ | 3 | 5-5/16″ | 2-15/16″ | 1-1/16″ | 2-1/8″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 6.1 |
5TB38 | P2 | 3.4″ | 3.8″ | 4.15″ | 5 | 4-7/8″ | 2-15/16″ | 5/8″ | 1-11/16″ | 3″ | 4″ | — | 2-5/16″ | 1/4″ | 6.1 |
5TB40 | P2 | 3.6″ | 4.0″ | 4.35″ | 5 | 4-7/8″ | 2-15/16″ | 5/8″ | 1-11/16″ | 3″ | 4″ | — | 2-5/16″ | 1/4″ | 7.0 |
5TB42 | P2 | 3.8″ | 4.2″ | 4.55″ | 5 | 4-7/8″ | 2-15/16″ | 5/8″ | 1-11/16″ | 3″ | 4″ | — | 2-5/16″ | 1/4″ | 7.8 |
5TB44 | P2 | 4.0″ | 4.4″ | 4.75″ | 13 | 4-1/4″ | 2-15/16″ | 0 | 1-1/16″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 8.5 |
5TB46 | P2 | 4.2″ | 4.6″ | 4.95″ | 13 | 4-1/4″ | 2-15/16″ | 0 | 1-1/16″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 9.8 |
5TB48 | P2 | 4.4″ | 4.8″ | 5.15″ | 13 | 4-1/4″ | 2-15/16″ | 0 | 1-1/16″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 10.5 |
5TB50 |
P2 | 4.6″ | 5.0″ | 5.35″ | 13 | 4-1/4″ | 2-15/16″ | 0 | 1-1/16″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 11.6 |
5TB52 | P2 | 4.8″ | 5.2″ | 5.55″ | 13 | 4-1/4″ | 2-15/16″ | 0 | 1-1/16″ | 3″ | 4″ | 5/8″ | 2-5/16″ | 1/4″ | 12.5 |
5TB54 | Q1 | 5.0″ | 5.4″ | 5.75″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 10.4 |
5TB56 | Q1 | 5.2″ | 5.6″ | 5.95″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 11.8 |
5TB58 | Q1 | 5.4″ | 5.8″ | 6.15″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 12.8 |
5TB60 | Q1 | 5.6″ | 6.0″ | 6.35″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 13.8 |
5TB62 | Q1 | 5.8″ | 6.2″ | 6.55″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 14.6 |
5TB64 | Q1 | 6.0″ | 6.4″ | 6.75″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 16.4 |
5TB66 | Q1 | 6.2″ | 6.6″ | 6.95″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 17.1 |
5TB68 | Q1 | 6.4″ | 6.8″ | 7.15″ | 13 | 4-9/32″ | 2-1/2″ | 0 | 1-1/2″ | 4-1/8″ | 4″ | 3/4″ | 1-3/4″ | 9/32″ | 17.9 |
5TB70 | Q2 | 6.6″ | 7.0″ | 7.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 20.9 |
5TB74 | Q2 | 7.0″ | 7.4″ | 7.75″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 19.8 |
5TB80 |
Q2 | 7.6″ | 8.0″ | 8.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 22.3 |
5TB86 | Q2 | 8.2″ | 8.6″ | 8.95″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 29.5 |
5TB90 | Q2 | 8.6″ | 9.0″ | 9.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 28.6 |
5TB94 | Q2 | 9.0″ | 9.4″ | 9.75″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 29.5 |
5TB110 | Q2 | 10.6″ | 11.0″ | 11.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 32.8 |
5TB124 | Q2 | 12.0″ | 12.4″ | 12.75″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 34.4 |
5TB136 | Q2 | 13.2″ | 13.6″ | 13.95″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 41.0 |
5TB154 | Q2 | 15.0″ | 15.4″ | 15.75″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 45.3 |
5TB160 | Q2 | 15.6″ | 16.0″ | 16.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 48.0 |
5TB184 | Q2 | 18.0″ | 18.4″ | 18.75″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 57.3 |
5TB200 | Q2 | 19.5″ | 20.0″ | 20.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 66.0 |
5TB250 | Q2 | 24.5″ | 25.0″ | 25.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 82.5 |
5TB300 | Q2 | 29.5″ | 30.0″ | 30.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 117.0 |
5TB380 | Q2 | 37.5″ | 38.0″ | 38.35″ | 13 | 4-13/32″ | 3-1/2″ | 1/8″ | 5/8″ | 4-1/8″ | 4″ | 3/4″ | 2-3/4″ | 9/32″ | 159.0 |
Products Description:
We are the leading top Chinese manufacturer and specialize in various high-quality V belt pulley
- European standard and American standard
- Material: GG25
- Surface treatment: paint, phosphate, zinc plated
- Tolerance: conform to customers’ requirement
- Pilot bore, finished bore, taper bore, bore for QD bushing
- OEM/ODM service offered
- V Belt pulley type: SPA, SPB, SPC, SPZ, AK, AKH, 2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
Applications of 5TB Series Pulley
5TB series pulley sheaves application in: small diesel engine power, farm vehicle, tractor, car, mining equipment, processing equipment, textile machinery. Packing machinery, lathe, forging machine, small horsepower motorcycle’s powertrain. The transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.
