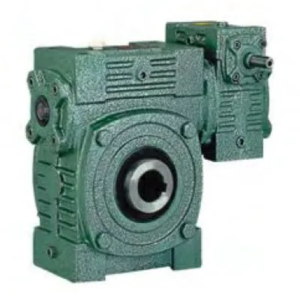

WPWEK Series Double Stage Worm Gearboxes
10D Series QD Bushing Sheaves
Click to enlarge

5V QD Sheaves for 5V Belts

Categories: ,
Description

5V QD Sheaves for 5V Belts

Standard Keyseats

1 3/8″ Bore Bushing also available with 3/8×3/16″Keyway.

Bore Range Keyseat Bore Range Keyseat
1/2″-9/16″ 1/8″ x 1/16″ 2 5/16-2 3/4 5/8×5/16
5/8 -7/8 3/16 x 3/32 2 13/16-3 1/4 3/4 x 3/8
15/16-1 1/4 1/4 x 1/8 3 3/8-3 3/4 7/8×7/16
1 5/16-1 3/8 5/16 x 5/32 3 7/8 -4 1/4 1×1/2
1 7/16-1 3/4 3/8×3/16 4 9/16-5 1/2 1 1/4 x 5/8
1 13/16-2 1/4 1/2 x 1/4
Table No.2

Specifications

Part No. Bushing B ore Range Type D.D.”5V”Belts O.D. E L M Wt.Less

Bushing
2 GROOVES, F = 1 11/16″
25V440SH SH 1/2″-1 5/8″ D-Sol. 4.30″ 4.40″ 11/32″ 15/16″ 23/32″ 5.8
25V465SDS SDS 1/2-2 E-Sol. 4.55 4.65 27/32 1 5/16 15/32 6.6
25V490SDS SDS 1/2-2 A-Sol. 4.80 4.90 1/32 1 5/16 11/32 6.8
25V520SDS SDS 1/2-2 A-Sol. 5.10 5.20 1/32 1 5/16 11/32 7.0
25V550SDS SDS 1/2-2 A-Sol. 5.40 5.50 1/32 1 5/16 11/32 7.2
25V590SDS SDS 1/2-2 A-Sol. 5.80 5.90 1/32 15/16 11/32 7.6
25V630SK SK 1/2 -2 5/8 D-Sol. 6.20 6.30 11/32 1 15/16 3/32 9.4
25V670SK SK 1/2 -2 5/8 D-Sol. 6.60 6.70 11/32 1 15/16 3/32 10.5
25V710SK SK 1/2 -2 5/8 D-Sol. 7.00 7.10 11/32 1 15/16 3/32 11.5
25V750SK SK 1/2 -2 5/8 D-Sol. 7.40 7.50 11/32 1 15/16 3/32 12.5
25V800SK SK 1/2 -2 5/8 D-Web 7.90 8.00 11/32 1 15/16 3/32 13.0
25V850SK SK 1/2 -2 5/8 D-Web 8.40 8.50 11/32 1 15/16 3/32 14.0
25V900SK SK 1/2 -2 5/8 D-Arm 8.90 9.00 11/32 1 15/16 3/32 15.2
25V925SK SK 1/2 -2 5/8 D-Arm 9.15 9.25 11/32 1 15/16 3/32 15.3
25V975SK SK 1/2 -2 5/8 D-Arm 9.65 9.75 11/32 1 15/16 3/32 15.5
25V1030SK SK 1/2 -2 5/8 D-Arm 10.20 10.30 11/32 1 15/16 3/32 15.5
25V1090SK SK 1/2 -2 5/8 D-Arm 10.80 10.90 11/32 1 15/16 3/32 16.5
25V1130SK SK 1/2 -2 5/8 D-Arm 11.20 11.30 11/32 1 15/16 3/32 17.8
25V1180SK SK 1/2 -2 5/8 D-Arm 11.70 11.80 11/32 1 15/16 3/32 19.0
25V1250SF SF 1/2-2 15/16 D-Arm 12.40 12.50 13/32 2 1/16 1/32 21.0
25V1320SF SF 1/2-2 15/16 D-Arm 13.10 13.20 13/32 2 1/16 1/32 22.6
25V1400SF SF 1/2-2 15/16 D-Arm 13.90 14.00 13/32 2 1/16 1/32 25.3
25V1500SF SF 1/2-2 15/16 D-Arm 14.90 15.00 13/32 2 1/16 1/32 27.4
25V1600SF SF 1/2-2 15/16 D-Arm 15.90 16.00 13/32 2 1/16 1/32 29.2
25V1870SF SF 1/2-2 15/16 D-Arm 18.60 18.70 13/32 2 1/16 1/32 36.0
25V2120SF SF 1/2-2 15/16 D-Arm 21.10 21.20 13/32 2 1/16 1/32 43.0
25V2360E E 7/8 -3 1/2 C-Arm 23.50 23.60 29/32 2 3/4 5/32 55.0
25V2800E E 7/8 -3 1/2 C-Arm 27.90 28.00 29/32 2 3/4 5/32 67.0
Table 1

Specifications

Part No. Bushing Bore Range Type D.D.”5V”Belts 〇.D. E L M Wt.Less

Bushing
3 GROOVES, F :=2 3/8″ 4 GROOVES, F = 3 1/16″
35V440SDS SDS 1/2-2 E-Sol. 4.30 4.40 1 23/32 1 5/16 21/32 6.5
35V465SDS SDS 1/2-2 E-Sol. 4.55 4.65 1 23/32 1 5/16 21/32 7.6
35V490SDS SDS 1/2-2 A-Sol. 4.80 4.90 13/32 1 5/16 21/32 7.8
35V520SDS SDS 1/2-2 A-Sol. 5.10 5.20 13/32 1 5/16 21/32 8.0
35V550SDS SDS 1/2-2 A-Sol. 5.40 5.50 13/32 1 5/16 21/32 8.2
35V590SDS SDS 1/2-2 A-Sol. 5.80 5.90 13/32 1 5/16 21/32 8.6
35V630SK SK 1/2 -2 5/8 A-Sol. 6.20 6.30 9/32 1 15/16 5/32 10.4
35V670SK SK 1/2 -2 5/8 A-Sol. 6.60 6.70 9/32 1 15/16 5/32 11.7
35V710SF SF 1/2-2 15/16 A-Sol. 7.00 7.10 5/32 2 1/16 5/32 12.7
35V750SF SF 1/2-2 15/16 A-Sol. 7.40 7.50 5/32 2 1/16 5/32 15.0
35V800SF SF 1/2-2 15/16 A-Sol. 7.90 8.00 5/32 2 1/16 5/32 16.5
35V850SF SF 1/2-2 15/16 A-Arm 8.40 8.50 5/32 2 1/16 5/32 18.0
35V900SF SF 1/2-2 15/16 A-Arm 8.90 9.00 5/32 2 1/16 5/32 19.8
35V925SF SF 1/2-2 15/16 A-Arm 9.15 9.25 5/32 2 1/16 5/32 20.7
35V975SF SF 1/2-2 15/16 A-Arm 9.65 9.75 5/32 2 1/16 5/32 22.6
35V1030SF SF 1/2-2 15/16 A-Arm 10.20 10.30 5/32 2 1/16 5/32 24.6
35V1090SF SF 1/2-2 15/16 A-Arm 10.80 10.90 5/32 2 1/16 5/32 26.7
35V1130SF SF 1/2-2 15/16 A-Arm 11.20 11.30 5/32 2 1/16 5/32 28.2
35V1180SF SF 1/2-2 15/16 A-Arm 11.70 11.80 5/32 2 1/16 5/32 29.7
35V1250E E 7/8 -3 1/2 D-Arm 12.40 12.50 13/32 2 3/4 1/32 34.0
35V1320E E 7/8 -3 1/2 D-Arm 13.10 13.20 13/32 2 3/4 1/32 35.0
35V1400E E 7/8″ -3 1/2 D-Arm 13.90 14.00 13/32 2 3/4 1/32 37.0
35V1500E E 7/8 -3 1/2 D-Arm 14.90 15.00 13/32 2 3/4 1/32 38.0
35V1600E E 7/8 -3 1/2 D-Arm 15.90 16.00 13/32 2 3/4 1/32 39.2
35V1870E E 7/8 -3 1/2 D-Arm 18.60 18.70 13/32 2 3/4 1/32 47.2
35V2120E E 7/8 -3 1/2 D-Arm 21.10 21.20 13/32 2 3/4 1/32 55.0
35V2360E E 7/8 -3 1/2 D-Arm 23.50 23.60 13/32 2 3/4 1/32 70.2
35V2800E E 7/8 -3 1/2 D-Arm 27.90 28.00 13/32 2 3/4 1/32 86.5
35V3150F F 1-4 C-Arm 31.40 31.50 25/32 3 3/4 19/32 116
35V3750F F 1-4 C-Arm 37.40 37.50 25/32 3 3/4 19/32 141
35V5000F F 1-4 C-Arm 49.90 50.00 25/32 3 3/4 19/32 211
Table 2
45V440SD SD 1/2-2 E-Sol. 4.30 4.40 1 29/32 1 13/16 21/32 7.5
45V465SD SD 1/2-2 E-Sol. 4.55 4.65 1 29/32 1 13/16 21/32 8.0
45V490SD SD 1/2-2 A-Sol. 4.80 4.90 21/32 1 13/16 19/32 8.5
45V520SD SD 1/2-2 A-Sol. 5.10 5.20 21/32 1 13/16 19/32 8.8
45V550SD SD 1/2-2 A-Sol. 5.40 5.50 21/32 1 13/16 19/32 9.3
45V590SD SD 1/2-2 A-Sol. 5.80 5.90 21/32 1 13/16 19/32 10.1
45V630SK SK 1/2 -2 5/8 A-Sol. 6.20 6.30 17/32 1 15/16 19/32 11.8
45V670SK SK 1/2 -2 5/8 A-Sol. 6.60 6.70 17/32 1 15/16 19/32 13.6
45V710SF SF 1/2-2 15/16 A-Sol. 7.00 7.10 7/32 2 1/16 25/32 14.9
45V750SF SF 1/2-2 15/16 A-Sol. 7.40 7.50 7/32 2 1/16 25/32 17.0
45V800E E 7/8 -3 1/2 B-Sol. 7.90 8.00 11/32 2 3/4 1/32 18.8
45V850E E 7/8 -3 1/2 B-Sol. 8.40 8.50 11/32 2 3/4 1/32 21.9
45V900E E 7/8 -3 1/2 B-Sol. 8.90 9.00 11/32 2 3/4 1/32 24.2
45V925E E 7/8 -3 1/2 B-Sol. 9.15 9.25 11/32 2 3/4 1/32 25.8
45V975E E 7/8 -3 1/2 B-Sol. 9.65 9.75 11/32 2 3/4 1/32 28.2
45V1030E E 7/8 -3 1/2 B-Sol. 10.20 10.30 11/32 2 3/4 1/32 29.8
45V1090E E 7/8 -3 1/2 B-Web 10.80 10.90 11/32 2 3/4 1/32 30.6
45V1130E E 7/8 -3 1/2 A-Arm 11.20 11.30 9/32 2 3/4 1/32 31.9
45V1180E E 7/8 -3 1/2 B-Web 11.70 11.80 11/32 2 3/4 1/32 33.0
45V1250E E 7/8 -3 1/2 A-Arm 12.40 12.50 9/32 2 3/4 1/32 36.4
45V1320E E 7/8 -3 1/2 A-Arm 13.10 13.20 9/32 2 3/4 1/32 38.2
45V1400E E 7/8 -3 1/2 A-Arm 13.90 14.00 9/32 2 3/4 1/32 40.2
45V1500E E 7/8 -3 1/2 ArArm 14.90 15.00 9/32 2 3/4 1/32 43.5
45V1600E E 7/8 -3 1/2 A-Arm 15.90 16.00 9/32 2 3/4 1/32 44.6
45V1870E E 7/8 -3 1/2 A-Arm 18.60 1870 3/32 2 3/4 7/32 53.6
45V2120E E 7/8 -3 1/2 A-Arm 21.10 21.20 3/32 2 3/4 7/32 62.5
45V2360F F 1-4 C-Arm 23.50 23.60 15/32 3 3/4 7/32 83.5
45V2800F F 1-4 C-Arm 27.90 28.00 15/32 3 3/4 7/32 126
45V3150F F 1-4 C-Arm 31.40 31.50 15/32 3 3/4 7/32 148
45V3750F F 1-4 C-Arm 37.40 37.50 15/32 3 3/4 7/32 170
45V5000J J 1 1/2-4 1/2 C-Arm 49.90 50.00 3/4 4 5/8 13/16 248
Table 1
Part No. Bushing Bore Range Type* D.D.

“5V” Belts

 O.D. E L M Wt.Less

Bushing
5 GROOVES, F = 3 3/4′ ‘ 6 GROOV ES，F = 47/16″
55V440SD SD 1/2 “-2” E-Sol. 4.30″ 4.40″ 2 19/32″ 1 13/16″ 21/32″ 8.9
55V465SD SD 1/2-2 E-Sol. 4.55 4.65 219/32 1 13/16 21/32 9.2
55V490SD SD 1/2-2 A-Sol. 4.80 4.90 21/32 1 13/16 1 9/32 10.1
55V520SD SD 1/2-2 A-Sol. 5.10 5.20 21/32 1 13/16 1 9/32 10.8
55V550SD SD 1/2-2 A-Sol. 5.40 5.50 21/32 1 13/16 1 9/32 12.0
55V590SK SK 1/2 -2 5/8 A-Sol. 5.80 5.90 17/32 1 15/16 1 9/32 13.2
55V630SK SK 1/2 -2 5/8 A-Sol. 6.20 6.30 17/32 1 15/16 1 9/32 15.9
55V670SF SF 1/2-2 15/16 A-Sol. 6.60 6.60 17/32 2 1/16 1 5/32 18.6
55V710SF SF 1/2-2 15/16 A-Sol. 7.00 7.10 17/32 2 1/16 1 5/32 21.7
55V750SF SF 1/2-2 15/16 A-Sol. 7.40 7.50 17/32 2 1/16 1 5/32 22.8
55V800E E 7/8 -3 1/2 A-Sol. 7.90 8.00 19/32 2 3/4 13/32 23.7
55V850E E 7/8 -3 1/2 A-Sol. 8.40 8.50 19/32 2 3/4 13/32 24.8
55V900E E 7/8 -3 1/2 A-Sol. 8.90 9.00 19/32 2 3/4 13/32 26.3
55V925E E 7/8 -3 1/2 A-Sol. 9.15 9.25 19/32 2 3/4 13/32 28.2
55V975E E 7/8 -3 1/2 A-Sol. 9.65 9.75 19/32 2 3/4 13/32 32.0
55V1030E E 7/8 -3 1/2 A-Web 10.20 10.30 19/32 2 3/4 13/32 33.0
55V1090E E 7/8 -3 1/2 A-Web 10.80 10.90 19/32 2 3/4 13/32 35.0
55V1130E E 7/8 -3 1/2 A-Arm 11.20 11.30 19/32 2 3/4 13/32 36.5
55V1180E E 7/8 -3 1/2 A-Arm 11.70 11.80 19/32 2 3/4 13/32 38.0
55V1250E E 7/8 -3 1/2 A-Arm 12.40 12.50 19/32 2 3/4 13/32 40.8
55 V1320 E E 7/8 -3 1/2 A-Arm 13.10 13.20 19/32 2 3/4 13/32 42.3
55V1400E E 7/8 -3 1/2 A-Arm 13.90 14.00 19/32 2 3/4 13/32 44.6
55 V1500 E E 7/8 -3 1/2 A-Arm 14.90 15.00 19/32 2 3/4 13/32 48.2
55 V1600 E E 7/8 -3 1/2 A-Arm 15.90 16.00 19/32 2 3/4 13/32 51.2
55V1870F F 1-4 OArm 18.60 18.70 3/32 3 3/4 3/32 70.2
55V2120F F 1-4 D-Arm 21.10 21.20 1/32 3 3/4 1/32 89.0
55V2360F F 1-4 D-Arm 23.50 23.60 1/32 3 3/4 1/32 105
55V2800F F 1-4 D-Arm 27.90 28.00 1/32 3 3/4 1/32 123
55V3150J J 1 1/2-4 1/2 C-Arm 31.40 31.50 7/16 4 5/8 7/16 151
55V3750J J 1 1/2-4 1/2 C-Arm 37.40 37.50 7/16 4 5/8 7/16 190
55V5000J J 1 1/2-4 1/2 C-Arm 49.90 50.00 7/16 4 5/8 7/16 278
Table 2
65V440SD SD 1/2-2 E-Sol. 4.30 4.40 3 25/32 1 13/16 21/32 10.1
65V465SD SD 1/2-2 E-Sol. 4.55 4.65 3 25/32 1 13/16 21/32 10.4
65V490SD SD 1/2-2 A-Sol. 4.80 4.90 21/32 1 13/16 1 31/32 11.2
65V520SD SD 1/2-2 A-Sol. 5.10 5.20 21/32 1 13/16 1 31/32 12.1
65V550SD SD 1/2-2 A-Sol. 5.40 5.50 21/32 1 13/16 1 31/32 13.3
65V590SK SK 1/2 -2 5/8 A-Sol. 5.80 5.90 17/32 1 15/16 1 31/32 14.6
65V630SK SK 1/2 -2 5/8 A-Sol. 6.20 6.30 17/32 1 15/16 1 31/32 17.4
65V670SF SF 1/2-2 15/16 A-Sol. 6.60 6.70 25/32 2 1/16 1 19/32 20.0
65V710SF SF 1/2-2 15/16 A-Sol. 7.00 7.10 25/32 2 1/16 1 19/32 21.9
65V750SF SF 1/2-2 15/16 A-Sol. 7.40 7.50 25/32 2 1/16 1 19/32 23.4
65V800E E 7/8 -3 1/2 A-Sol. 7.90 8.00 27/32 2 3/4 27/32 24.2
65V850E E 7/8 -3 1/2 A-Sol. 8.40 8.50 27/32 2 3/4 27/32 26.7
65V900E E 7/8 -3 1/2 A-Sol. 8.90 9.00 27/32 2 3/4 27/32 28.5
65V925E E 7/8 -3 1/2 A-Sol. 9.15 9.25 27/32 2 3/4 27/32 30.2
65V975E E 7/8 -3 1/2 A-Sol. 9.65 9.75 27/32 2 3/4 27/32 33.8
65V1030E E 7/8 -3 1/2 A-Web 10.20 10.30 27/32 2 3/4 27/32 36.6
65V1090E E 7/8 -3 1/2 A-Web 10.80 10.90 27/32 2 3/4 27/32 38.1
65V1130E E 7/8 -3 1/2 A-Arm 11.20 11.30 27/32 2 3/4 27/32 39.8
65V1180E E 7/8 -3 1/2 A-Web 11.70 11.80 27/32 2 3/4 27/32 41.2
65V1250F F 1-4 B-Arm 12.40 12.50 23/32 3 3/4 1/32 58.2
65V1320F F 1-4 B-Arm 13.10 13.20 23/32 3 3/4 1/32 64.0
65V1400F F 1-4 B-Arm 13.90 14.00 23/32 3 3/4 1/32 66.0
65V1500F F 1-4 B-Arm 14.90 15.00 23/32 3 3/4 1/32 68.0
65V1600F F 1-4 B-Arm 15.90 16.00 23/32 3 3/4 1/32 77.5
65V1870F F 1-4 D-Arm 18.60 18.70 1/32 3 3/4 23/32 85.8
65V2120F F 1-4 D-Arm 21.10 21.20 1/32 3 3/4 23/32 96.0
65V2360J J 1 1/2-4 1/2 C-Arm 23.50 23.60 1/8 4 5/8 1/16 113
65V2800J J 1 1/2-4 1/2 C-Arm 27.90 28.00 1/8 4 5/8 1/16 148
65V3150J J 1 1/2-4 1/2 C-Arm 31.40 31.50 1/8 4 5/8 1/16 183
65V3750J J 1 1/2-4 1/2 C-Arm 37.40 37.50 1/8 4 5/8 1/16 218
65V5000M M 2-5 1/2 C-Arm 49.90 50.00 1 3/32 6 3/4 1 7/32 310
Table 1
Part No. Bushing Bore Range Type* D.D.”5V”Belts O.D. E L M Wt.Less

Bushing
8 GROOVES, F = 513/- 6″ 10 GROOVES, F = 7 3/16″
85V710SF SF 1/2 “-2 15/16” A-Sol. 7.00 7.10 1 9/32″ 2 1/16″ 2 15/32″ 24.7
85V750SF SF 1/2-2 15/16 A-Sol. 7.40 7.50 1 9/32 2 1/16 2 15/32 28.2
85V800E E 7/8-3 1/2 A-Sol. 7.90 8.00 1 11/32 2 3/4 1 23/32 35.0
85V850E E 7/8-3 1/2 A-Sol. 8.40 8.50 1 11/32 2 3/4 1 23/32 37.2
85V900E E 7/8-3 1/2 A-Sol. 8.90 9.00 1 11/32 2 3/4 1 23/32 42.0
85V925F F 1-4 A-Sol. 9.15 9.25 1 7/32 3 3/4 27/32 44.0
85V975F F 1-4 A-Sol. 9.65 9.75 1 7/32 3 3/4 27/32 48.4
85V1030F F 1-4 A-Sol. 10.20 10.30 1 7/32 3 3/4 27/32 58.4
85V1090F F 1-4 A-Sol. 10.80 10.90 1 7/32 3 3/4 27/32 63.1
85V1130F F 1-4 A-Sol. 11.20 11.30 1 7/32 3 3/4 27/32 67.0
85V1180F F 1-4 A-Web 11.70 11.80 1 7/32 3 3/4 27/32 71.0
85V1250F F 1-4 A-Arm 12.40 12.50 1 7/32 3 3/4 27/32 76.0
85V1320F F 1-4 A-Arm 13.10 13.20 1 7/32 3 3/4 27/32 80.0
85V1400F F 1-4 A-Arm 13.90 14.00 1 7/32 3 3/4 27/32 81.0
85V1500F F 1-4 A-Arm 14.90 15.00 1 7/32 3 3/4 27/32 83.0
85V1600F F 1-4 A-Arm 15.90 16.00 1 7/32 3 3/4 27/32 90.0
85V1870J J 1 1/2-4 1/2 A-Arm 18.60 18.70 1/8 4 5/8 1 1/16 120
85V2120J J 11/2-4 1/2 A-Arm 21.10 21.20 1/8 4 5/8 1 1/16 152
85V2360J J 11/2-4 1/2 A-Arm 23.50 23.60 1/8 4 5/8 1 1/16 185
85V2800J J 11/2-4 1/2 A-Arm 27.90 28.00 1/8 4 5/8 1 1/16 210
85V3150M M 2-5 1/2 B-Arm 31.40 31.50 11/32 6 3/4 1 9/32 242
85V3750M M 2-5 1/2 B-Arm 37.40 37.50 11/32 6 3/4 1 9/32 285
85V5000M M 2-5 1/2 B-Arm 49.90 50.00 11/32 6 3/4 1 9/32 408
Table 2
105V800E E 7/8-3 1/2 A-Sol. 7.90 8.00 2 3/32 2 3/4 2 11/32 37.6
105V850E E 7/8-3 1/2 A-Sol. 8.40 8.50 2 3/32 2 3/4 2 11/32 44.5
105V900F F 1-4 A-Sol. 8.90 9.00 1 3132 3 3/4 1 15/32 51.3
105V925F F 1-4 A-Sol. 9.15 9.25 1 31/32 3 3/4 1 15/32 53.0
105V975F F 1-4 A-Sol. 9.65 9.75 1 31/32 3 3/4 1 15/32 56.0
105V1030F F 1-4 A-Sol. 10.20 10.30 1 31/32 3 3/4 1 15/32 64.0
105V1090F F 1-4 A-Sol. 10.80 10.90 1 31/32 3 3/4 1 15/32 72.0
105V1130F F 1-4 A-Sol. 11.20 11.30 1 31/32 3 3/4 1 15/32 77.0
105V1180F F 1-4 A-Web 11.70 11.80 1 31/32 3 3/4 1 15/32 81.0
105V1250J J 11/2-4 1/2 A-Web 12.40 12.50 2 1/8 4 5/8 7/16 112
105V1320J J 11/2-4 1/2 A-Web 13.10 13.20 2 1/8 4 5/8 7/16 116
105V1400J J 11/2-4 1/2 A-Arm 13.90 14.00 2 1/8 4 5/8 7/16 130
105V1500J J 11/2-4 1/2 A-Arm 14.90 15.00 2 1/8 4 5/8 7/16 138
105V1600J J 11/2-4 1/2 A-Arm 15.90 16.00 2 1/8 4 5/8 7/16 146
105V1870J J 11/2-4 1/2 A-Arm 18.60 18.70 1/8 4 5/8 2 7/16 157
105V2120J J 11/2-4 1/2 A-Arm 21.10 21.20 1/8 4 5/8 2 7/16 168
105V2360M M 2-5 1/2 A-Arm 23.50 23.60 11/32 6 3/4 3/32 213
105V2800M M 2-5 1/2 A-Arm 27.90 28.00 11/32 6 3/4 3/32 240
105V3150M M 2-5 1/2 A-Arm 31.40 31.50 11/32 6 3/4 3/32 275
105V3750M M 2-5 1/2 A-Arm 37.40 37.50 11/32 6 3/4 3/32 315
105V5000M M 2-5 1/2 A-Arm 49.90 50.00 11/32 6 3/4 3/32 458
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “5V QD Sheaves for 5V Belts”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

TB Gripbelt Sheaves with Split Taper Bushings

TB Gripbelt Sheaves with Split Taper Bushings

BKH Cast Iron Sheaves with split taper bushing

BKH Cast Iron Sheaves with split taper bushing

Poly v sheaves Type 15

Poly v sheaves Type 15

Poly v sheaves 6 8 10 Grooves

Poly v sheaves 6 8 10 Grooves

5D series five-groove QD bushed sheaves

3V QD Sheaves for 3V Belts

,
Cast Iron QD Sheave

B series QD Sheaves for A and B Belts

,
AB Taper bushed sheaves

D Taper Bushed Sheaves

Finished bore sheaves
