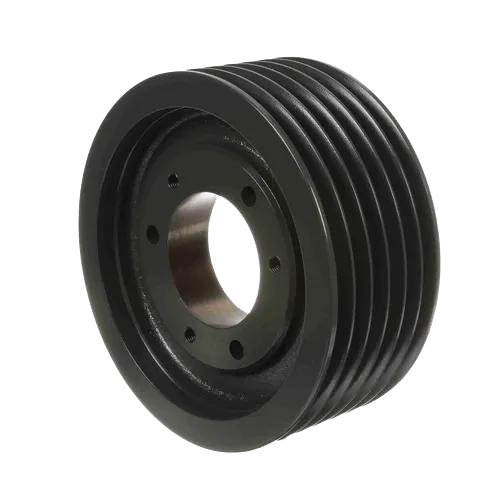

5V series six-groove QD (quick detachable) bushed sheaves(5V Series Six-Groove QD Sheaves) are working with 5V, 5VX, banded 5V, and banded 5VX belts. They range from 4.40″ to 50.00″ in diameter. Depending on the sheave size. They are working with an SD, SK, SF, E, F, or J QD bushing, which we also stock. Most of our six-groove 5V QD sheaves are making from a high-strength grade 35 cast iron, with phosphate-coating, and are painting for anti-corrosion. Balanced at the factory for smooth machinery operation.
5V Series Six-Groove QD Sheaves Size Chart
Size
|
Bushing Type
|
Type
|
Pitch Diameter
|
Outside Diameter
|

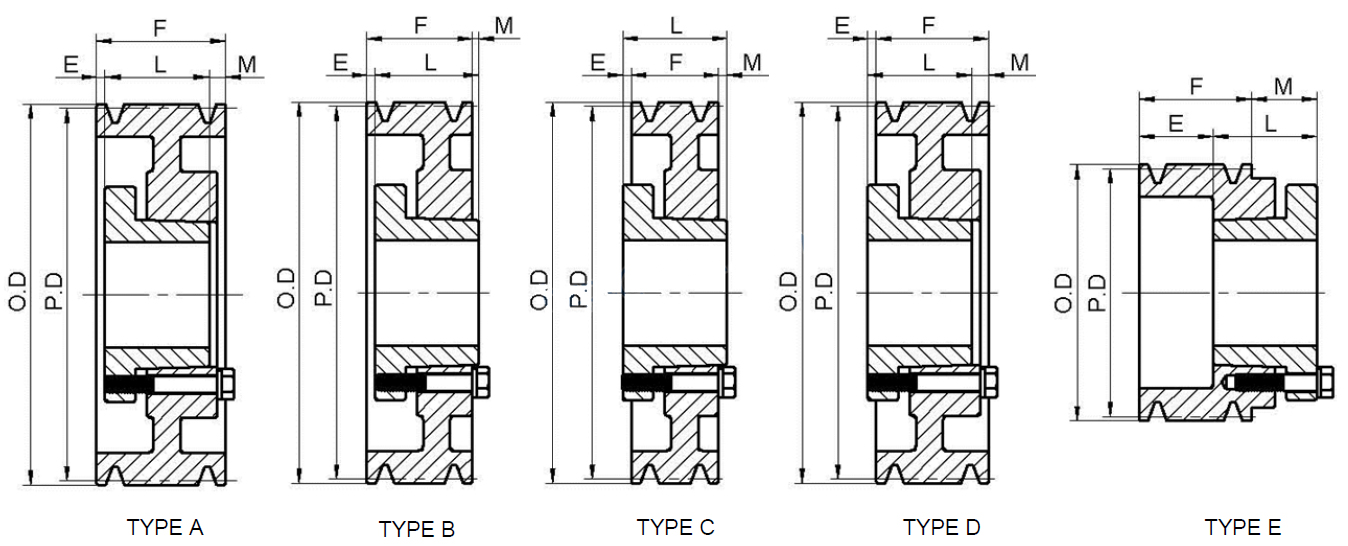

(E)
|
(F)
|
(L)
|
(M)
|
Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|
65V440SD | SD | E | 4.30″ | 4.40″ | 3 25/32″ | 4 7/16″ | 1 13/16″ | 21/32″ | 10.1 |
65V465SD | SD | E | 4.55″ | 4.65″ | 3 25/32″ | 4 7/16″ | 1 13/16″ | 21/32″ | 10.4 |
65V490SD | SD | A | 4.80″ | 4.90″ | 21/32″ | 4 7/16″ | 1 13/16″ | 1 31/32″ | 11.2 |
65V520SD | SD | A | 5.10″ | 5.20″ | 21/32″ | 4 7/16″ | 1 13/16″ | 1 31/32″ | 12.1 |
65V550SD | SD | A | 5.40″ | 5.50″ | 21/32″ | 4 7/16″ | 1 13/16″ | 1 31/32″ | 13.3 |
65V590SK | SK | A | 5.80″ | 5.90″ | 17/32″ | 4 7/16″ | 1 15/16″ | 1 31/32″ | 14.6 |
65V630SK | SK | A | 6.20″ | 6.30″ | 17/32″ | 4 7/16″ | 1 15/16″ | 1 31/32″ | 17.4 |
65V670SF | SF | A | 6.60″ | 6.60″ | 25/32″ | 4 7/16″ | 2 1/16″ | 1 19/32″ | 20.0 |
65V710SF | SF | A | 7.00″ | 7.10″ | 25/32″ | 4 7/16″ | 2 1/16″ | 1 19/32″ | 21.9 |
65V750SF | SF | A | 7.40″ | 7.50″ | 25/32″ | 4 7/16″ | 2 1/16″ | 1 19/32″ | 23.4 |
65V800E |
E | A | 7.90″ | 8.00″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 24.2 |
65V850E | E | A | 8.40″ | 8.50″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 26.7 |
65V900E | E | A | 8.90″ | 9.00″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 28.5 |
65V925E | E | A | 9.15″ | 9.25″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 30.2 |
65V975E | E | A | 9.65″ | 9.75″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 33.8 |
65V1030E | E | A | 10.20″ | 10.30″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 36.6 |
65V1090E | E | A | 10.80″ | 10.90″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 38.1 |
65V1130E | E | A | 11.20″ | 11.30″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 39.8 |
65V1180E | E | A | 11.70″ | 11.80″ | 27/32″ | 4 7/16″ | 2 3/4″ | 27/32″ | 41.2 |
65V1250F | F | B | 12.40″ | 12.50″ | 23/32″ | 4 7/16″ | 3 3/4″ | 1/32″ | 58.2 |
65V1320F | F | B | 13.10″ | 13.20″ | 23/32″ | 4 7/16″ | 3 3/4″ | 1/32″ | 64.0 |
65V1400F | F | B | 13.90″ | 14.00″ | 23/32″ | 4 7/16″ | 3 3/4″ | 1/32″ | 66.0 |
65V1500F | F | B | 14.90″ | 15.00″ | 23/32″ | 4 7/16″ | 3 3/4″ | 1/32″ | 68.0 |
65V1600F | F | B | 15.90″ | 16.00″ | 23/32″ | 4 7/16″ | 3 3/4″ | 1/32″ | 77.5 |
65V1870F | F | D | 18.60″ | 18.70″ | 1/32″ | 4 7/16″ | 3 3/4″ | 23/32″ | 85.8 |
65V2120F | F | D | 21.10″ | 21.20″ | 1/32″ | 4 7/16″ | 3 3/4″ | 23/32″ | 96.0 |
65V2360J | J | C | 23.50″ | 23.60″ | 1/8″ | 4 7/16″ | 4 5/8″ | 1/16″ | 113.0 |
65V2800J | J | C | 27.90″ | 28.00″ | 1/8″ | 4 7/16″ | 4 5/8″ | 1/16″ | 148.0 |
65V3150J | J | C | 31.40″ | 31.50″ | 1/8″ | 4 7/16″ | 4 5/8″ | 1/16″ | 183.0 |
65V3750J | J | C | 37.40″ | 37.50″ | 1/8″ | 4 7/16″ | 4 5/8″ | 1/16″ | 218.0 |
65V5000M | M | C | 49.90″ | 50.00″ | 1 3/32″ | 4 7/16″ | 6 3/4″ | 1 7/32″ | 310.0 |
